Cronomicon

2 Core Concepts

Five ideas explain almost everything in Cronomicon: the five primitives, the dual-source model, the source-of-truth rule, scopes, and the two executors on one run lifecycle. Spend ten minutes here and the rest of the product reads naturally.

2.1 The five composable primitives

Work in Cronomicon is built from five primitives. Each layer supplies context the layer below it deliberately doesn't know:

In one line: Job = Script + Schedule(s) + Env Vars + Scope, and Workflow = ordered Jobs + branching + inter-job data.

2.2 The dual-source model: Git or Cronomicon

Every Job, Workflow, Schedule and Scope can live in one of two places, chosen per-definition:

• Scripts are always Git-only. The in-app Compose view reuses a Git Script; it never authors the script body.
• Git-source definitions are read-only over the API — editing one in-app returns HTTP 409; you edit it in Git and re-sync.
• Cronomicon-source definitions are operator-composed in-app and are never touched by Git sync.

2.3 The source-of-truth rule

There is exactly one documented exception: the per-instance “disable workflow” toggle. You may disable any workflow — even a Git one — from the UI as an emergency override, without editing its YAML. (See §7.)

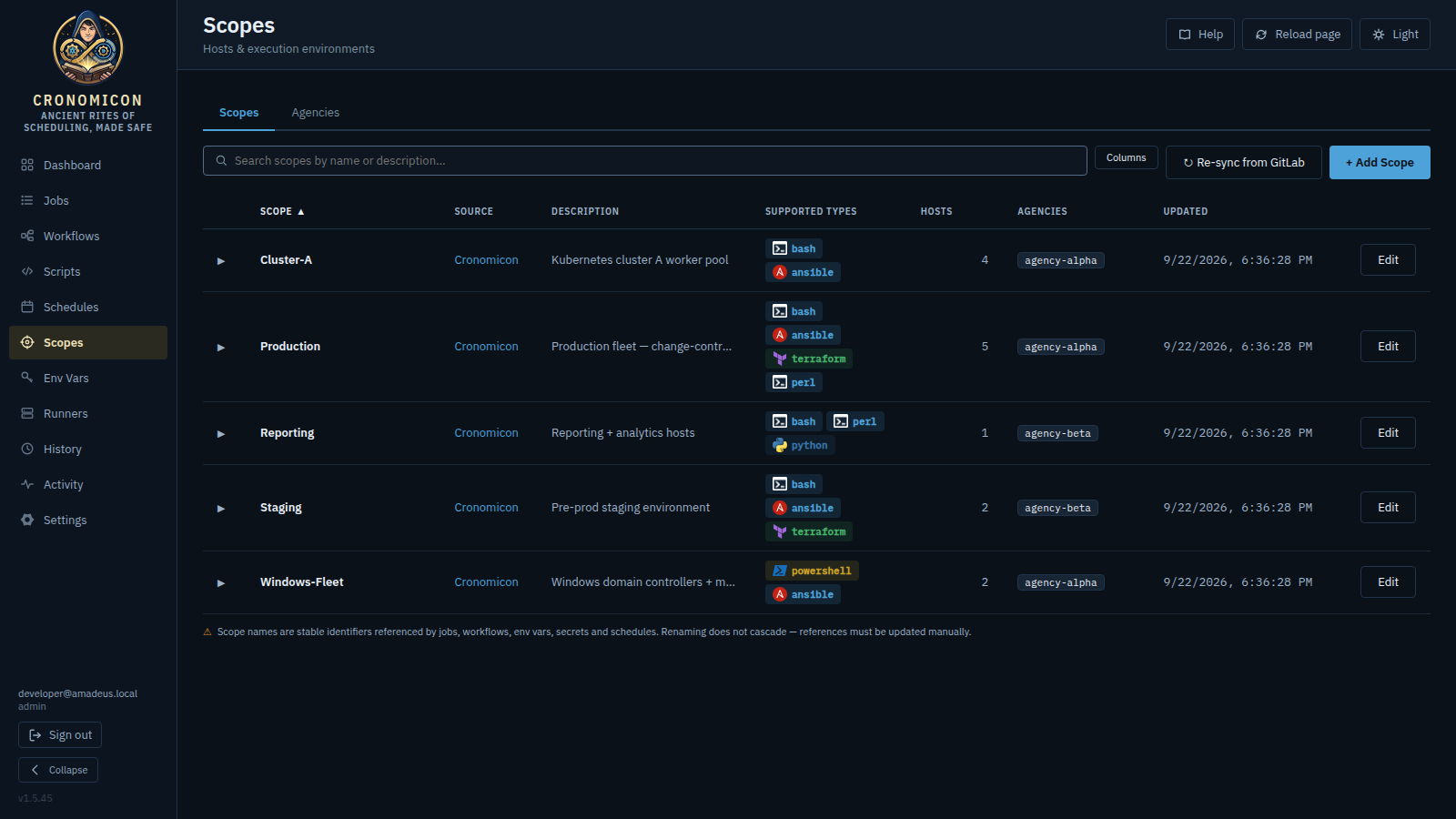

2.4 Scopes & inventory

A scope is a named target environment — a list of hosts plus the executor (run) types it supports. Examples: Production, Staging, Cluster-A. A scope's declared capability is advisory: you may run a job whose type the scope doesn't advertise — the Run dialog shows a soft warning but does not block you.

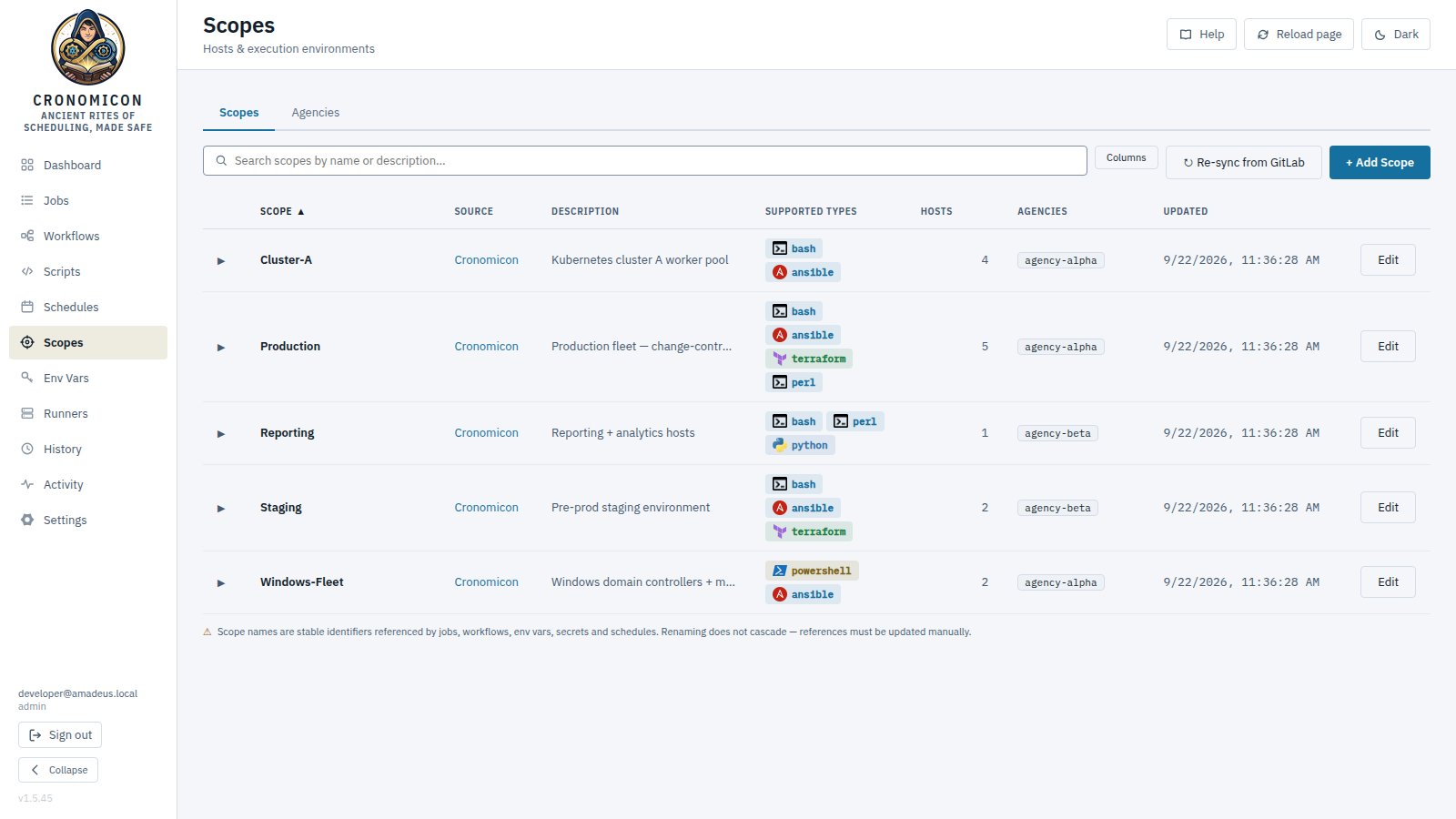

Scopes live on their own top-level page (/scopes). Beyond a host list and run-type capability, a scope can carry an Ansible inventory, either git-synced from an inventory/*.ini or authored in-app on an Cronomicon-source scope. The raw inventory is what actually executes (ansible-playbook -i); Cronomicon parses it into an advisory, non-authoritative projection (groups + host vars) shown read-only, degrading loudly to a “Preview unavailable” notice rather than guessing. A scope may also be bound to an Agency — a network-isolation zone — so only a runner in that agency can execute its jobs (an unbound scope uses the general pool). The full Scopes view reference is in §11.

2.5 Two executors, one run lifecycle

Every run is tagged with an executor that decides where the work physically happens. Both executors share the same lifecycle, logging, redaction, kill mechanism and concurrency cap — only the location differs.

2.6 Runs, status & trace IDs

A run is a single execution of a job. Each run has a backend-minted trace ID (a UUIDv7, shown in compact middle-ellipsis form like 3c4d-74f7…d5474), start/complete timestamps, a duration, an exit code, and a status. See Appendix D for the complete status & color vocabulary; in short:

queued running success warning danger / failed skipped

A run stopped by an operator without saying what the stop meant surfaces as danger with reason killed — that is the unclassified case. A stop can instead be recorded as Success, Warning or Failed (§6.6), in which case the run carries that status and a Stopped marker showing a person ended it. A warning is a partial outcome — e.g. a scope fan-out where some hosts succeeded and some failed.

2.7 Concurrency control

• Global cap (maxConcurrent) — the limit on simultaneous queued+running runs. Set in Settings → General → Max Concurrent Jobs; the scheduler falls back to 5 when unset (the Settings field's minimum is 1). When the cap is reached a cron fire is skipped and a manual run is rejected with 409.
• Per-job overlap policy — a concurrency_key (default source/jobname) plus a policy: Allow (default), Forbid, or Skip. A Forbid-suppressed fire is recorded once per blocking episode as a terminal skipped run, so it doesn't silently vanish.

3 Getting Started

In most production deployments you simply browse to the Cronomicon URL and your existing SSO logs you straight in. This section covers what you'll see on first login, how to find your identity and role, and a tour of the sidebar.

3.1 Signing in

Whoever deployed Cronomicon picked one of two authentication modes; you experience whichever your deployment uses.

3.2 Finding your identity & role

The bottom-left of the sidebar always shows your email, your roles (comma-joined, e.g. “admin, operator”), the app version, and a Sign out button. If your roles line is empty, none of your AD groups have been mapped to a role yet — ask an administrator (see §4).

3.3 Orientation tour — the 11-item sidebar

Notice the recurring “list + hidden builder” pattern: Jobs → Compose and Jobs → Publish to GitLab, Schedules → Schedule Builder, Workflows → Workflow Editor. Navigation is the same for everyone — every item is visible to all signed-in users; the actions inside are what's gated.

Collapsing the sidebar

A Collapse control sits at the foot of the sidebar, under Sign out. It folds the nav from its full width down to a 60px icons-only rail — worth about 135px of extra table width on the wide views (Jobs, History, the agency matrix):

• Nav items keep their centred icons and drop their labels; each label moves to the native tooltip and to aria-label, so the collapsed rail stays fully navigable by screen reader.
• The wordmark's lettering is hidden and the emblem stays, and the footer hides your email, roles and the version string — Sign out becomes an icon button carrying your email in its tooltip.
• The choice persists in your browser, so a collapse survives reloads and new tabs. Click the control again (now labelled Expand sidebar) to restore it.

Four things the app says have one spelling each, held by a shared component so they cannot drift apart — you will notice them everywhere:

• Copy — one copy control, always a real button with a name, always an announced confirmation that waits for the browser, so it never claims success when the write was refused. Where the value is the thing you click (a runner id, a key fingerprint) it stays monospace and readable while still being one tab stop. The control hides itself when the browser withholds clipboard access.
• Success feedback — one toast, announced to a screen reader. Even the Runners page's “connection verified” is a toast, not a banner: banners are for conditions that persist and need dismissing, and “connection verified” is neither.
• Loading — table-shaped views reserve their layout with a row skeleton instead of popping in and shifting the page under your cursor; everything else (forms, detail panes, inline values) shows one consistent inline indicator.
• Expand / collapse — one ▼ / ▶ disclosure triangle, the same one your OS uses. The other pair (▲/▼) is reserved for sort direction, so two meanings never share one pair of arrows. A dropdown caret is still a caret; it is not a disclosure.

Motion is opt-out at the operating-system level: with “reduce motion” enabled in your OS accessibility settings, the app's transitions, animations and its one smooth scroll all stop — the navigation still happens, it simply jumps instead of gliding. The running-status dot keeps its colour and glow, so an in-flight run stays distinguishable with motion off.

3.4 Arranging a table's columns

Every catalog in Cronomicon — Jobs, Workflows, Scripts, Schedules, History, Scopes, Env Vars, Runners, SSH Targets — carries a Columns button beside its search and filter controls. It opens a list of every column in that table, where you can reorder them and show or hide them. A nine-column table showing the three things your team actually works from is a different table to read.

• Reorder by dragging a row up or down inside the list, or with the ▲ / ▼ buttons on each row. The buttons are not a lesser path — they are the keyboard and screen-reader route to exactly the same thing, and each move is announced.
• Show or hide with the checkbox on each row. A hidden column is gone from the table entirely, not merely blanked, so the table reflows into the space it frees.
• The first column, and a trailing actions column, are fixed. They appear in the list greyed, marked Always first or Always last, rather than being left out — so the constraint is visible rather than mysterious. A catalog whose leading column could be hidden would stop being scannable, and there would be no way back to a row you can no longer identify.
• Reset to defaults puts the table back — the arrangement, the visibility and any column widths you have dragged. “Put the table back” is one thought, so it is one button.

Column order and visibility are yours; sorting is not always. On most tables the sort is applied in your browser to the rows on screen. On the two History tables it is applied by the server across the whole history before the page is cut, which is why a sort there can change which rows appear at all. Arranging the columns never changes either.

Dragging a column's right-hand edge to resize it is a separate, older control and is unaffected — every width you have already set is kept.

4 Authentication, Roles & Permissions

Cronomicon does not store roles per user. Your access is derived at login from your Active Directory groups via operator-managed access grants — each grant names an AD group, a role, and where that role applies. Read the boxed callout below carefully — it is the single most important thing to understand about access.

4.1 How your role is determined

1. Your identity provider (via the trusted-header proxy or the OIDC claims) supplies your directory group memberships as a Remote-Groups header / groups claim.
2. Cronomicon looks up each group in the Access Grants list (Settings → Users & Access). Each grant says: this AD group has this role, here — a specific agency, or All scopes (unrestricted). Matching is case-sensitive.
3. Every matching grant contributes its role on its own scopes — you can hold several grants at once, but a permission and a scope must come from the same grant. An operator on Finance and a viewer on Tax can trigger Finance jobs and only look at Tax ones.
4. A user whose groups match no grant gets no access — the honest default denies. Changes take effect on the user's next login (and a grant edit signs everyone else out immediately).

The four built-in roles are Admin, Approver, Operator, Viewer (stored lowercase, shown capitalized). Roles are data: admins can define custom roles in the Roles card, and the built-ins are editable but not deletable.

4.2 Roles and their permissions

The Settings UI and the /api/v1/roles endpoint publish the permissions of each role as data — the Roles card is where an admin edits them or defines new roles. There are seven permissions, and every one of them is enforced server-side (a caller whose role lacks it gets 403, and the denial names the missing permission). The built-ins ship as:

Every column is enforced by the server. Publish is the only permission a built-in other than Admin holds beyond trigger/kill. Compose (all in-app authoring — Jobs, Workflows and Schedules) remains admin-only. Viewer holds no permissions at all — correct, not an oversight: a viewer's access is visibility, resolved from its granted scopes, and visibility is not a verb; the Roles card says so in place. There is no “view” permission because it could have no enforcement point, and a permission that cannot be enforced must not be displayed as though it were.

4.3 Scope-based access

Where a role applies comes from its access grant (Settings → Users & Access → Access Grants): each grant names an agency — which expands to that agency's scopes at login — or All scopes (unrestricted). Your visibility is the union across all your grants; your authority on any given scope is only what the grant covering that scope carries. “Operator, but only for Tax” is one row.

This control filters which runs you see in History and — — is enforced on the manual-run write path: POST /api/v1/jobs/{jobId}/run returns 403 “you do not have access to scope <X>” when the effective scope (the job's bound scope, or a per-trigger scope override) is not in your set. An unscoped job is not a free pass: if you are scope-restricted you must bind one of your scopes at trigger time — the Run dialog opens on the scope picker when a choice is required — and only an unrestricted operator may run it unbound on the general pool. The check also gates reading a run's details and log, reading a workflow run, and cancelling a workflow run (an out-of-scope resource returns 403); and it is enforced on reads across the board — an out-of-scope job (GET /jobs/{id}) or first-class schedule returns 404 instead of exposing its script body and plaintext env, and out-of-scope rows are dropped from the Jobs, Workflow-run and Schedule listings. Your Env Vars and Secrets lists are likewise scope-filtered: you see only your-scope and global rows. (Separately, a per-run host subset whose host isn't a member of the bound scope is rejected 422 scope_membership — see §6.3.)

An admin editing an access grant, a role, or agency membership immediately revokes all other active sessions — every other signed-in user must re-authenticate on their next request, so a tightened restriction takes hold at once rather than at their next 8-hour session expiry. The admin who made the change keeps their own session.

4.4 CSRF protection

Every state-changing request must echo the cronomicon_csrf cookie in an X-CSRF-Token header; the SPA does this for you. A mismatch is rejected with 403 “missing or invalid CSRF token.” If you ever hit that, reload the page so a fresh token is issued (it usually means a stale tab or cleared cookies). Runner agents use bearer-token auth and are exempt from CSRF.

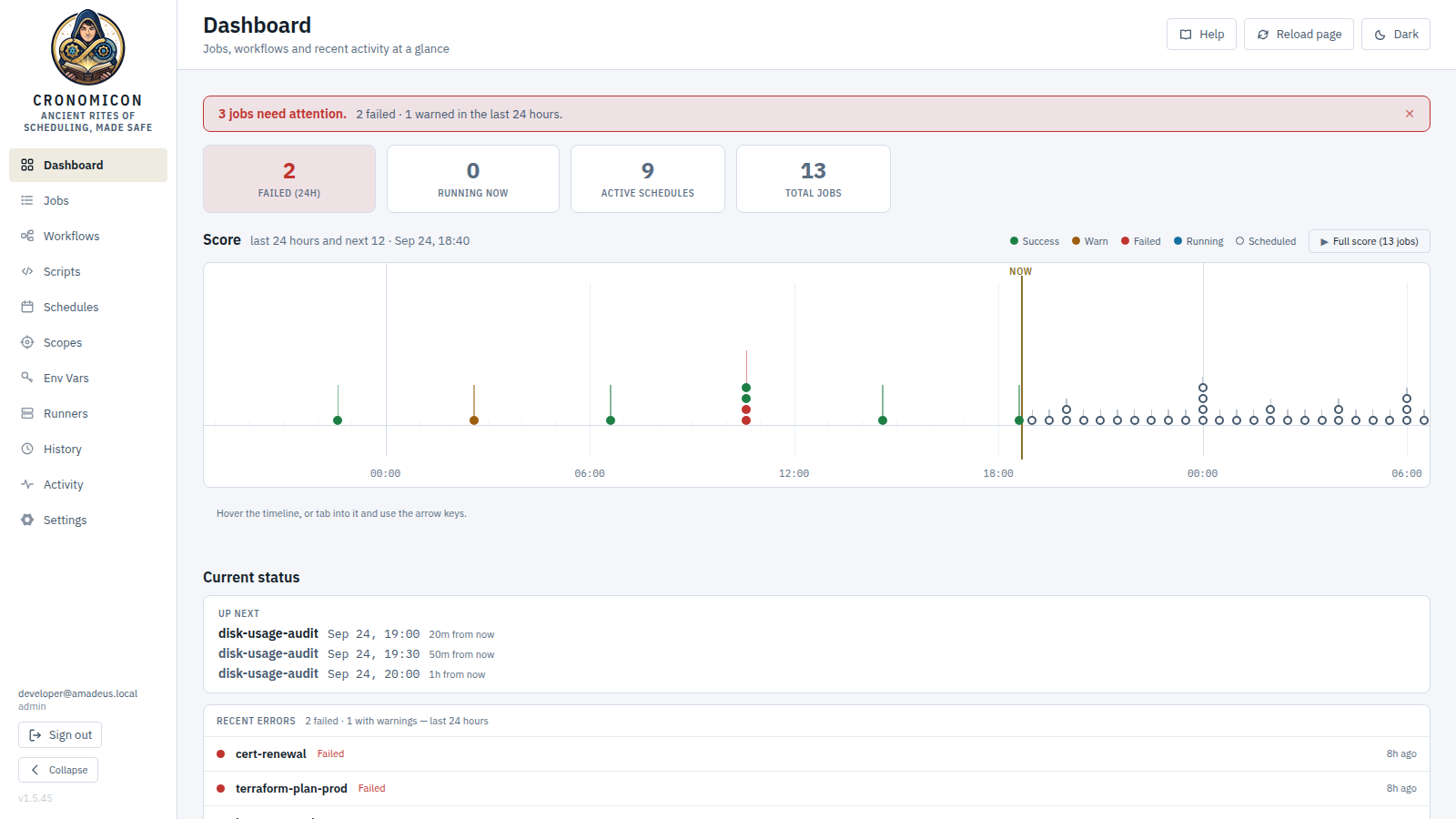

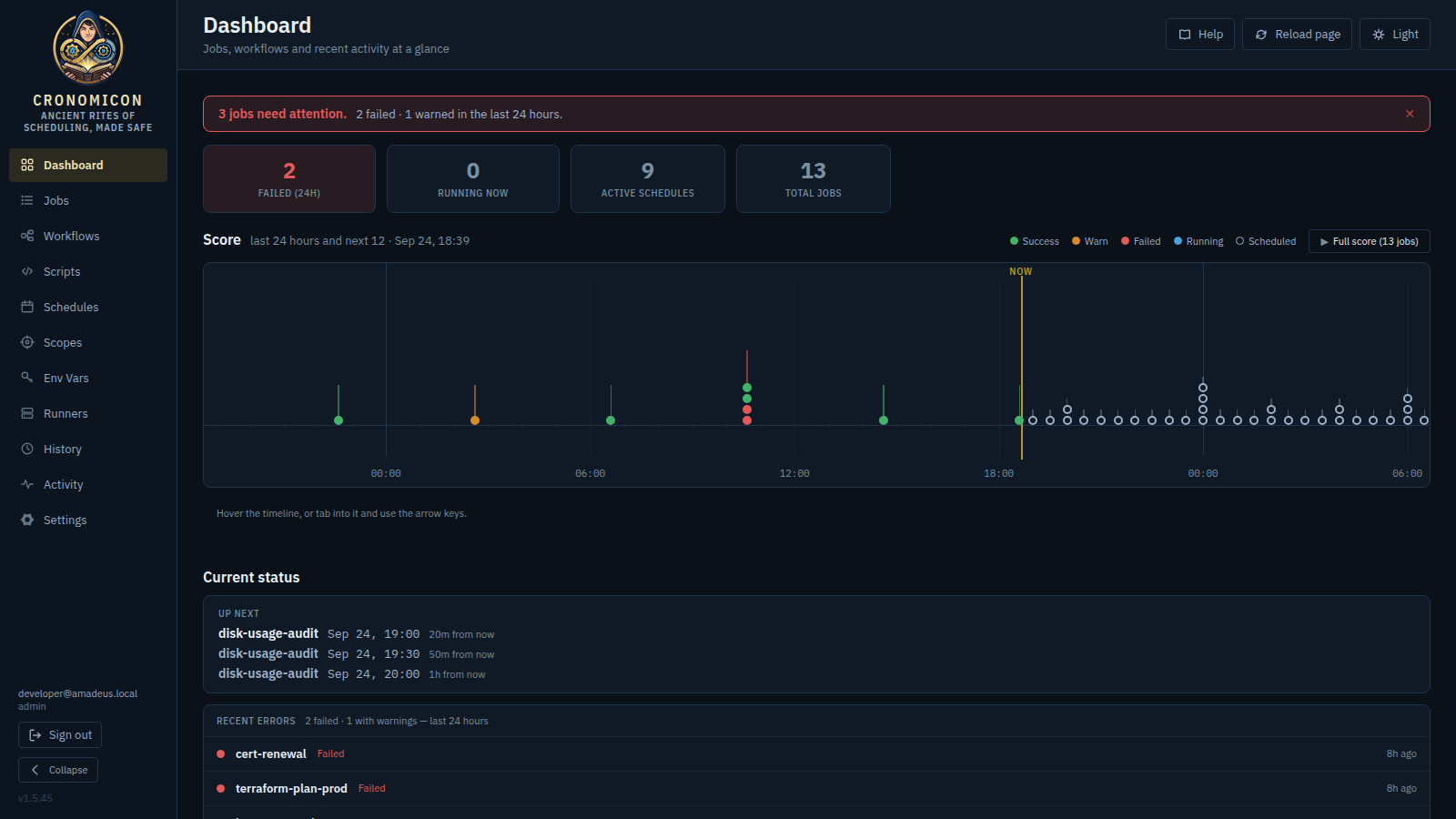

5 View Reference: Dashboard

The Dashboard is the home page and command center — a purely read-only situational picture. Every number is derived in your browser from three feeds (/jobs, /runs, /schedules/upcoming); to act on anything you follow a link into Jobs, Schedules or History.

It opens with its own answer. A one-line verdict strip sits above everything else and says, in a sentence, whether anything needs you — quiet when it does not, and loud and clickable when it does (§5.3). Everything below it is the evidence for that sentence: the tiles count, the Score says when, and Current status names the jobs.

5.1 Stat tiles

The row is left-aligned and sized to its content rather than stretched across the page, and the two tiles that can demand action — Failed (24h) and Running now — carry a colour tint only while they are non-zero. The two reference counts stay quiet always. A zero never looks like a five-alarm failure. Every tile is a link: each one lifts on hover, and Enter or Space follows it from the keyboard.

5.2 The Score & Current status

The Score is a single timeline of a fixed window — 24 hours back, 12 hours ahead — with hour ticks, day boundaries in the application timezone, and a gold playhead at the current instant. Each run is a mark: a stem and a notehead.

• Filled notehead = it ran. Hollow notehead = it is scheduled — the tense is carried by the mark itself, not just by which side of the playhead it sits on.
• The stem's height is the run's duration, on a logarithmic scale — real durations cluster tightly with the odd outlier, so a linear scale would make every stem the same height.
• Colour is the outcome, from the same vocabulary as everywhere else: Success Warn Failed Running, and a hollow mark for Scheduled. The legend above the staff spells this out. A scheduled mark carries no outcome, so it is drawn in a neutral ink — but a heavier ring than the surrounding muted text, because a hollow mark is its ring, and the marks that predict the future should not be the faintest thing on the plot.
• Near-coincident marks merge into one, and draw as a chord. Grouping is by rendered proximity, not exact timestamp equality, so runs launched seconds or minutes apart do not draw separate noteheads at indistinguishable x and smear into each other. The merge distance is one notehead plus its gap, which on the fixed 36-hour window is about 18½ minutes. A cluster anchors on its earliest member, so a lone mark never moves and nothing is displaced further than the width of the mark itself. The group is drawn as a chord rather than a numeral: one pip per member, stacked and severity-sorted with the worst outcome lowest, nearest the staff line, sharing a single stem sized by the longest member — the way notation draws simultaneous notes. Each pip keeps its own outcome's colour, so a cluster of six successes and one failure reads as six green and one red rather than painting entirely red. The stack caps at 8 with a +k overflow that folds from the mildest end, so an overflow can never hide a failure. Marks are never nudged along the axis: clustering changes the vertical, never the time.

Reading a mark. Hover anywhere along the staff and the nearest mark is picked up — you do not have to hit a 10px target. The readout is a fixed slot beneath the staff (it never moves, so your eye doesn't chase it). For runs it is a small table — one row per run in the hovered cluster — giving the job, its status, its own start time with seconds (a cluster is runs within one notehead's width, not one instant, so "together or in sequence" is answerable), how it was triggered (by a person, a schedule by name, a reaction, a token, a file, or a workflow step), the executor and runner (SSH or Runner · name), duration, the trace id (click to copy the full value) and a View run link into History. A scheduled mark lists only job, status and the instant it fires. At rest it is a plain caption line rather than a bordered card: with nothing hovered its only content is the instruction, and a framed box around an instruction reads as an empty panel. It takes the card back the moment it is carrying a mark, and it reserves its height in both states, so hovering never nudges the page. If a dashed vertical line appears in the forward half, the schedule projection was capped there — “later scheduled runs are not shown”. It marks a limit of the projection, not the end of your schedules.

Keyboard. The plot is a single tab stop. Tab into it, then ← / → step mark to mark, Home / End jump to the first or last, and Esc clears the selection. Each mark is announced with a real name — “nightly-backup, Success, ran Jul 28, 16:00” — and a coincident group announces its count and its worst outcome.

Full score. The Full score (N jobs) button sits in the panel's own header, beside the legend, and expands one staff per job, grouped by run type, sharing the same axis and playhead — this is where a job firing every 30 minutes stops being a repeated table row and becomes a visible pulse. The button then reads Collapse.

Quiet jobs are folded. A job with nothing in the window — no runs behind, no fires ahead — is collected into a single labelled row at the foot of the panel: “+7 quiet jobs — no runs or scheduled runs in this window”. Click it and every staff returns, each quiet one an empty lane that reads correctly as a rest; the row then offers “Hide 7 quiet jobs”. A run type whose jobs are all quiet takes its section header with it. The count is the point: a job you cannot see is still accounted for, which is why the fold names how many it holds rather than silently dropping them — on a large install most of the panel's height was otherwise spent on blank lanes.

Expanding replaces the single lane with the per-job staves inside the same bordered panel: one view at a time, never one view stacked on another, and the header, caption and legend stay put across the swap. Per-job staves cluster near-coincident runs exactly as the compact lane does.

5.3 The verdict strip & Current status

The Score answers when. It does not answer “is everything okay?” in a sentence — and at rest, before you hover anything, its readout says only “Hover the timeline, or tab into it and use the arrow keys.” That sentence is the verdict strip's job, and it is stated first, at the top of the page, in one of three states:

Dismissing the attention strip. Once you have seen it, the ✕ on the right puts it away — the strip is a summary, and there is no sense in it nagging you through the twenty minutes you spend fixing the thing it named. Two rules make that safe:

• It comes back the moment anything changes. The dismissal remembers the exact situation you acknowledged — which jobs, at what severity, how many times, and when each last failed. A new job failing, an existing one failing again, or a warning turning into a failure is a different situation, and the strip returns saying so. Dismissing can silence what you have seen; it can never swallow news.
• It never hides the evidence. Only the one-line summary goes away. Recent errors below still names every affected job, and every row still links into History.

The dismissal is remembered per browser (alongside your column layouts and widths), so it survives a reload and applies in every tab on that machine — and, being a local preference, it is yours alone: dismissing it does not silence the strip for anyone else. Colleagues see the alert until they acknowledge it themselves. There is nothing to dismiss in the all-clear state, so no ✕ appears there.

Two details worth knowing. The all-clear is deliberately quiet — there is no green banner celebrating a normal day, because a strip you learn to ignore is no use on the day it turns red. And the counts come from the server's exact totals rather than the page of runs the browser happens to have fetched, so a truncated Recent errors list can never understate the verdict. If a fleet-wide working calendar is suppressing fires, its banner sits directly beneath the strip — it is the explanation for an otherwise unnervingly quiet day.

Beneath the Score sit the two blocks that carry the detail, in the order a glance wants them.

Each feed is capped at one page of runs, so on a very bad day the per-job counts in Recent errors are floors rather than totals — and the box says so, with a final row offering “Some older runs are not listed — open History for everything.” The verdict strip's own counts are unaffected: they read the server's totals.

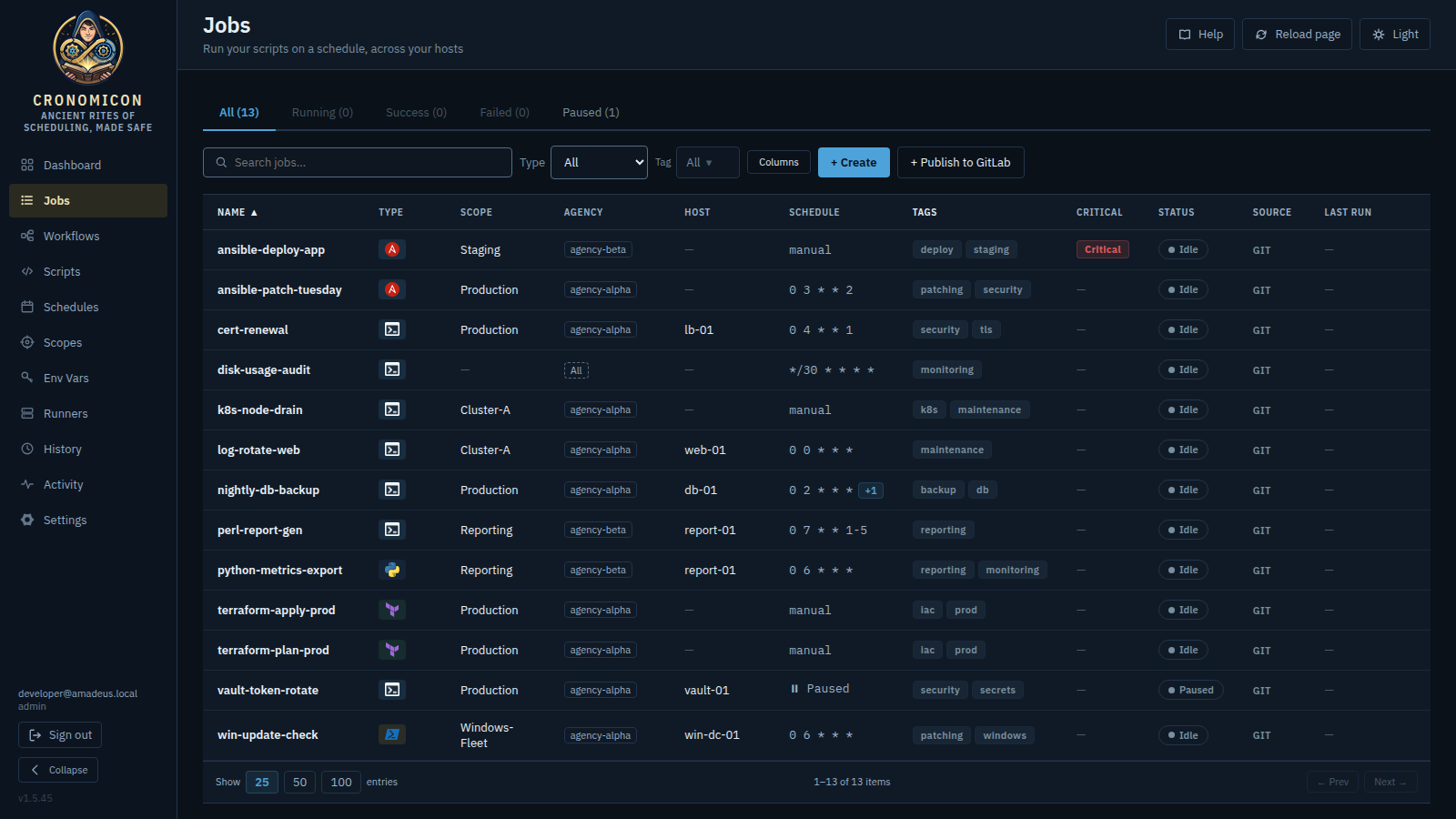

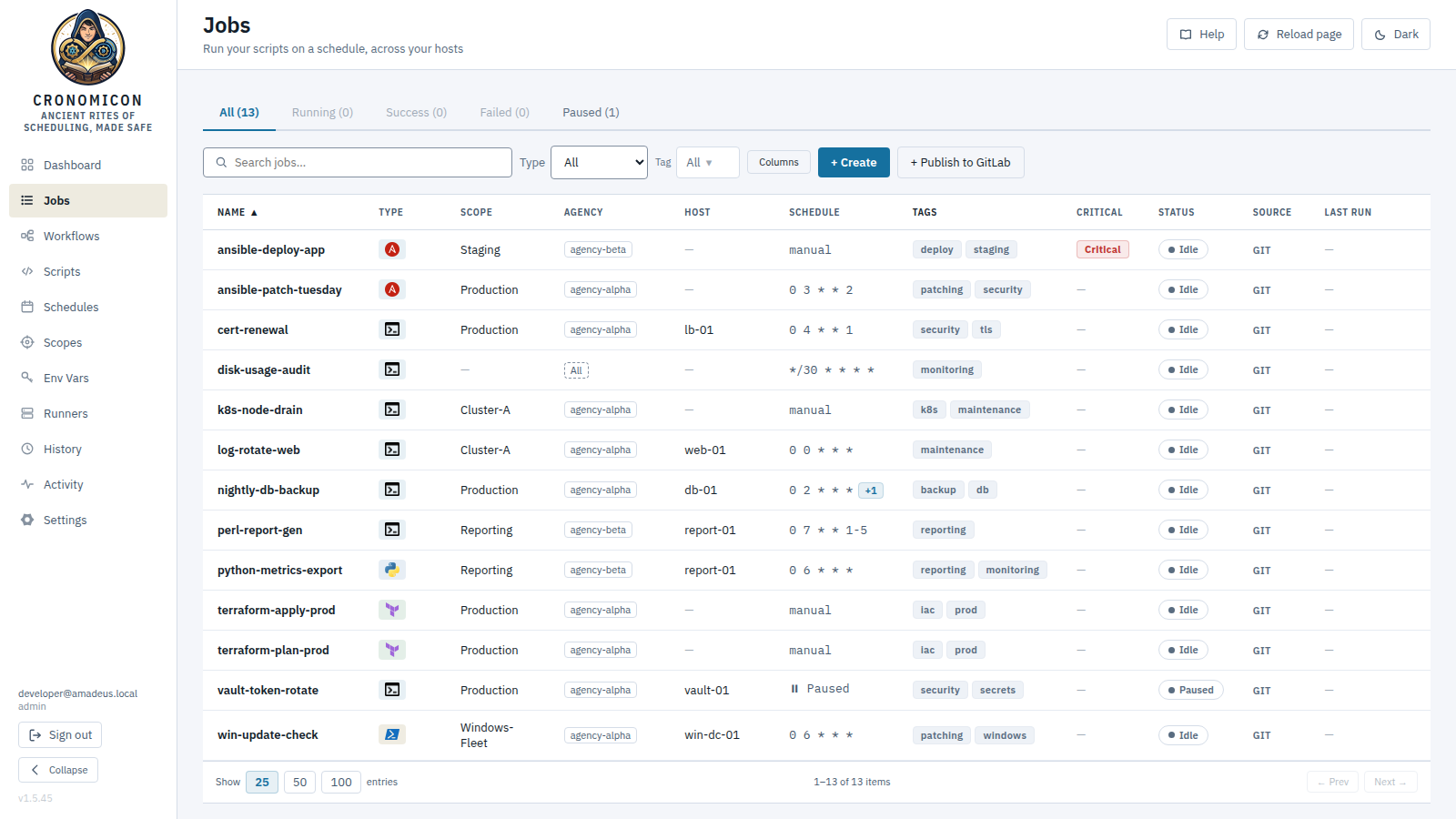

6 View Reference: Jobs

The central table of every job (both sources), with status tabs, search, an expandable detail panel, and inline lifecycle controls. It loads from GET /jobs and refreshes after any successful action. The page describes itself as “Run your scripts on a schedule, across your hosts”, because jobs may be synced from GitLab or authored in Cronomicon (§2.2).

6.1 Tabs, filters & entry points

Five status tabs (each with a live count) filter by the job's aggregate status — note the friendly label mapping:

All Running → running Success → success Failed → danger Paused → paused

The tab is called Success on Jobs and on Workflows alike: one product should not have two words for one outcome, and every tab label comes from the same vocabulary the rows themselves use (Appendix D). A tab whose count is zero is dimmed — still clickable, because “Failed (0)” is a real and welcome answer, but quiet enough that your eye lands on the tabs with something behind them.

• Search & Filter: Search matches name, scope, and host. The Type dropdown filters by run type, and the Tag dropdown filters by user-authored tags. Search + type + tag + tab combine with AND.
• Folder browsing. Jobs organized into GitOps sub-folders (e.g. jobs/db/backup.yaml) render as a breadcrumb + drill-in folder tree, one level at a time (the active tab/type/tag filters apply first). Typing in Search flattens the tree to a flat result list with each row's full repo-relative path; clearing it returns to the tree. Folder placement never changes a job's identity, detail route or any reference to it (see §8 for the shared folder browser). The Jobs list fetches the whole catalog at the server-max page size (pageSize=200) and then pages it client-side. Searching flips to a flat result list with a Show 25 / 50 / 100 entries selector (default 25) beneath the table; while browsing the folder tree each level pages at 25 rows. If the catalog ever exceeds the 200-row resident cap an honest banner appears above the table — “Large catalog ({N} jobs). Only the first {N} are loaded — filters, search, and paging apply to those.”

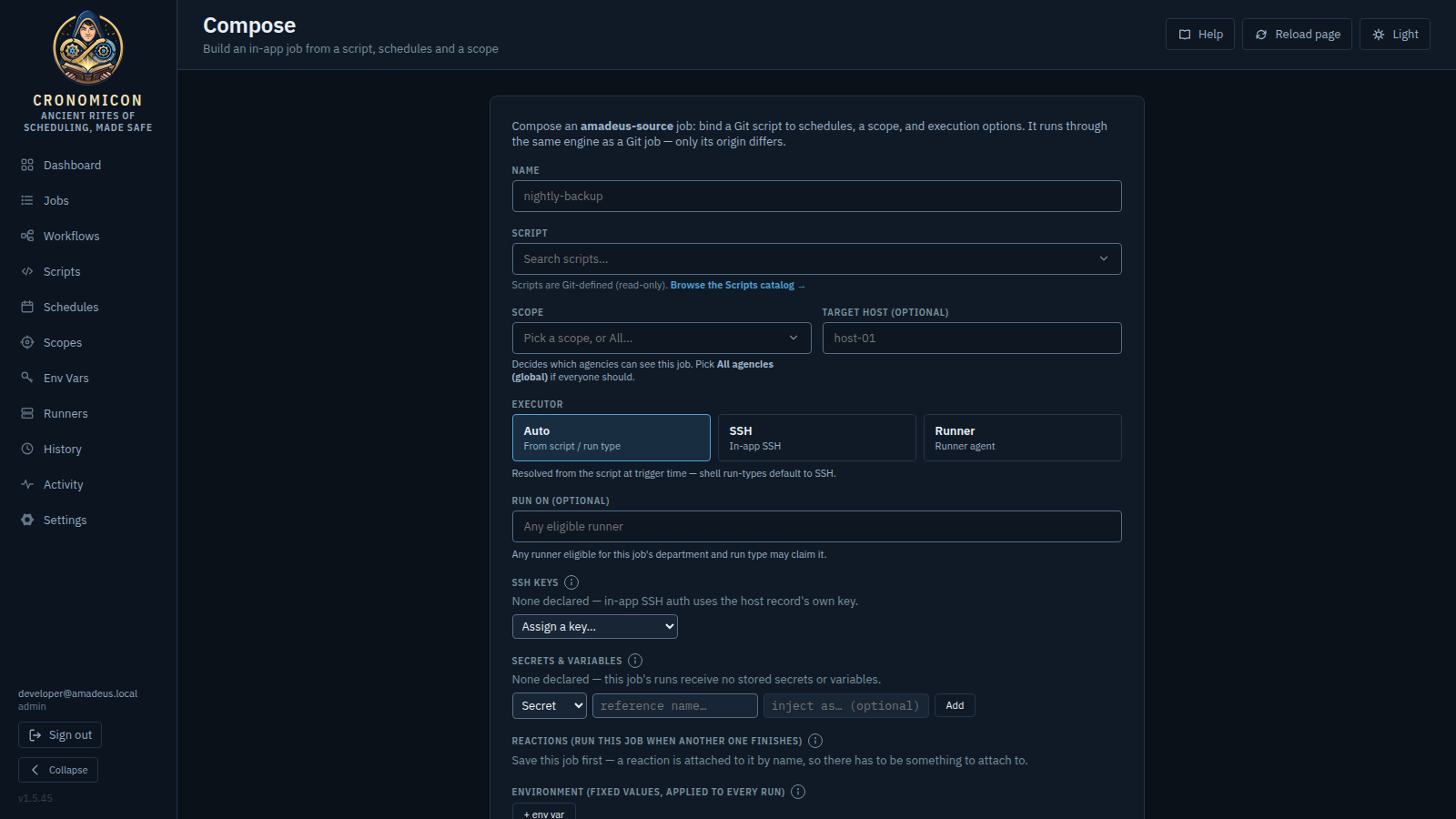

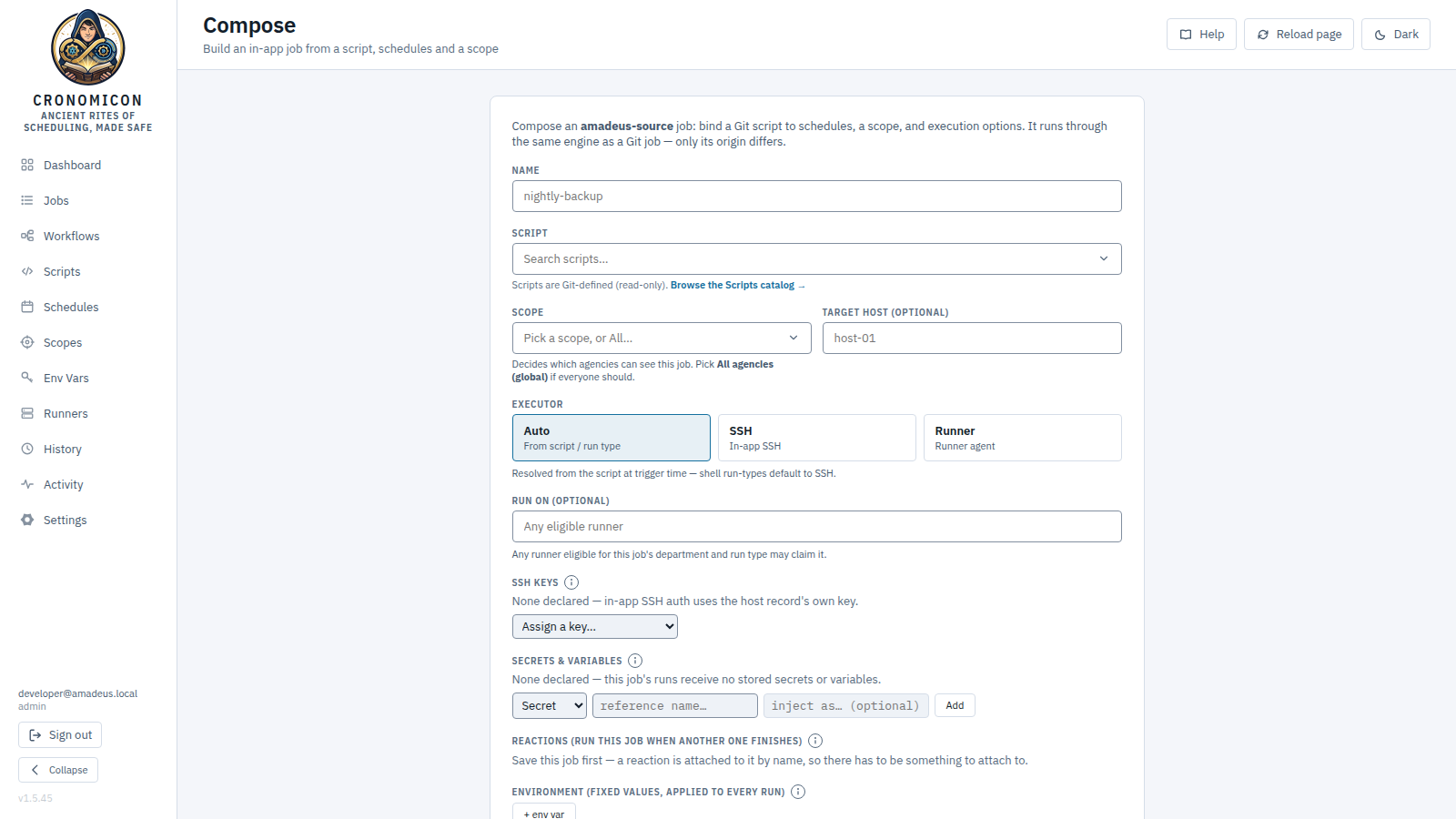

• + Create opens the in-app Job Composer (/compose) — shown to admins. + Publish to GitLab opens the GitOps publish builder (/jobs/publish) — shown to admins and approvers (the Publish capability).
• The list shows the Source of every row: CRONOMICON (composed in-app) keeps a tinted pill, while Git-authored rows read as quiet git text. The two are deliberately lopsided — in most installs nearly every row is Git-authored, so a pill on each of them is a column of identical badges, and the row worth spotting is the exception. The Schedule column shows the cron, manual, ⏸ Paused, or a blue +N badge for multi-schedule jobs.
• An empty cell shows a faint dash. Every catalog does this: a job with no host, no tags or no last run gets a — quiet enough that it recedes, rather than a column of dashes competing with the values beside them. It stays a dash rather than going blank, because a blank cell in a sortable column reads as something that failed to render; screen readers announce it as “no value”.
• Operator-Owned Tags: Every row displays its tags. Expanding a row reveals an inline tag editor where any logged-in user can add or remove tags (session + CSRF only, no role gate). These tags are stored purely in the local SQLite database and are preserved across GitLab syncs; they are never written back to Git.
• Critical is its own column, immediately before Status, showing the Critical marker for any job an operator has annotated as such (the marker itself is set in the expanded row). Click the column head to sort by it and float the critical jobs to the top. Workflows carries the same column, before its Result column. It is a display marker: Cronomicon does not treat a critical job differently at run time, it makes sure you can see which ones they are. Hide it from the Columns menu (§3.4) if your fleet does not use annotations.
• Empty list? “No jobs yet. Jobs are synced from the jobs/ directory of the definitions repo, or authored in Compose.” is normal on a fresh install, and — if you hold the Compose capability — it offers a Create a job button. That is distinct from “No jobs match your filters,” which offers Clear filters instead: every empty state names a next step, and “nothing exists yet” and “nothing matches” are never worded the same way.

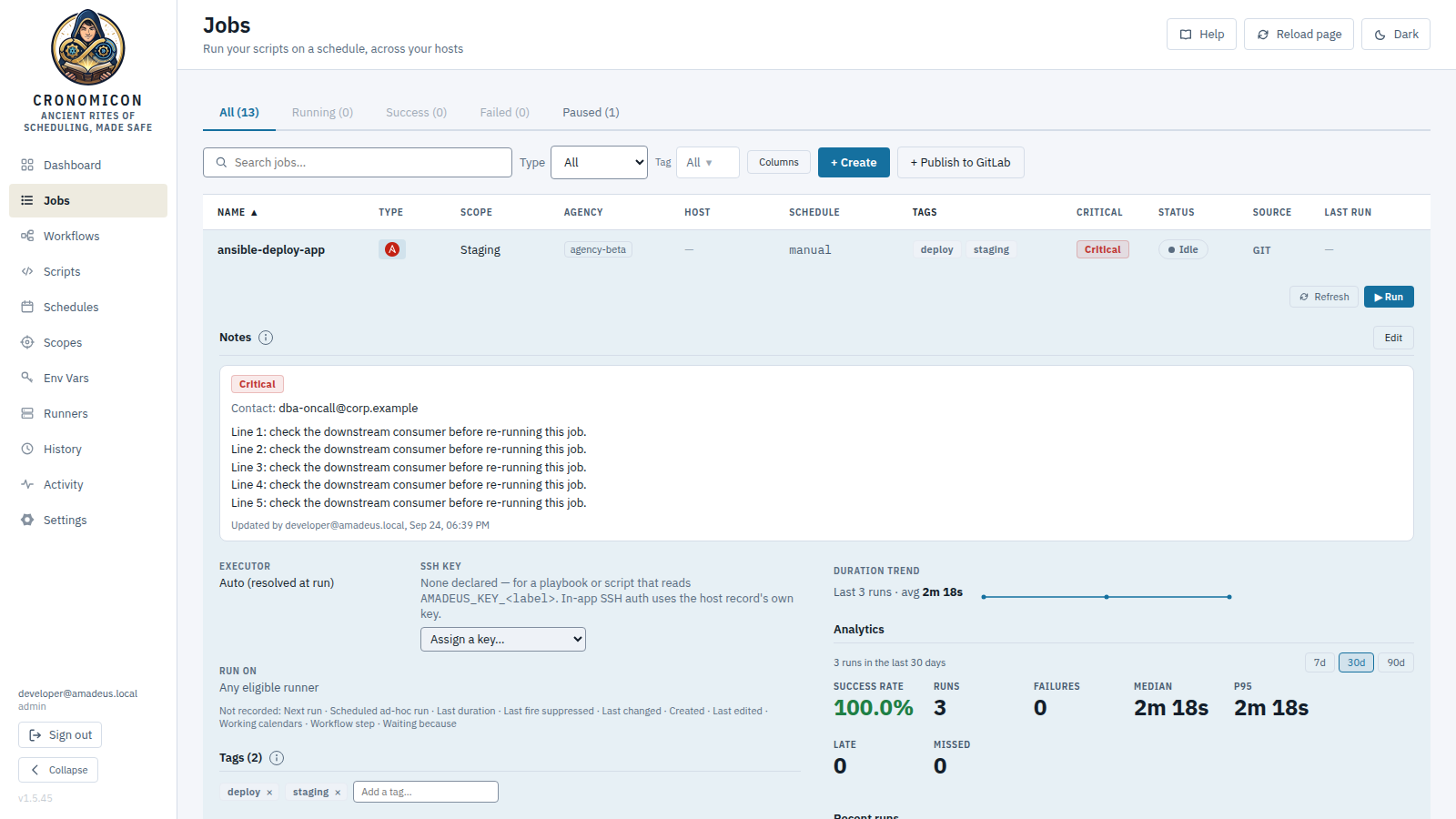

6.2 The job detail panel

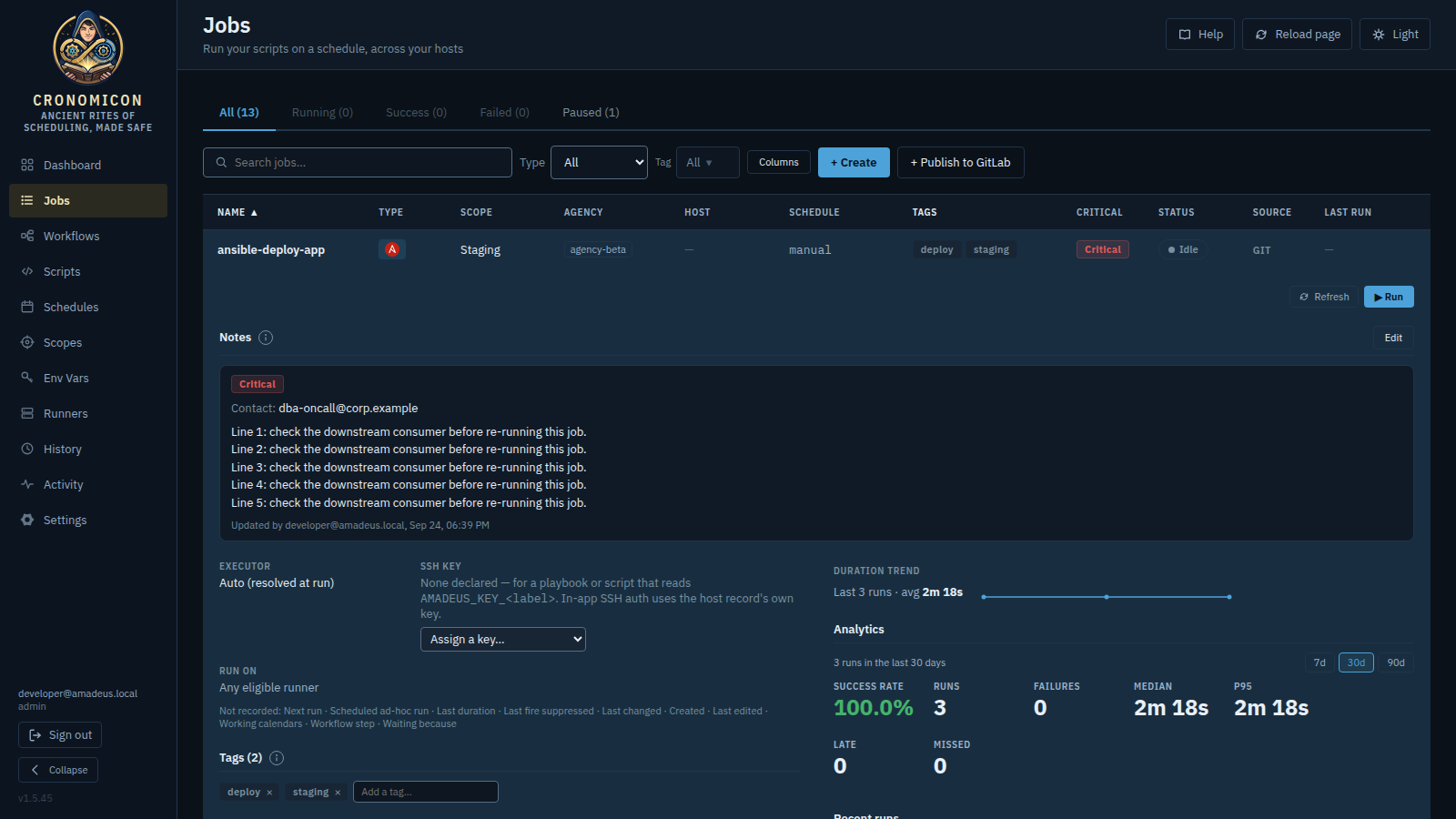

Click any row (not the Actions cell) to expand an in-place, read-only detail panel — the row is also reachable with Tab and opens on Enter or Space — showing executor, last/next run, last duration, a Waiting because line when the job is queued (a reason, spelled out rather than the raw runner_lost-style wire value), a per-entry Schedules list, the executable source (a linked scriptRef →, an inline command, an inline script, or a script-file path), a read-only Run inputs section (shown only when the job declares them — each row lists the label/name, a ● required marker, the default, and any allowed options), a reference-bindings editor (§11.6) where an admin declares the Secrets / Variables / SSH keys this job injects at run time — that is one row per reference carrying the kind dot, the derived CRONOMICON_* name, the resolve verdict, the state pill, the reason and the remove control (healthy references get a row too, so the section stays a complete inventory of what the job consumes) — a duration sparkline of the last ~20 runs, and a Recent runs table. Click a run row to lazily load its redacted log; a Reason: line appears above it for killed / lost / timed-out runs.

A job that has never run says so once. The panel lists only the facts it actually has, collecting the absent ones into a single muted “Not recorded: …” line rather than a grid of labelled dashes. When a job has no runs at all, that line would be an inventory of four nothings, so it collapses to “No runs yet — Run it to start recording history.” — the Run button being right there at the top of the same panel. Facts absent for other reasons (a job with no working calendar, say) keep the Not recorded line, which is where naming them earns its keep.

The panel opens with the Notes section — the operator annotation surface: the Critical marker, a Contact (who to reach when this breaks), and free-text notes with an attribution line saying who wrote them and when. Any logged-in user can edit them (+ Add a note / Edit), they are stored in Cronomicon only — never written to Git, kept across syncs — and they sit on their own opaque card so the prose reads clearly against the expanded row's tint instead of floating on it. Long notes cap at five lines and scroll, with a fade hinting at more below.

Top right of the panel, before the lifecycle actions, sits Refresh — and the same control appears on every expanded panel across the app (Workflows, Scripts, Schedules, Runners, Scopes, Env Vars, History drill-ins). It re-fetches everything that panel shows — all of its requests, including nested ones — without touching the rest of the page: your expanded rows, filters, pager position and half-typed edits all survive, which is the difference between it and the top bar's Reload page. While work is in flight it reads Refreshing… and disables; it needs no permission and is never hidden.

In the Recent runs table, opening the log of a run that is still going follows it live — see the tailing note in §12.3; a finished run's log loads once.

Two of the panel's fields answer where the job runs, and they sit together. Executor says what kind of thing runs it. Run on says which runner may claim it: either “Any eligible runner”, or a runner tag that narrows it to the runners carrying that tag — the ones on the right network segment, in the right datacentre, wherever the job needs to be. A count beside the tag tells you how many of those runners are online.

Both are reported here, not set here. A job's placement is authored in two places and two only: when the job is built (the Composer's Run on field, or — for a Git-synced job — its YAML), and per run in the Run dialog's Where it runs section, which repoints a single run without touching the definition (§6.5). The detail panel states the resolved answer rather than offering a third place to change it.

For a Git-synced job that means the durable answer lives in the repository, and changing it is a change to the YAML. When the pinned runners are gone and the work has to move now, the Run dialog is the escape: it can send one run to another tag, or to no tag at all, without editing anything.

A pin grants nothing: it can only narrow which runners may claim a run, never widen it, so it can never reach a runner your department's rules would deny.

6.3 Lifecycle controls

Delete is also available inside the Composer's edit view; the row control and the Composer's are the same action.

6.4 The run lifecycle

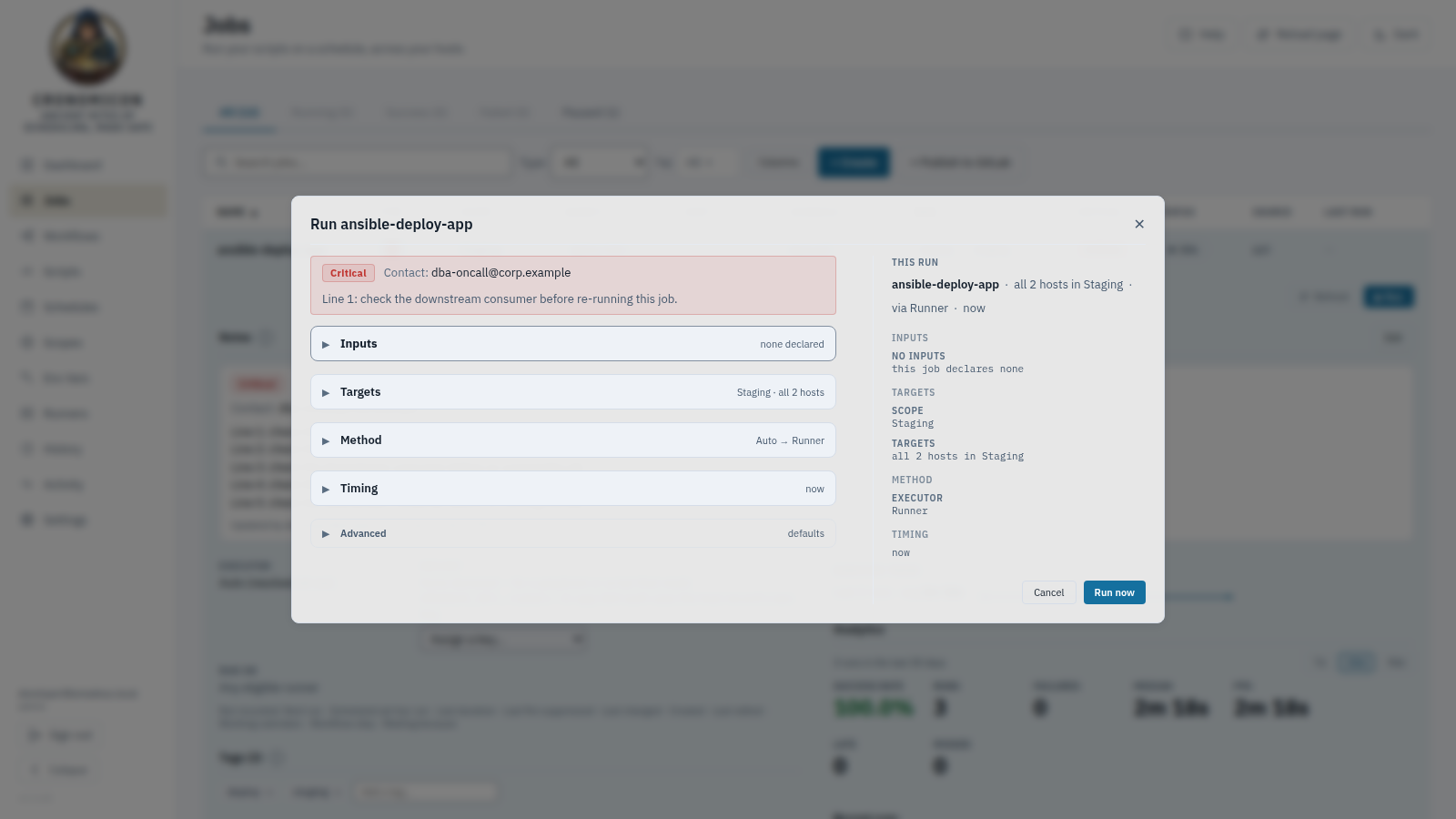

6.5 The Run dialog & per-run overrides

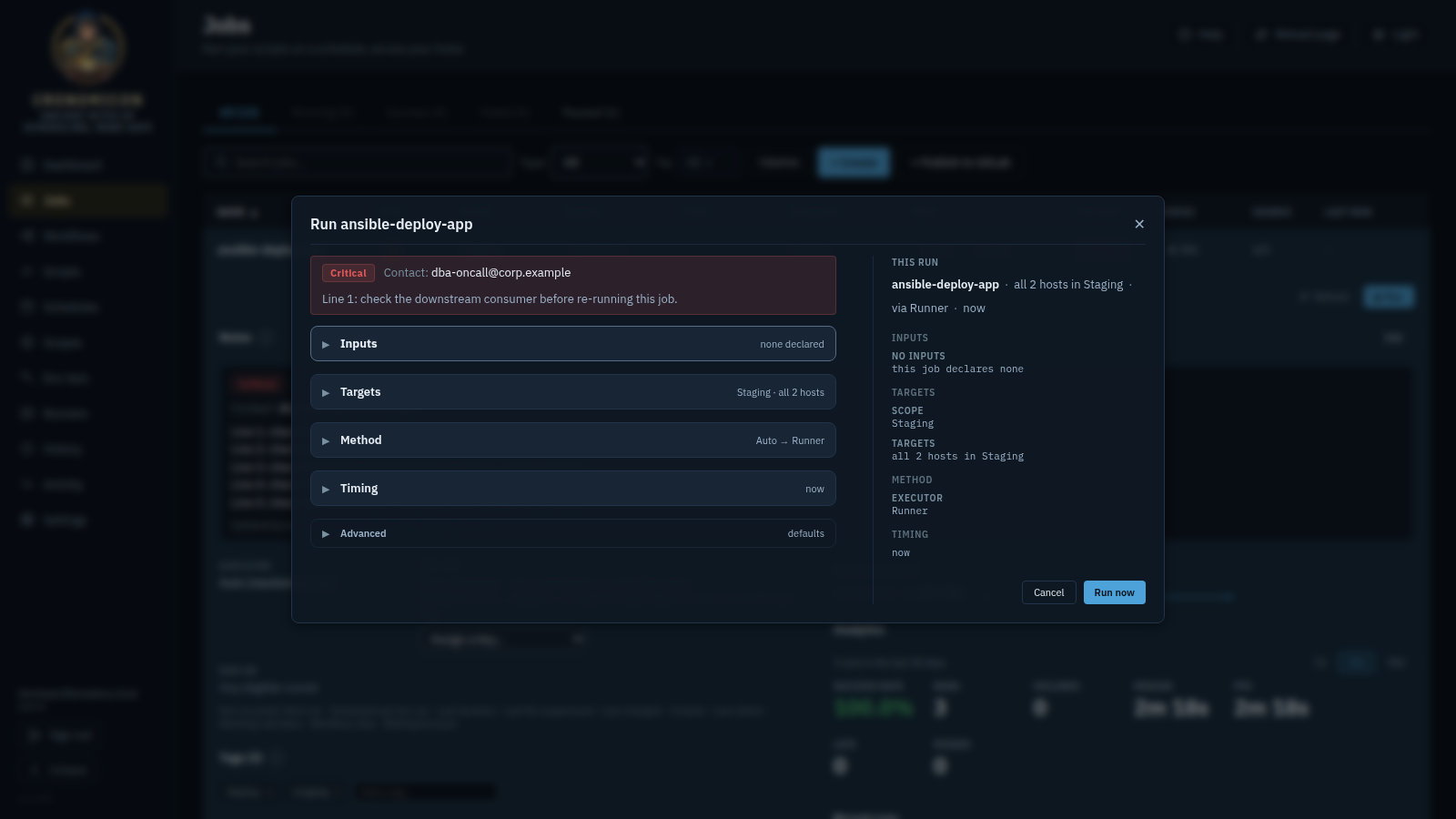

Triggering a job opens the Run dialog (titled “Run {job}”), which lets you override five things for this one run. All five are optional — accept the defaults to run the job exactly as composed.

The dialog’s shape, top to bottom:

1. A recap sentence that never leaves the screen. At the top of the commit zone, outside the scrolling body, one line states what pressing Run will do — ansible-deploy-app · all 2 hosts in Staging · via Runner · now — read from the same live state the run submits, so it cannot drift from the run. Fragments that deviate from the job’s defaults (a host or group subset, a raw --limit, a non-default executor, a scheduled instant) take a warning or info accent, check mode is appended when ticked, and a count of missing answers rides the end of the line. The confirmation window restates it — at the instant of commit, redundancy worth keeping.
2. Five sections, one home per idea. Inputs leads — the answers panel and its readiness meter (described below), the per-run environment overrides as a collapsed Add an override subgroup directly beneath the answers they outrank, and the added References — everything the run receives, so the precedence chain reads top-to-bottom on screen. Targets holds scope and the host/group limits — where the run goes. Method holds executor, Run on and Connect as — how it gets there. Timing is fourth (now, or parked for a chosen instant), and Advanced holds ansible’s flags and the raw --limit; on a bash or python run it opens to a sentence pointing back at Inputs rather than an empty box. The bars also carry their weight: Inputs is visually primary, Advanced and the nested override subgroup are quiet — but collapsed summary text never shrinks with the bar, so CHECK MODE on the shut Advanced line stays as readable as any summary. And the explanatory helper under a control appears when you engage with it — focus lands in the field, or it leaves its default — while anything about risk never hides: the plaintext-secret caveats, the reserved extra-var guard, invalid-subset and limit-conflict verdicts and the scope warnings are permanent.
3. A fixed-height commit zone — that grows a rail when wide. The footer keeps only the recap, the run error, a one-line escape for unfilled answers and Cancel / Run; the prose about what an unfilled answer means lives in the answers panel beside the rows it names. At 1200px and wider the dialog widens to 960px and splits: sections on the left, scrolling as before, and a fixed This run rail on the right carrying the recap, then the run summary — every answer and setting the run will use, with its value, grouped under the same five names as the sections — Inputs, Targets, Method, Timing and (only when something is active) Advanced — then the error, the escape and the buttons. The rows you changed from the job's defaults are the highlighted ones: they render as bordered cards in the warning colour and name the default they replace, while a fact merely being stated stays flat and quiet. It updates live while you edit, so ticking check mode makes its row appear beside your hand rather than after the first press of Run. Below 1200px the stacked footer is the narrow layout, and resizing across the breakpoint mid-edit preserves every setting.

For ansible/runner runs over an inventory scope, Targets also carries inventory-group targeting, and Advanced the raw --limit (both covered below). The overrides themselves:

And four behaviours worth knowing cold — shown the way the dialog itself would show them, as collapsed bars whose right edge is the one-line summary:

Inputs

If the job declares run inputs — the same set listed read-only in its detail panel (§6.2) — the dialog opens with the Inputs section: a <select> when the input defines options, otherwise a text input, each pre-filled with its declared default. A summary banner above it states the whole picture at a glance — e.g. “5 inputs — 1 needs a value — 2 awaiting confirmation”.

Every input shows the value that will actually be sent and where it came from, as a Will send KEY=value line plus a provenance chip:

• you — you typed or selected it.
• default — pre-filled from the declared default, untouched.
• override — an Environment overrides row further down uses the same key, and wins.
• job env — the job's own env supplies it; the field isn't needed.

A required input in two distinct states: ● required means nothing at all will be sent, and ● confirm means a default will be sent but you haven't affirmed it. Clicking Use default ✓ — or editing the field — confirms it. Only the first state gates the button: with a required input empty the button reads “Run without N answers” and stays disabled, the prose naming the missing inputs sits in the answers panel beside the rows it describes, and you proceed by ticking the one-line Run without it/them escape in the footer — the only part of the warning that stays pinned, because it is what ungates the button. The run is never blocked outright — the server accepts it either way — but the choice is deliberate and recorded. Answers (defaults included, even when untouched) ride the same per-run env path as the overrides below.

6.6 Stopping a run, and saying what it meant

Ending a run records a disposition: whether you stopped it because it was destroying something, because its work was already done and the process had hung, or because you needed the host back should not read the same afterwards, and should not all count as a failure.

The control is Stop run…, and it asks one question: what happened?

Two halves are recorded separately and both are kept: the status is what happened, and stopped by is the proof a person ended it. So a run can legitimately read Success · stopped by you.

Nothing changes unless you choose. The dialog defaults to Stopped, and Stop all queued never asks — those runs never started, so there is no outcome anyone could assert about them.

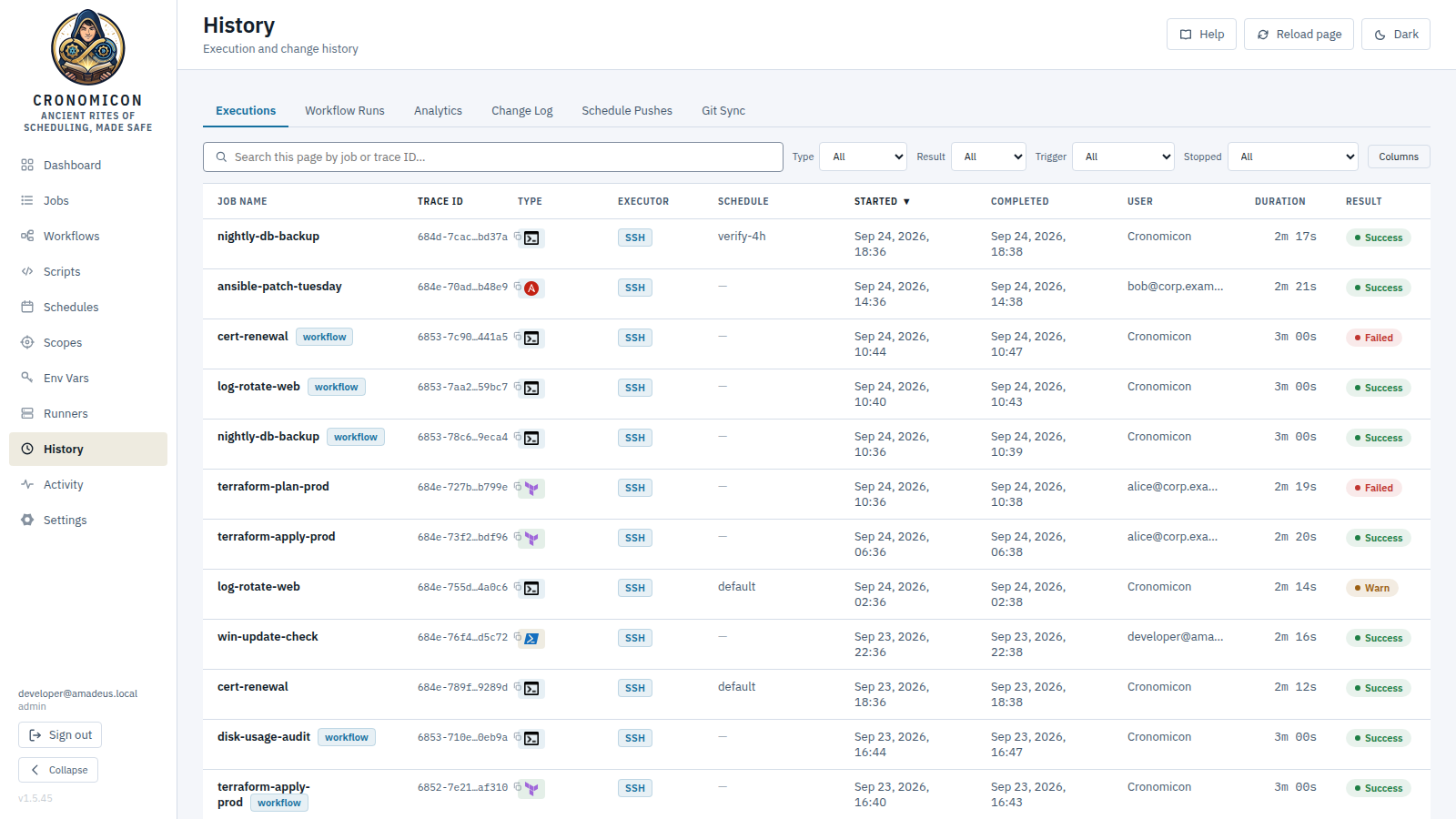

In History, a Stopped marker appears on every run a person ended, and a Stopped filter (Stopped by a human / Not stopped) finds them. Both matter more than they look: a stop recorded as a success correctly appears under the Success filter, so without the marker “successful runs” would quietly start including runs somebody stopped. The exit code is deliberately left alone — the stop signal reaches the runner on its next poll, so the process may still be alive when the outcome is written, and inventing an exit status would assert something nobody observed.

7 View Reference: Workflows & Workflow Editor

Workflows chain Jobs into ordered pipelines with optional parallel groups, conditional branches, and data passed between steps. The list view runs and inspects them; the Workflow Editor authors in-app ones — on a visual graph canvas that handles fully nested pipelines (§7.4).

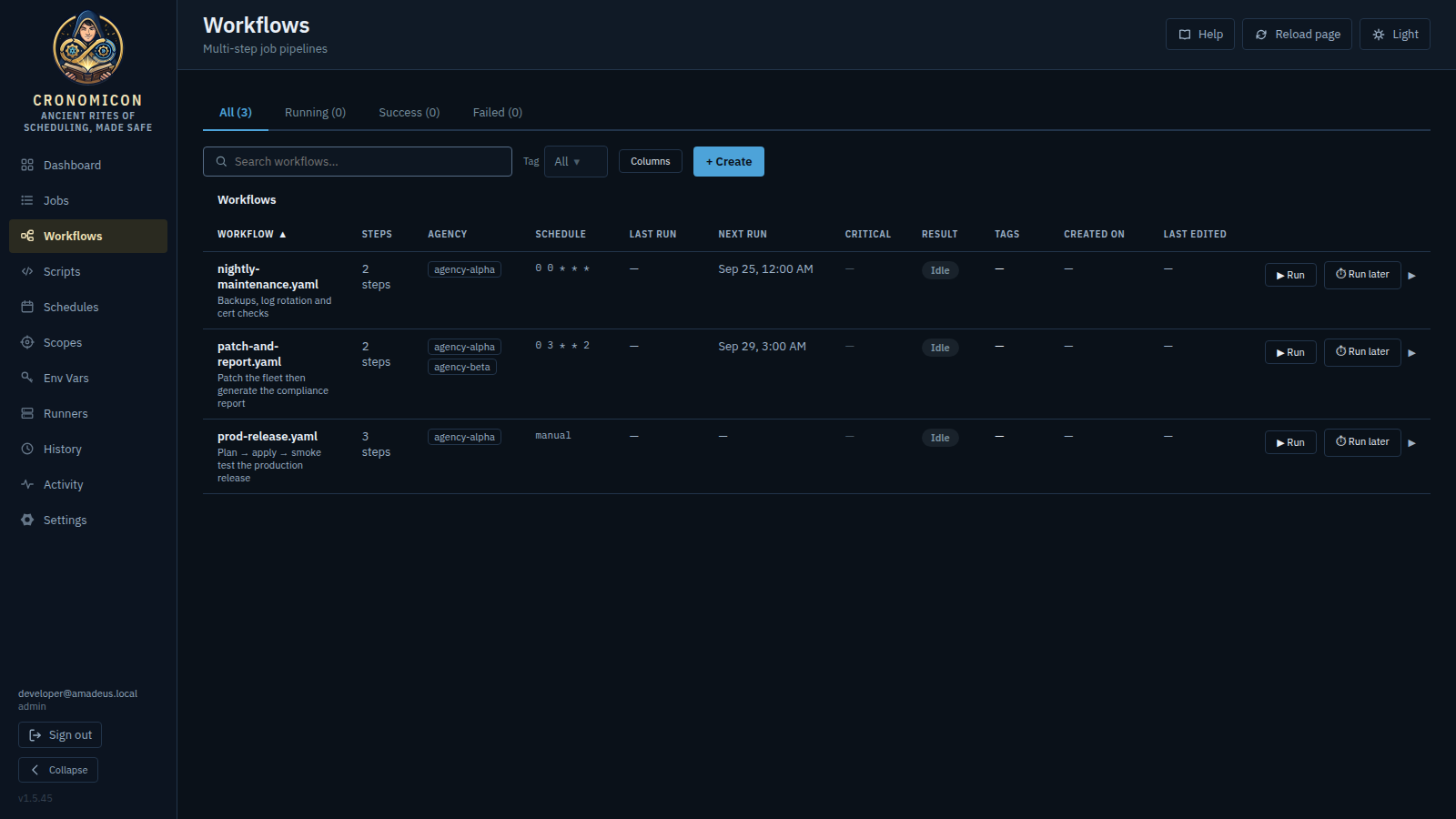

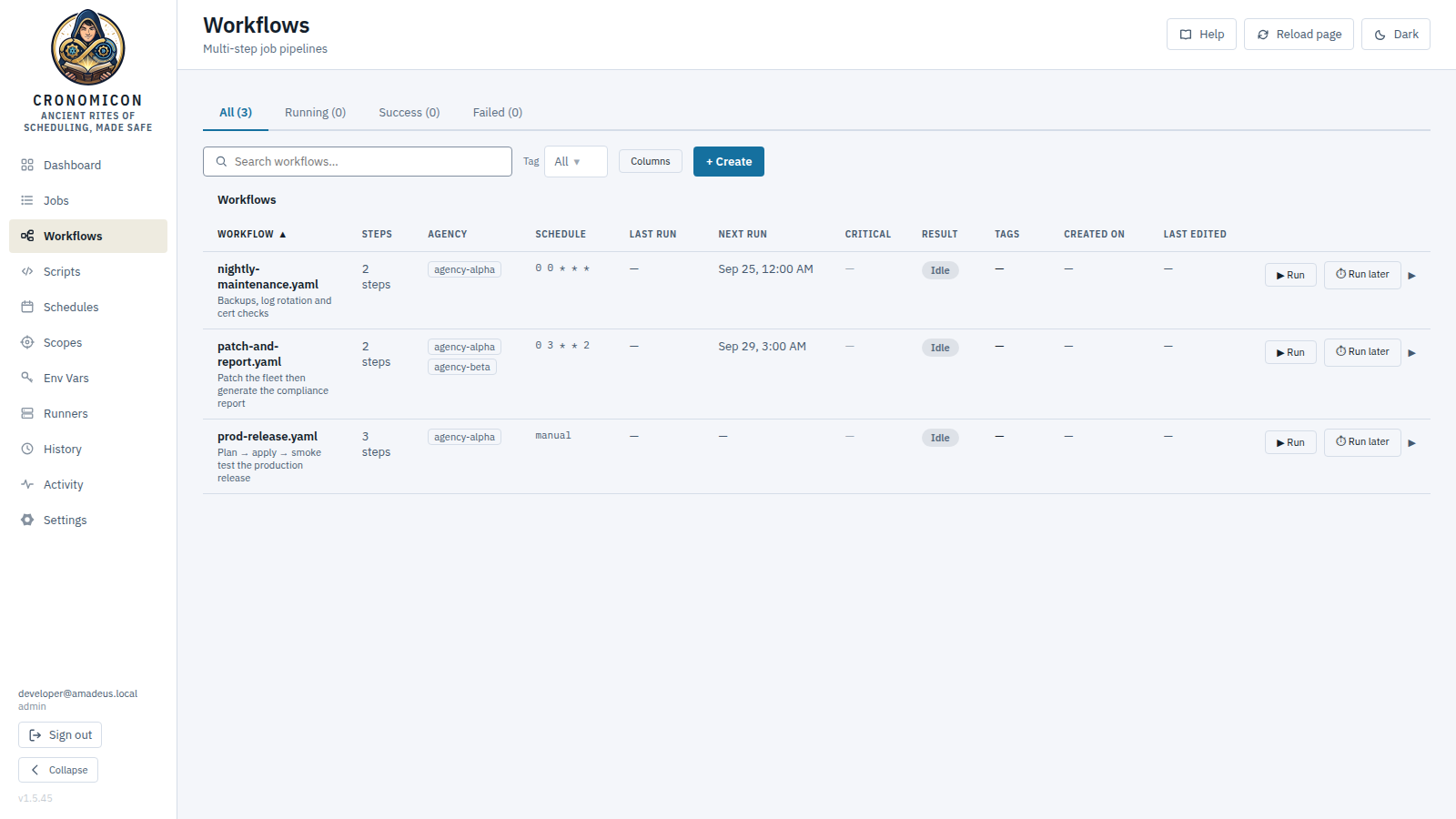

7.1 The Workflows list

• Tabs All Running Success Failed (live counts — and each tab counts what its label promises: the Failed tab includes a killed workflow run, and Running includes a queued one); search by name/description, and filter by user-authored tags using the Tag dropdown; + Create opens the editor. Like the other catalogs, workflows in GitOps sub-folders render as a folder tree, and searching flattens to full-path results.
• Columns: Workflow (name, description, optional Paused pill), Steps, Schedule, Tags, Last Run, Next Run (separate columns), Result, Created On, Last Edited. Last Run/Result come from the most-recent workflow run, and Next Run is computed from the bound schedules. Result pills: Running Success Warn Failed — or a grey Paused pill (Next Run → —) when the pause is on. (This column uses the same words as every other run surface.)
• ▶ Run on each row triggers immediately (toast: “Run queued: {name}” — the same sentence the Jobs button produces). Expand a row to see the step-chain diagram, the inline tag editor (SQLite-only, preserved on sync, editable by any logged-in user), a ↓ Run History filter, and the Pause / Resume toggle (§7.3). Cronomicon-source rows also carry Edit and, Delete — both gated on the Compose capability, Delete behind a confirm that keeps the run history and removes the definition, its schedule and its references. The editor offers the same delete. All of these sit together at the top right of the expanded detail, matching Jobs and Runners.

Note: a workflow's notify-on-trigger indicator is reserved and non-functional — it has no backing data source yet, so the notify pill never renders and the matching “ops notified” trigger toast never fires. (The same field on the Jobs detail panel always reads “No.”) Don't rely on it to signal that notifications are wired.

7.2 Reading the step chain

Steps are numbered and connected by → arrows (positional order). Three kinds render:

• Job step — a single chip with a status dot.
• Parallel group — chips inside a dashed ∥ parallel box, run concurrently.
• Branch — an amber ◆ condition node with a green PASS arm and a red FAIL arm.

The lower Recent Workflow Runs panel lists runs with trace IDs and child-job counts; click one to open its vertical Execution Timeline (per-step status, duration and timing; system/bookkeeping steps show a ⚙ icon).

7.3 The per-instance Pause toggle

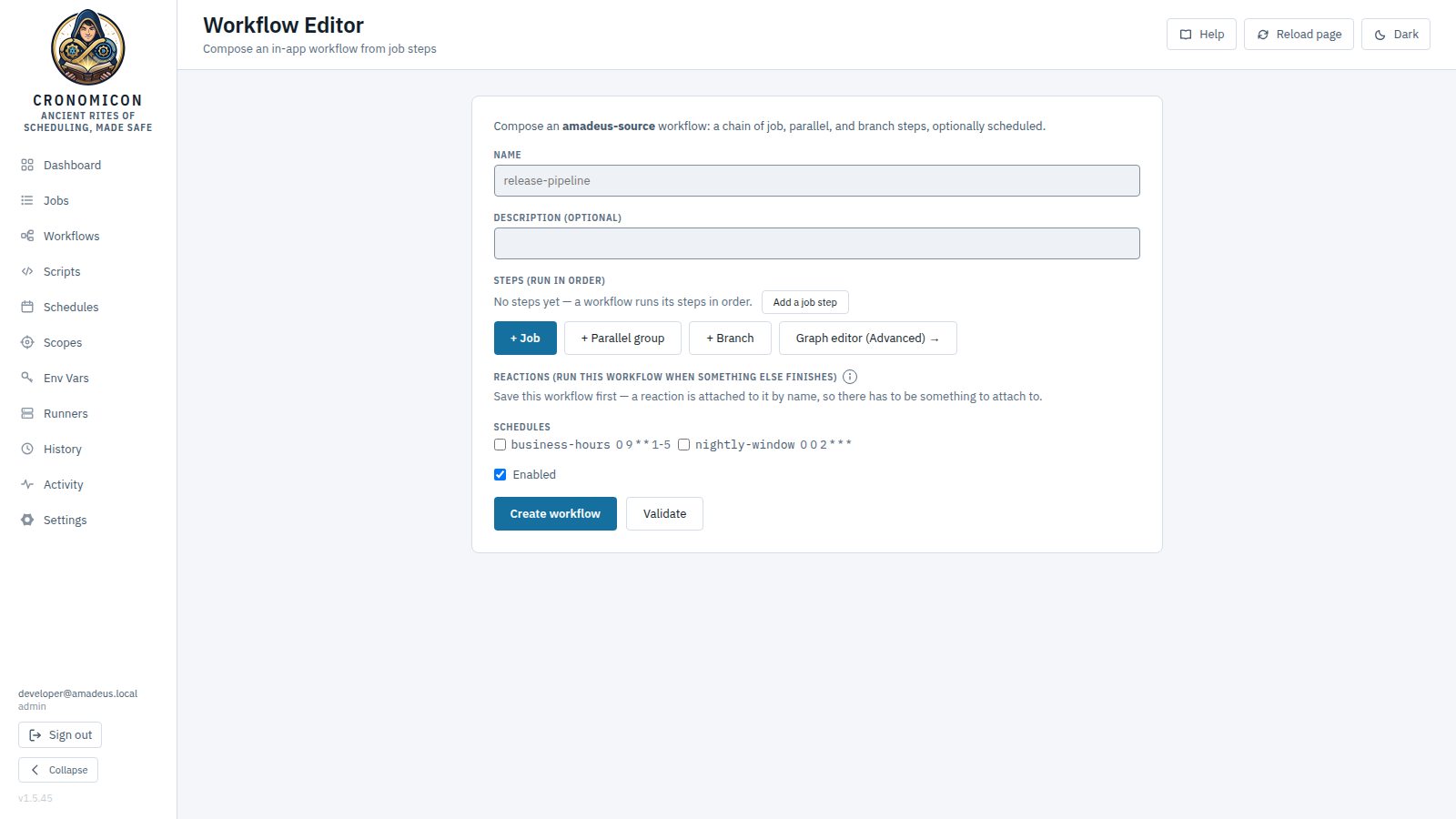

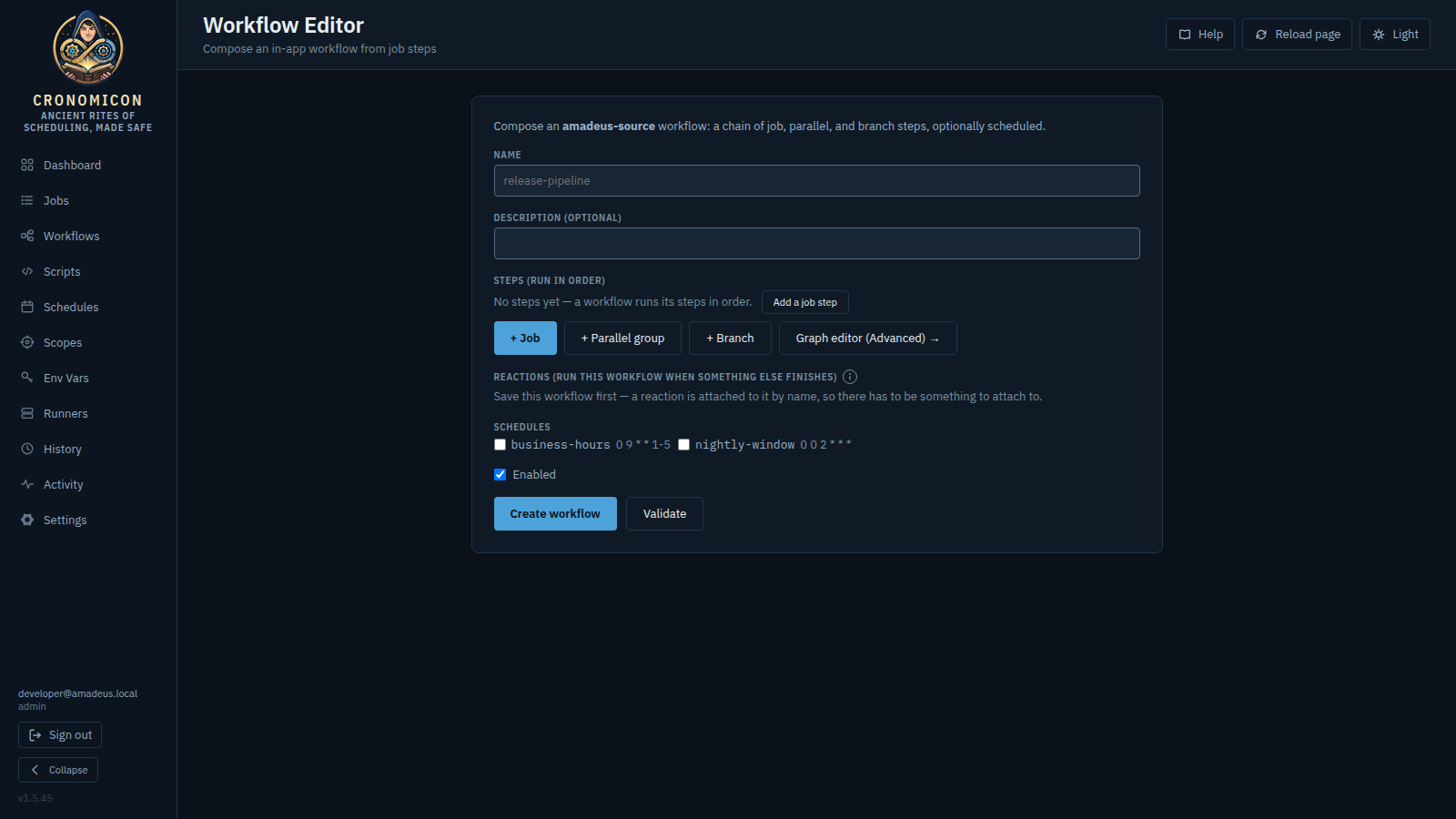

7.4 The Workflow Editor — Simple ｜ Graph (Advanced)

Creates and edits cronomicon-source workflows, optionally bound to schedules. (A Git-authored workflow opens read-only here — the page directs you to the GitLab publish flow instead.) The editor has two modes that convert into each other losslessly:

• Simple editor — the linear list, best for flat chains. Pick a Name (slug ^[a-z0-9][a-z0-9_-]{0,63}$), add steps with + Job / + Parallel group / + Branch (job pickers badged git/cronomicon), reorder with ↑/↓, tick schedules to make it cron-driven, leave Enabled on, and Create workflow (or Save). Each job step's Advanced ▼ reveals its optional label, its Inputs (A12) rows (§7.5), and per-step retry overrides (Retries · Backoff (s) · On error). A read-only canvas preview renders beneath the form; Graph editor (Advanced) → switches modes.
• Graph editor (Advanced) — the visual canvas, and the only place to author nested pipelines (branch-in-branch, parallel-in-branch), which the linear list cannot represent. A metadata panel (name · description · Enabled · schedules) sits beside a structured step tree — + Job / + Parallel / + Branch in each lane (a parallel group's lane offers only + Job: containers can't nest inside a parallel), a green Pass and red Fail arm under each branch, and ⋯ per-node advanced fields — above a live rendering of the graph. Illegal edits are blocked as you make them (pickers only offer legal upstream producers), a status line reads “✓ Valid graph” or counts the highlighted issues, and the server dry-run validates again on save.

On the canvas, drag a job's handle onto a downstream job to wire an env input (A12 — §7.5), and drag a node's body to arrange the graph — the hand-made layout saves with the workflow (purely cosmetic; it can never affect execution order) and Reset layout returns to automatic arrangement. A minimap appears once the graph grows past ~14 nodes. Dirty state shows “• unsaved changes” and leaving prompts “Discard unsaved changes to this workflow?”. The Simple editor button switches back only while the graph has no nesting (its tooltip explains: “This graph nests parallel/branch steps — not representable in the linear editor”). Delete workflow (cronomicon-source only) is available in both modes behind a confirm.

7.5 Passing data between steps (A12)

A producing job prints a marker line on stdout; a downstream step consumes it as an injected environment variable.

echo "::cronomicon-output name=VERSION::1.4.2"

steps:
 - type: job
 name: build # emits VERSION
 - type: job
 name: deploy
 inputs:
 DEPLOY_VERSION: # becomes $DEPLOY_VERSION in the deploy job
 fromStep: build
 fromOutput: VERSION

• Authorable in-app too: in the editor, add a row under the consuming step's Inputs (A12) — ENV_KEY ← upstream step · output — via Advanced ▼ (Simple) or the ⋯ inspector (Graph); or simply drag the producer's handle onto the consumer on the canvas. The Git YAML above is the equivalent declaration.
• KEY must be an env-var-style identifier (letters, digits, underscores; not starting with a digit). Markers are captured from the raw output before redaction.
• A missing or failed upstream output resolves to an empty value, deterministically — it does not fail the run.
• Branch conditions use the same outputs: type: job_status (passes when a referenced job succeeded) or type: output_match (compares a captured output via ==, !=, contains).

8 View Reference: Scripts

A read-only catalog of the reusable executable units synced from GitLab. Scripts are always Git-authored — there is no create/edit form here; you commit YAML (or a raw script file) to the repo and sync. All three Scripts routes (list, detail, body content) are RequireSession only — no elevated gate — so any signed-in user can read a script, matching the Git repo it syncs from.

• Columns: Script (name + description, plus a highest-severity lint chip when present), Type (run-type badge), Source (command / inline script / file), Tags, Used by (job count), Created On, Last Edited. Like the other catalogs, a Tag filter dropdown is available.
• ↻ Git Pull (top-right) triggers a repo-wide re-sync (jobs, scripts, schedules, workflows). It is asynchronous — the button shows “Pulling…”, then “Pull started — list will refresh.”
• A job detail's scriptRef → link deep-links here (/scripts?focus=<name>); the view fetches that script directly (so it resolves even past the catalog cap), opens the folder containing it, and auto-expands it.

8.1 Folder browsing & the catalog list

Scripts (and Jobs, Workflows, Schedules) can be organized into sub-folders in the GitOps repo and are browsed as a file-system tree. The four catalogs share one component:

• Breadcrumb + drill-in. A breadcrumb (root crumb Scripts + clickable path segments) sits above folder rows — each a 📁 with the folder name and a right-aligned “N items ›” immediate count (folders first, then leaves, sorted case-insensitively). You drill one level at a time; the current folder lives in the URL as ?path=. An empty folder reads “This folder is empty.”
• Keyboard nav. With a folder row focused, Enter or Space opens it; Backspace or Esc goes up one level (ignored at the root, so there are no dead ends).
• Search flattens the tree. Typing in Search replaces the tree with a flat result list across all folders, each row labelled with its full repo-relative path. Clearing Search returns to the tree.
• Catalog size. The Scripts list loads the whole catalog (all pages) up to a 1000-script cap. Above the cap it loads only the first 200 and shows “Large catalog (N scripts). Only the first 200 are loaded — use search to find a specific script.”, switching Search to a server-side query. (Jobs/Workflows load their full list in one call, so the cap is Scripts-only.)
• Paging. Whichever set is resident is then paged client-side by the shared “Show 25 / 50 / 100 entries” control (default 25) — the same pager used on Jobs and the Upcoming table. In flat Search it windows the already-filtered match list; in folder-browse it pages the current folder level (folders then leaves). The 1000-script cap and the first-200 server-search fallback above are unchanged — the pager only windows what is already loaded.

8.2 The expanded detail & the body

Expand a row for the metadata grid (Run type, Executor — “auto (from run type)” when unset, Source file, a 12-char Content hash with the full hash on hover, Synced time), the inline tag editor (SQLite-only, preserved on sync, editable by any logged-in user), an optional Lint section, the body, a “Variables this script uses” panel, a reference-bindings editor (§11.6) — with a Suggest from body button that scans the script to prefill likely Secret / Variable / SSH-key bindings — and the Used by reverse index (the job chips that reference it, or “…it is an orphan.”).

An inline command/script body comes straight from the database. A file-backed (scriptPath) body is fetched on demand from GET /api/v1/script-content/{name…} when you expand the row, and renders one of: “Loading…”, the file (with a Copy button), “Binary file (N bytes) — view in Git.”, “Empty file.”, “Could not read script file from the synced repository.” (a 409, e.g. not yet synced / renamed), or a “Truncated to 1 MiB — view the full file in Git.” note. The 1 MiB cap is display-only — execution and content-hashing are uncapped, so an oversized script still runs.

8.3 Body-lint warnings

Each body is scanned once per sync — on the same read used to compute the content hash — and findings are persisted as advisory metadata. A script with findings shows a Lint section: any danger-severity findings render first in a red banner, then every finding as a chip (the rule id, with the full remediation message on hover); the catalog row collapses them into one highest-severity summary chip with a count. Lint is purely advisory — a finding never blocks a sync, never drops a script, never flips the sync result, and never enters the content hash.

8.4 “Variables this script uses”

At sync time the body is also scanned for the environment variables it references, so you can see what a run needs to define before triggering it — the scope's Env Vars are not auto-injected. The detail panel lists each variable as a status chip: ✓ already provided (the name is defined as an Env Var or Secret), ● required & missing (the body gives no fallback), or ○ optional (the body supplies a default via ${VAR:-…}, shown as =default). The legend reads “✓ already defined as an Env Var or Secret · ● required · ○ optional (the script supplies a default).” The same panel is reused in the Run dialog and Job Composer, where each chip also gets a one-click + add.

• Shell-family aware. The extractor understands bash/sh ($VAR, ${VAR}; a default from ${VAR:-x}/${VAR:=x} marks it optional), perl ($ENV{VAR}), powershell ($env:VAR) and python (os.environ['VAR'], os.getenv('VAR'); a fallback in os.getenv('VAR', x)/os.environ.get('VAR', x) marks it optional). ansible/terraform are recognized but not yet analyzed — the panel notes “Variable detection isn't available for {runType} scripts yet.”
• Noise is subtracted. Variables the script assigns itself (NAME=, export, local, read, loop vars), shell special/positional params ($1, $?, …) and ambient vars ($HOME, $PATH, LC_*, BASH_*, …) are filtered out.

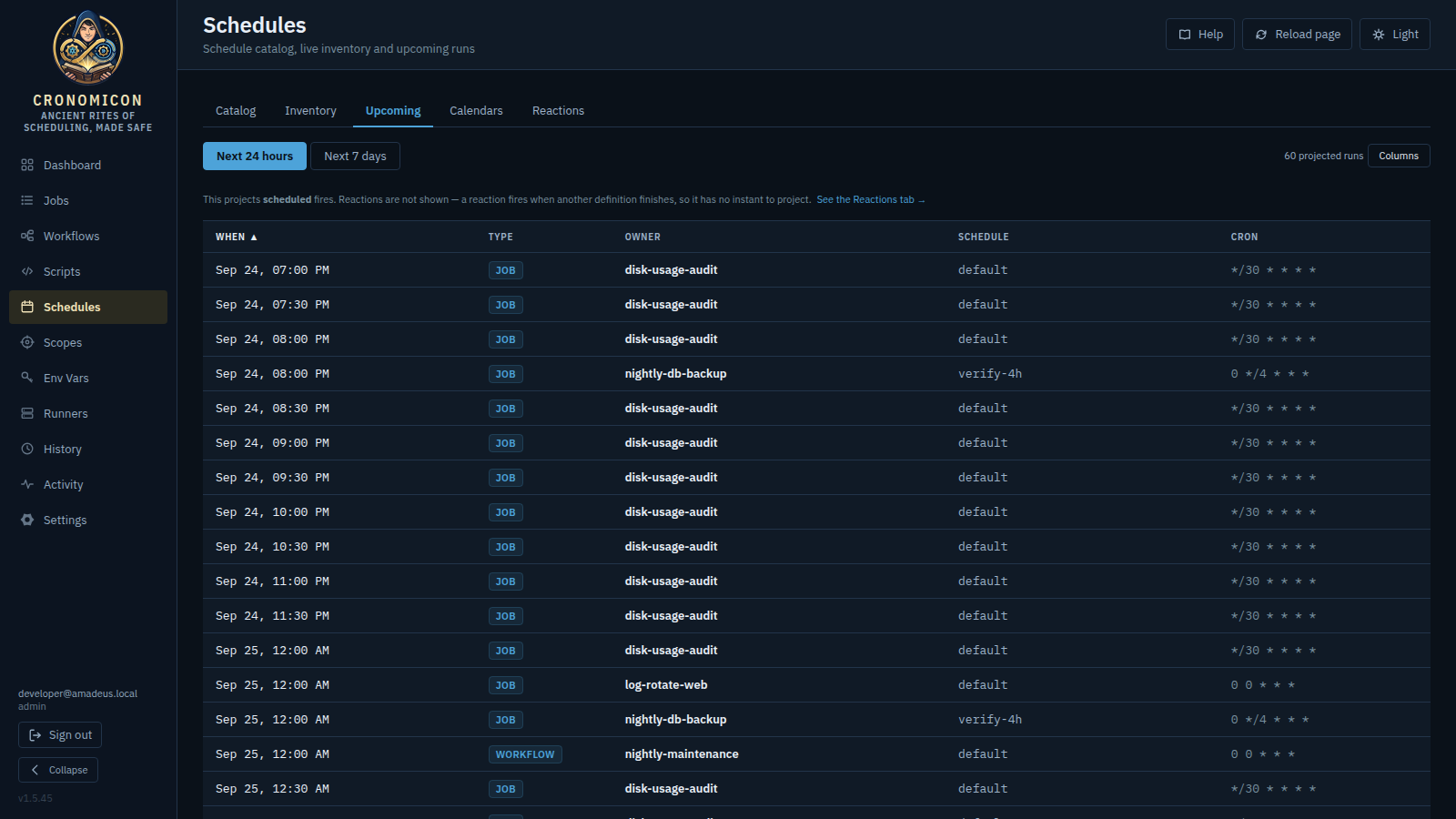

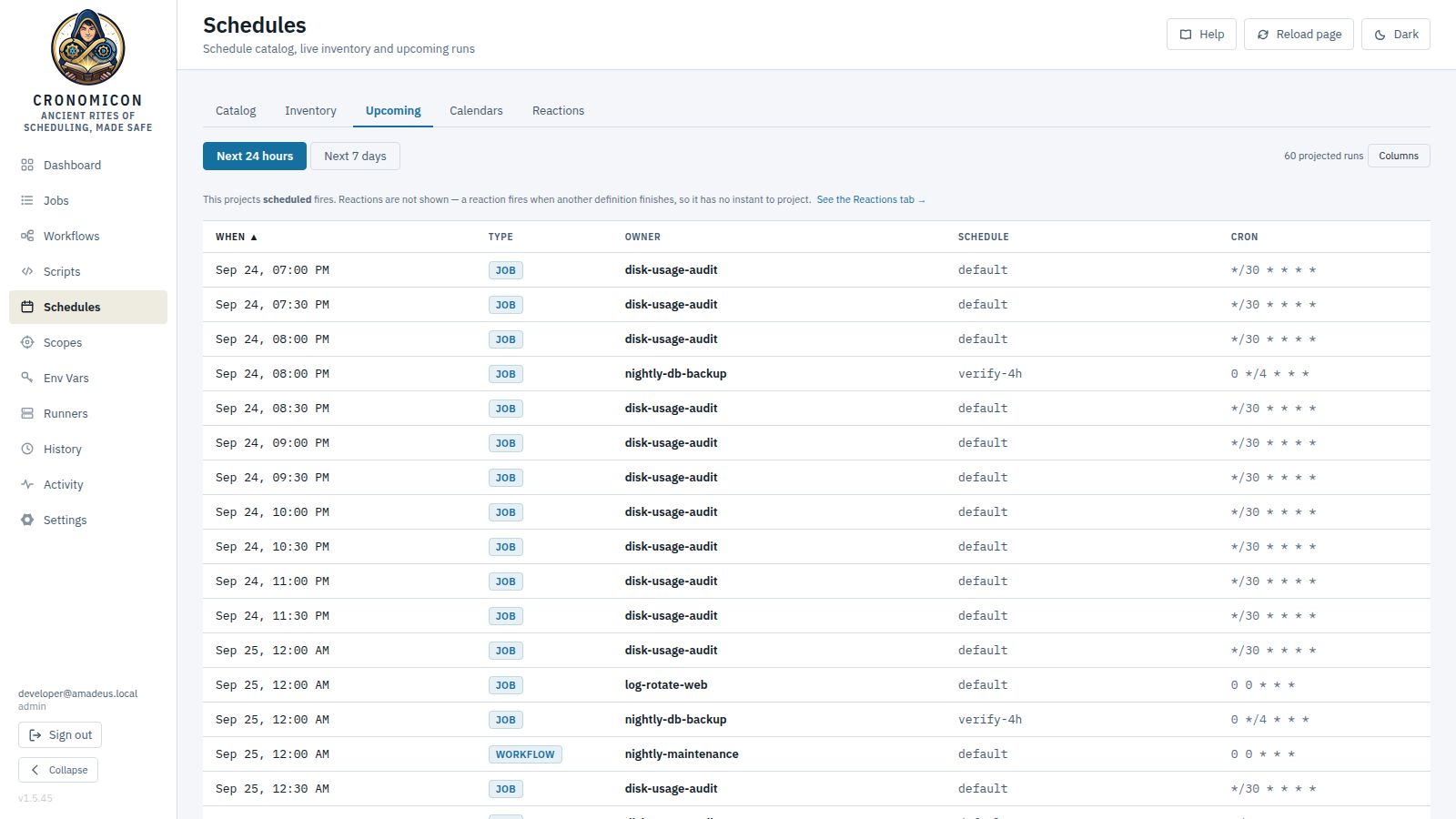

9 View Reference: Schedules

The single complete scheduling surface, with four tabs deep-linked via ?tab=. The default landing tab is Upcoming — a bare /schedules (and the /schedule redirect) opens on Upcoming so you see what fires next first; Catalog, Inventory and Calendars are a tab (or ?tab=) away. The Catalog tab also supports folder browsing.

9.1 Deleting an in-use schedule

Deleting an cronomicon schedule that nothing references is immediate. If it is referenced, the server returns 409 and the UI swaps the button to Force delete (N refs) — clicking it re-issues the delete with ?force=true, detaching the references.

9.2 Working calendars

A working calendar is a named set of wall-clock dates — your company holidays, a change freeze, your month-end close. It is not a time range, not a cron and not a duration: just a list of days, each with an optional label like “Independence Day (observed)”. That label is what a suppressed run says about itself afterwards, so it is worth filling in.

A schedule entry can name calendars in two roles, and the difference matters:

Both together are legal and useful — “only on fiscal-close days, but never on a holiday” — and when they disagree, skip wins. Naming the same calendar in both roles on one entry is refused as incoherent.

You bind calendars wherever a schedule is authored: the Schedule Builder, the inline schedules in Compose, and the Workflow Editor. In a Git-defined job or workflow, the same two keys are available in the YAML (skipCalendars: / onlyCalendars:) and name a calendar you authored here — calendars themselves are never Git-defined.

Authoring one

+ New calendar takes a name, an optional description, and the dates. You are not expected to type them one at a time: Paste a list accepts a block of YYYY-MM-DD,label lines, and Upload CSV or .ics reads a spreadsheet export or a calendar file in your browser. A line that is not a real date is reported by its line number and the rest are still added, so a slightly messy paste is not wasted.

A calendar for everything at once

Tick Apply to every schedule (global) and the calendar's days are skipped by every schedule in the system, whether or not any entry names it. That is how a change freeze is one checkbox rather than an edit to every schedule you own — and one un-tick to lift.

A global calendar is skip-only: it can never be used as a “run only on days in” list, and a calendar already bound that way cannot be promoted to global. That combination would mean a job permitted to run only on days it is also globally forbidden from running on — an outage reachable by two individually sensible clicks.

Because a fleet-wide freeze that nobody can see looks exactly like an outage, when a global calendar covers today both the Dashboard and the Schedules view say so by name, along with the day's label.

What calendars do not gate

A calendar gates scheduled fires. It never blocks a person:

Proving what didn't run

A suppressed fire is not silence. It is recorded in History as a Skipped run naming the calendar and the day's label, and both the Executions and Workflow Runs tabs carry a Calendar filter — one calendar, or any calendar suppression — so “every run suppressed by company-holidays this fiscal year” is one selection. The filter is in the URL, so it is also a link you can send someone.

One deliberate exception: “run only on days in” suppressions are not recorded unless the calendar ticks Record run-day (only) suppressions in History. Skips always record, because that is the compliance question; a business-days-only schedule would otherwise write an audit row every weekend and drown the signal.

Deleting a calendar something uses

Deleting a bound calendar is refused, naming what binds it; Delete anyway forces it. The bindings then remain as names pointing at nothing, and they fail in the direction each was written for: a dangling skip binding lets the schedule fire (a visible, correctable policy breach), while a dangling run-day binding means it never fires again (silence). Both are flagged as missing in the Inventory tab and in the schedule editors.

9.3 Reactions — when this finishes, run that

Inside a workflow, one job depends on another only for the runs the workflow itself started — if a job fired from its own schedule, from the Run dialog, or from a different workflow, nothing downstream in that workflow notices. A reaction lifts that out: when this definition finishes, run that one, in any combination of jobs and workflows, whichever way the first one was triggered.

It is the fourth way something can start — alongside a cron schedule, a repeating interval and a one-shot — and the only one with no clock. That single fact explains most of what follows.

Which outcome you are waiting for

You choose what counts as the trigger. The four choices, and the one nobody guesses:

Why stopped is its own outcome rather than folded into failure: treating a deliberate human intervention as a failure fires your rollback automation while you are already hands-on fixing the thing. Treating it as nothing is just as bad in the other direction — killing a hung job would silently skip the cleanup that releases a lock, exactly when something is already wrong. So it is yours to route.

Where you author one

On the definition that runs — in the Job Composer or the Workflow Editor, beside its schedules, because a reaction is simply another way for it to start. A Git-defined job or workflow carries its reactions in its own YAML instead, under spec.reactions; the in-app editor says so rather than letting you write something the next sync would erase. A reaction can only be attached to a definition that already exists, so save it first.

Cronomicon refuses reactions that could never work: one pointing at itself, one naming a definition that does not exist, one that would close a loop (the refusal names the whole path), and one whose upstream you are not allowed to see.

The Reactions tab

Schedules → Reactions is the one place the whole picture lives, and it exists because reactions are otherwise invisible: a workflow draws its own steps, but a reaction lives on the other definition and appears in no projection. Search either end of an edge at once (you rarely know which side of the arrow the thing you are looking for is on), filter by owner, or tick Group by what they watch to read the same list as finishing this starts these — which is how you spot one job quietly setting off four others. A reaction whose watched definition has been deleted is flagged missing and counted at the top: it can never fire, and it is kept rather than deleted so you do not silently lose something you authored.

Each job and workflow also shows both directions on its own detail panel — Reacts to and Reacted on by. The second is the one nothing else can tell you, and the one you want when deciding whether stopping a job is safe.

Deleting something a reaction watches

Deleting a job or workflow that reactions watch is refused, and the refusal names them — a reaction that vanished because somebody removed an unrelated upstream would be a silent loss of something you built. The confirm stays open and offers Delete anyway, which deletes the definition and keeps its watchers, flagged missing here: they can never fire until you repoint or delete them. It works the same way wherever you delete — the Jobs and Workflows lists, the Composer and the Workflow Editor.

Two things this is deliberately not. It is not the Git-source refusal, which looks similar and cannot be forced: a Git-defined definition is deleted by removing it from the repo. And a definition removed from Git is simply pruned — there is no request to refuse and nobody to ask — so the sync always succeeds and leaves the watchers dangling. That is why missing is a supported state rather than an impossible one.

Why did this run? — and what did it set off?

In History, a reaction-fired run names the run that caused it and links straight to it; every run offers the reverse (jobs and workflows separately, since a reaction can start either). A Trigger filter narrows History to everything a cascade produced. All of it lives in the URL, so “what did last night's failure set off?” is a link you can paste to someone.

10 View Reference: Compose, Schedule Builder & Publish

The three in-app authoring surfaces. Compose and the Schedule Builder need the Compose capability (Admin-only) and write cronomicon-source definitions; Publish to GitLab needs the Publish capability (Admin or Approver) and writes Git definitions. All three gates are enforced server-side, not just hidden in the SPA; non-admins (or non-approvers, for Publish) see a notice instead of the form.

10.1 Compose (the Job Composer)

The Composer builds an cronomicon-source Job from existing pieces — no Git round-trip — and makes the composable-primitive formula concrete: a Job is a binding of Script × Schedule(s) × Scope × env. It offers round-trip-safe full-state editing, inline schedules, the scope-context and Advanced panels, job-level env, the script-variables hint, declared Run inputs, and searchable Script/Scope pickers with a unified Schedule section, so it is considerably richer than a plain form. Saving a new job goes live immediately, badged CRONOMICON. The route is admin-only and enforced server-side (POST/PUT/DELETE /jobs sit behind session → CSRF → admin); a non-admin gets the notice “In-app job composition requires the Compose capability (Admin-only).”

The form, field by field

Script, Scope & the Executor lock

Two guards keep an un-runnable combination from being saved silently:

• Runner-only executor lock. When the selected script's run type is ansible or terraform, the ssh option is disabled (rendered ssh — unavailable), a stale ssh choice is auto-reset to runner, and a hint reads “{runType} needs a runner with the local toolchain — SSH can't run it.” (The backend mirrors this: an explicit ssh override on ansible/terraform is rejected 422 invalid_executor.)
• Scope-capability advisory. If the chosen scope declares its supported types and the script's type isn't among them, an amber note appears: “⚠ Scope {scope} doesn't declare {runType} support. The job is allowed, but runs may stay queued waiting for a capable runner.” This is advisory only — it never blocks the save (distinct from the hard executor lock above).

Environment (job-level) & the merge order

The Environment (job-level) editor declares a plaintext env map injected into every run of the job, independent of which schedule (or manual/workflow trigger) fired it. Its helper text spells out the precedence; the effective run environment is layered least- to most-specific, later wins on a key collision:

direct run: job-level env → firing schedule's env → per-run override
workflow step: job-level env → parent-workflow env → step inputs

A manual run has no schedule layer; an all-empty merge is a strict no-op. Job-level env is plaintext and not redacted (same rule as schedule env) and never enters the per-run override audit envelope — keep real credentials in the scope secrets system, not here.

Run inputs — declared values for the Run dialog

A Job can declare run inputs that an operator is asked to supply, or to confirm the default of, in the ad-hoc Run dialog before a manual run; the answers ride the existing per-run env override path. Each row of the Run inputs editor is a name (the bind key) plus an optional label, default, and a comma/newline options list (a non-empty list renders the Run-dialog field as a <select>), and a required toggle. + run input adds a row; ✕ removes one.

This is a different surface from Environment (fixed values, applied to every run) above it, and the distinction is the one most often got wrong: a job-level env row is a value baked into the job and never asked; a run input is asked. There is no “required” flag on a job-level env row — a row left with an empty value simply ships an empty string to every run and nobody is ever prompted. The Composer flags exactly that case and offers a one-click Convert to a Run input.

Selecting a Script that declares its own inputs (spec.prompts in scripts/*.yaml) auto-seeds them into an empty list, so a job composed from someone else's script inherits the author's required set by default. It never overwrites a list you have already edited.

Enforcement — what happens when a required input has no value

Once a job declares at least one required input, a “When a required input has no value” selector appears:

• Warn (default) — the run proceeds and the unfilled name is recorded on it. An operator is still shown the gap in the Run dialog and must tick the Run without it/them escape.
• Block — any request to run the job is rejected 422 prompt_required until every required input has a value. The Run dialog offers no override for such a job (the run-without escape is hidden, not merely disabled — the button reads N answers still needed), and a direct API call is refused the same way. Choose this for jobs that must never run on a guess.

A workflow step can supply a run input: a step's A12 inputs are layered over the job env and the parent workflow env when the child run is built, so an input named by a step input is satisfied normally.

• Import detected variables. When the selected script has detected variables, an + Import N detected variable(s) from script button seeds a row per referenced variable not already declared (each row's required inferred from whether the script supplies a ${VAR:-default} fallback). The seed is a curation aid, not part of the run path; you then label, drop, or adjust each seeded row before saving.
• Drift lint (advisory). If the script references a variable that no prompt declares and no job/schedule env or scope var/secret provides, an amber note lists them — “⚠ The script references N variable(s) that no prompt or env declares: …”. Advisory only; it never blocks the save.

Schedule — reusable & inline in one section

The “× Schedule(s)” half of the binding is one Schedule section with two labelled sub-blocks (bind nothing and the job is manual-only — “No schedules bound — the job will run manually only.”; otherwise the recap reads “Bound: N reusable + M inline.”):

• Reusable (shared) — checkbox rows binding first-class Schedule definitions via scheduleRefs. Each row shows a source badge (CRONOMICON/GIT), the cron and its human form, the next (app zone) fire time, and an env: {keys} summary. A small + New schedule button on its own row deep-links to the Schedule Builder.
• Inline (this job only) — job-local entries authored right here and sent as schedules[] (with sourceRef: null). + Add inline schedule adds a card with a slug-validated name, a row of cron preset buttons, a cron box with a live human-readable + next (app zone) preview (5- and 6-field accepted), and a per-schedule plaintext env editor; any inline env trips the same “plaintext, not redacted” warning.

Scope context, Advanced & Effective binding

• Scope context (read-only, shown once a scope is set) separates “Injected at run time” — job-level env + the firing schedule's env (schedule wins on a key clash) + any per-run override, rendered as key chips — from “Available to {scope} (not auto-injected)” — the scope's defined Env Var and Secret keys (🔒), which are used only for SSH-key resolution and log redaction and are never auto-added to the process env. Secret keys are read via GET /env-secrets; values are never revealed here.
• Advanced (collapsed disclosure) exposes Timeout (seconds) (0 = none), Retries, Concurrency policy (Allow — run overlapping / Forbid — skip if already running / Replace — cancel the running one) with a Concurrency key box that appears only when the policy isn't Allow, and Tags (comma-separated).
• Effective binding — a read-only recap of what will be saved, in the form script (runType) × N reusable + M inline × scope (hosts; vars / secret keys) × executor (the schedule term reads Manual when nothing is bound).

Edit, save & delete

Edit mode (/compose?id=…) loads an existing cronomicon job and prefills every field; Save sits beside a Cancel (→ Jobs), and the form stays populated after a successful save. A Git-authored job replaces the whole form with a read-only notice (and the backend independently 409s a write to a Git job as a backstop). Delete appears only in edit mode, below a divider: a Delete job button that expands to “Delete this job and its schedule bindings?” with a confirm; deleting a Git job fails 409 “Only cronomicon-source jobs can be deleted in-app.”

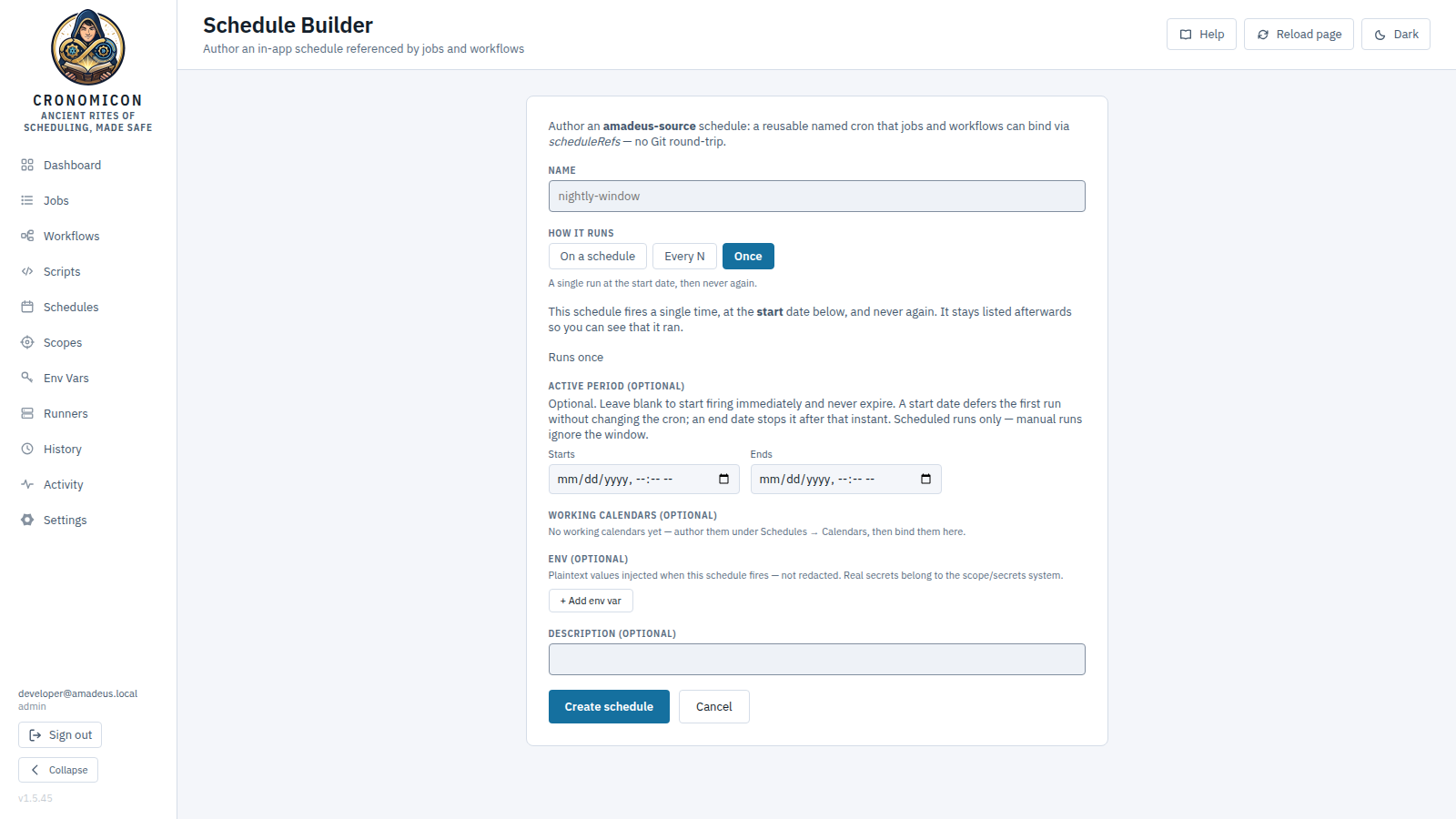

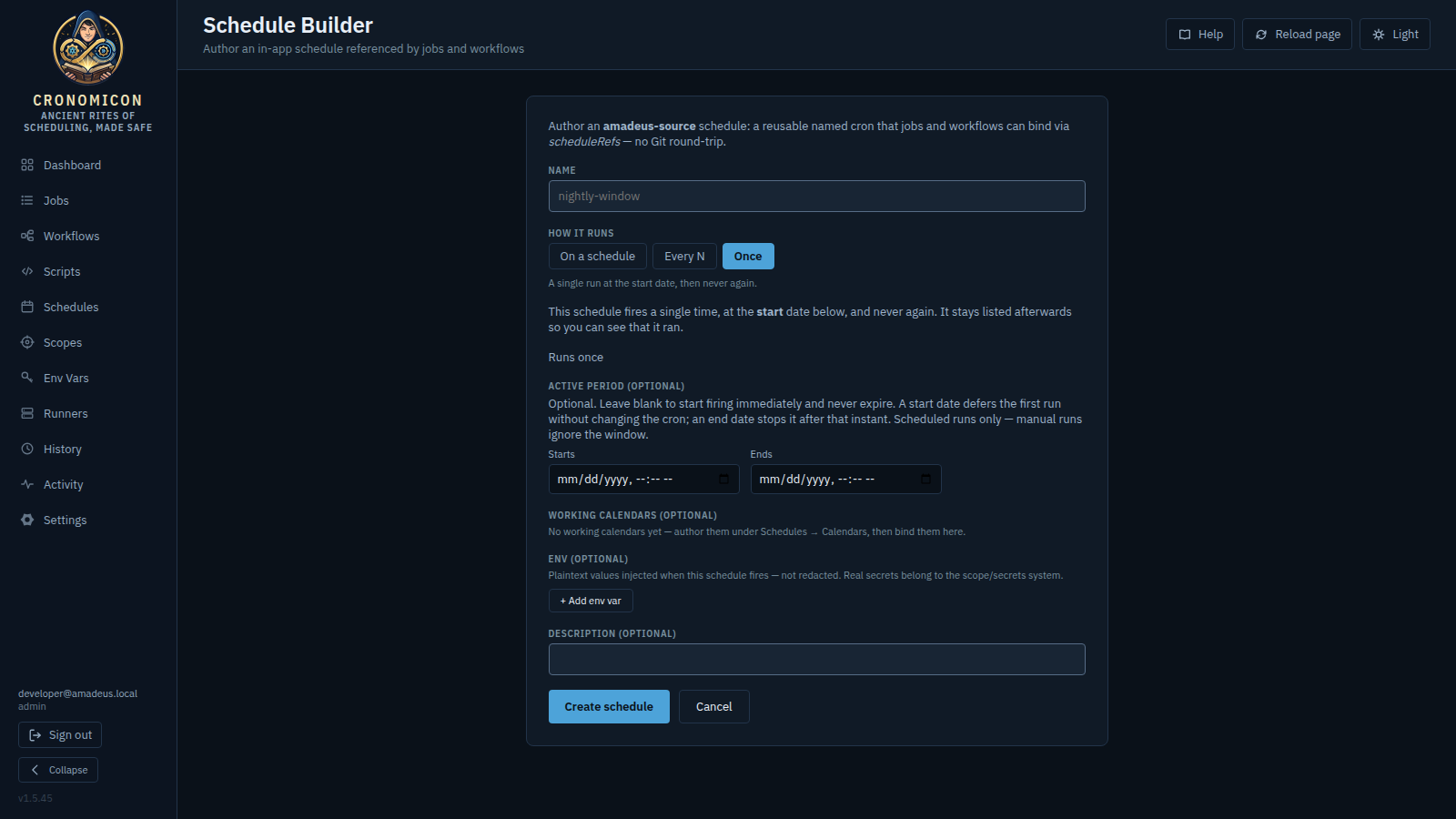

10.2 Schedule Builder — author a reusable cronomicon schedule

Creates/edits one cronomicon-source schedule: Name (immutable on edit), a How it runs mode (see below), the rule for that mode — Cron (with a presets… dropdown; accepts 5- and 6-field cron) or an Interval — an optional Active period, optional Working calendars (§9.2), optional plaintext Env rows, and a Description. A live preview under the form shows the rule in plain words plus the next three fire times, whichever mode you are in. Reached from Schedules → Catalog → + New schedule.

10.3 Publish to GitLab — author a job into Git, safely

Reached from Jobs → + Publish to GitLab. A two-panel builder: edit a job's name/run-type/command/description and schedule entries on the left; a live kind: Job YAML preview and the resolved base_sha on the right. Publish to GitLab → Confirm & Publish commits to the working branch using an If-Match: <base_sha> optimistic lock.

The builder shows no push history of its own — it links to History → Schedule Pushes, the single source of truth for the publish audit.

11 View Reference: Scopes & Env Vars

Two adjacent primitives on two pages. Scopes (/scopes) is the where — host groups, declared run types, the Ansible inventory behind them, and the network-isolation Agencies that own them; Env Vars (/env-vars) is the what — the Variables, Secrets and SSH Keys a run carries. Scopes has its own top-level page (the Agencies catalog lives there too); the Env Vars page is exactly Variables · Secrets · SSH Keys. Reading either page is open to any signed-in user; every write is server-gated — scope, agency and SSH-key writes need Configure app, while Variable and Secret writes need Manage env vars, and both permissions are held only by Admin. A non-admin sees the data but no mutation controls (the endpoints 403 regardless). All three Env Vars tabs also carry operator-authored tags — a Tags column, a Tag filter dropdown, and a click-to-edit tag editor in the expanded row, matching the Scripts/Jobs/Schedules/Workflows catalogs — but where catalog tags are editable by any signed-in user, tag writes here carry the tab's own gate (Manage env vars for Variables and Secrets, Configure app for SSH Keys). Tags are free-form SQLite-only labels; on Secrets and SSH Keys they are plaintext metadata stored entirely outside the encryption envelope, so the reveal/rotate paths are untouched.

11.1 Scopes /scopes

A scope is a host group plus a declared set of Supported run types. Source is Cronomicon (authored locally) or Git (imported from an inventory sync). The table lists Scope · Source · Description · Supported Types · Hosts · Updated; click a row to expand its detail.

• + Add Scope → Name (^[A-Za-z0-9_-]+$), Description, Supported run types (bash ansible terraform powershell perl python — toggle chips; bash is always included (the “bash floor”) and the set can never be empty), and the membership input — a segmented control switches between Hosts List (one host per line) and Ansible INI Inventory (paste the full inventory), so an inventory-driven scope can be authored complete at creation. A pasted inventory is validated inline — a literal secret value is rejected, line-numbered — and projected atomically on save. Editing a scope loads its existing inventory into the form; switching an inventory scope back to a flat hosts list clears its projection. (The expanded row's inventory editor, below, serves later edits.)
• ↻ Re-sync from GitLab re-imports inventories and reports the delta — e.g. “Re-synced N scopes — N capability changes — N pragma errors.” Git scopes are read-only here; use Edit in GitLab ↗.
• The expanded row shows the Capability origin (Local — set in scope editor, Sidecar file, Pragma (top of inventory file), or Inferred from inventory shape — inferred types render with a dashed border), the inventory file / sidecar path, the per-scope Agency selector and inventory panel below, and (Cronomicon scopes only) the host chips and a Delete Scope button. A pragma parse error flags the row with ⚠ and falls back to inferred types.

Ansible inventory — advisory projection & in-app authoring

Expand a scope to reach its Ansible inventory. The raw inventory file is what actually executes — it ships verbatim to ansible-playbook -i — so the parsed view carries an advisory — not authoritative badge (“The parsed view is a navigational aid. Execution always uses the raw inventory file via ansible -i.”). The projection renders each [group] with its children, host chips, group vars and a Host vars list, read-only.

• Authoring (Cronomicon scopes). Edit / Add inventory opens an INI-only editor; Upload accepts a .ini/.txt file. Save inventory validates through the same pipeline GitLab sync uses. Git-source inventories are not editable here.
• Import hosts → SSH (shown once an inventory exists and previews) materializes the inventory's hosts into the SSH registry so the in-app executor can dial them, reporting “Imported to SSH inventory: N created, N updated, N skipped.”

11.2 Agencies /scopes → Agencies

The second tab on the Scopes page. An agency is an operator-managed network-isolation zone; binding a scope to one constrains which runners may execute that scope's jobs. Agencies are operator-owned and never synced, so a binding survives a GitLab re-sync.

• + Add Agency → Name, Description (“which network / tenant is this?”). Bind a scope to an agency from its expanded row on the Scopes tab — the selector defaults to “— None (general pool) —” with the note “only a runner in this agency can execute this scope's jobs.”
• Runner membership is assigned on the Runners page (the Agency Membership matrix), never self-declared by an agent. With a scope bound and runners assigned, hard-isolation dispatch is live: a job dispatches only to a runner in its agency; an untagged job goes only to the general pool (runners with no agency). With no agencies defined at all, dispatch is unchanged.
• The Online runners column reports per-agency coverage; a count of 0 is flagged “0 → jobs will wait.” A run bound to such an agency sits queued with a “Waiting: no online runner in agencies 'X', 'Y'” reason until a member comes online (warn-only — it is never auto-failed). The agency itself says so too — see below.

One membership axis

Agencies are the single membership axis for scopes, secrets, variables, SSH keys and runners — the whole isolation model, on one dimension:

• A scope may belong to several agencies. A run inherits its scope's set and may be claimed by a runner in any of them.
• A secret or variable is injectable only into runs whose agencies overlap its own — and the scope rule applies as well. Both must pass.
• An SSH key is bindable only by jobs whose agencies overlap.

Editing membership

There is deliberately no single membership grid (rows for every scope, secret, variable, SSH key and runner against a column per agency): past about a dozen agencies such a grid leaves you ticking checkboxes with no way to see which row you are on. Membership is edited where each question is actually asked:

• “What is in this agency?” — the Agencies tab. Expand a row and you get its contents grouped by kind, each member removable with an ✕ and an + Add… picker per kind (needs Configure app). The agency's name stays on screen the whole time.
• “Which agencies hold this one row?” — an Agencies column on the row's own catalogue: Variables, Secrets, SSH Keys, Scopes and Runners each carry it.

A row belonging to no agency still reads unrestricted in words rather than showing a blank — that is a statement, not an absence, and it is the thing you most need to see before narrowing it. On Runners the same state reads general pool, because an unassigned runner may claim every department's unscoped work. A secret or variable shows its own scope (DB_PASS@prod) so two same-named rows are never confused.

One thing the editor refuses: removing a row from the agency that owns it. Transfer ownership first — an entity its own department cannot reach is never what was meant.

Expanding an agency

Each row on the Agencies tab expands to show what it contains, grouped by kind, plus the two numbers that decide whether work placed here actually moves:

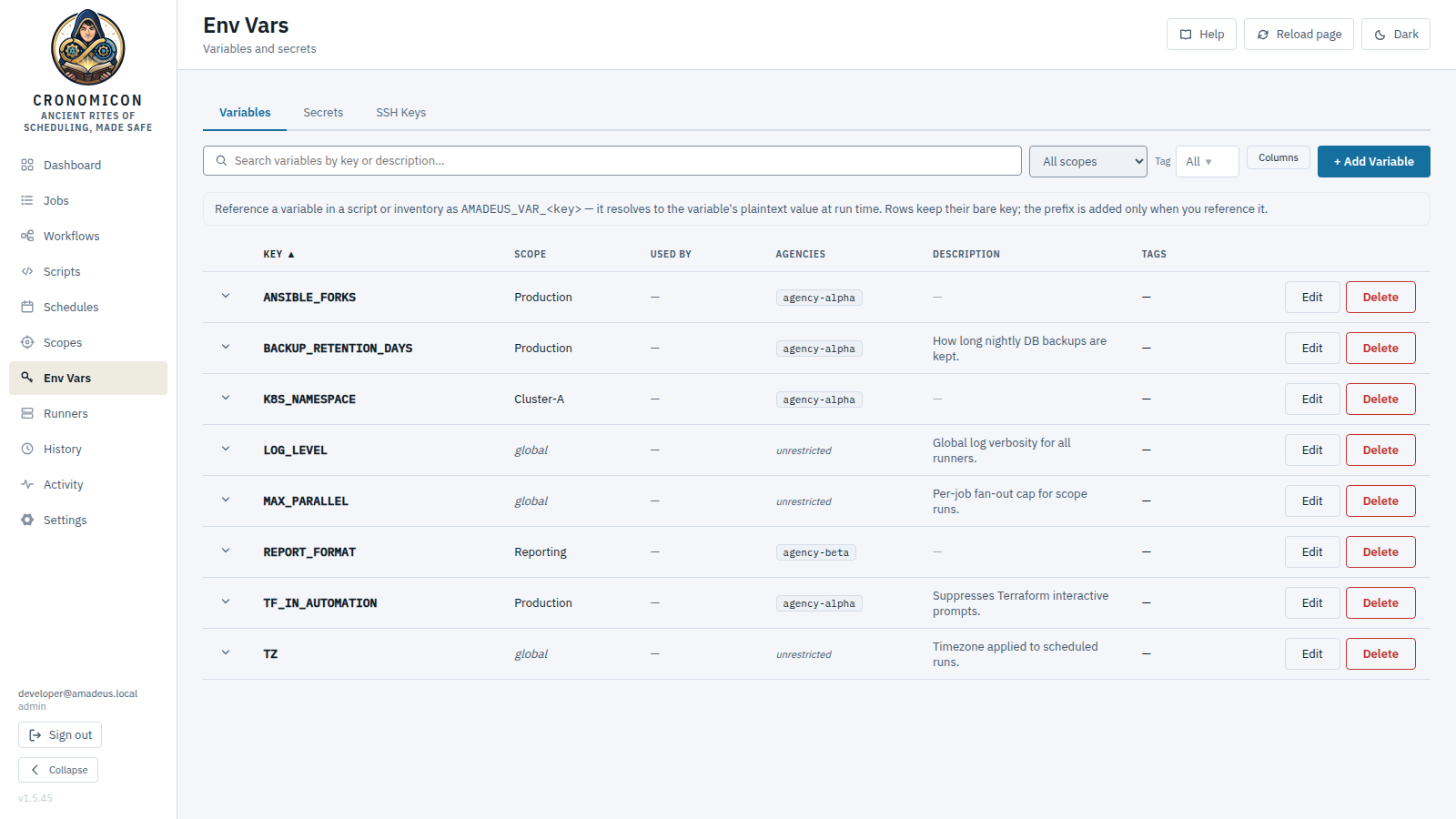

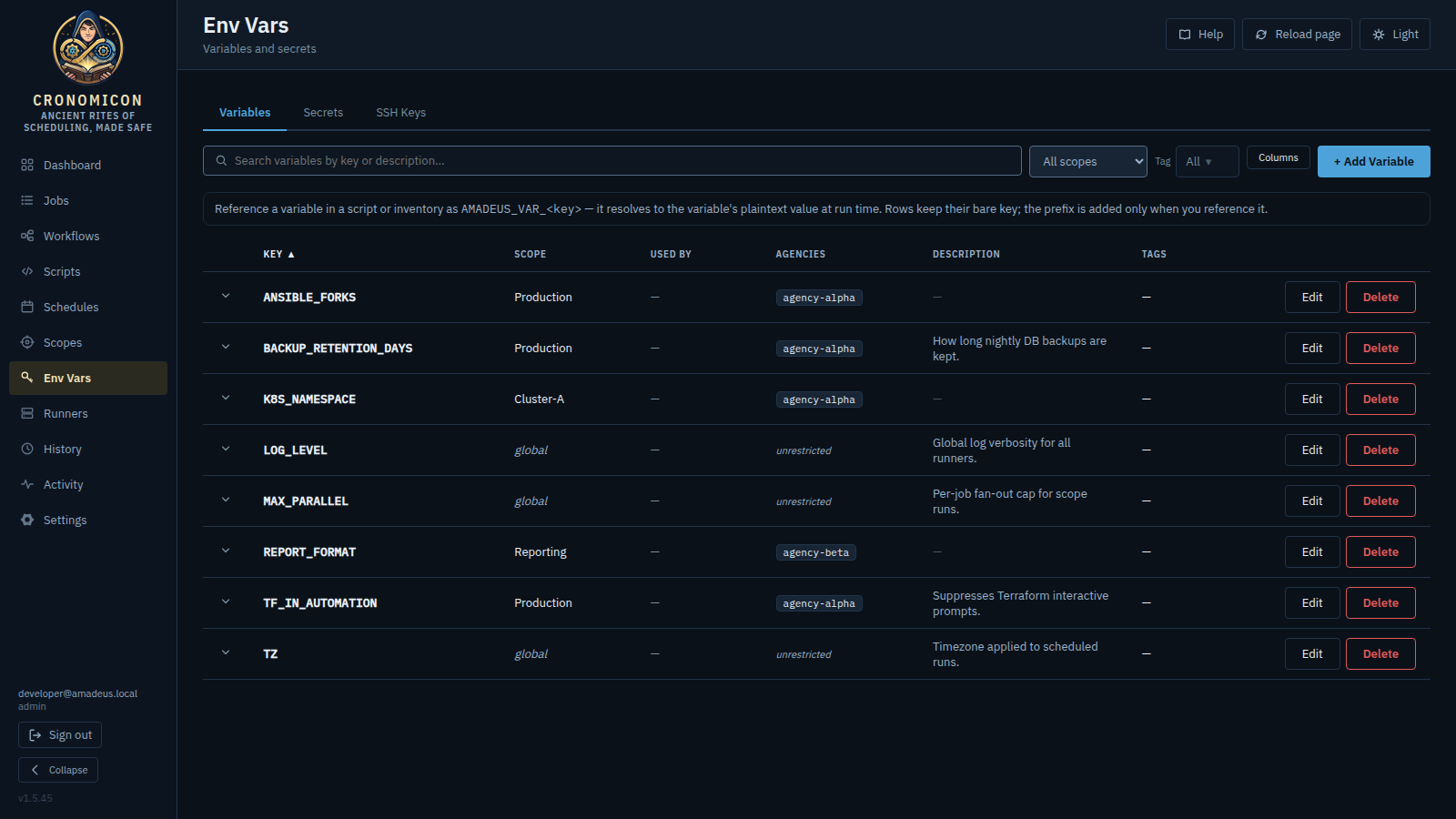

11.3 Variables (non-secret) /env-vars → Variables

+ Add Variable → Key (auto-uppercased to A–Z 0–9 _, immutable on edit), Scope (defaults to All), a multi-line Value (newlines preserved), Description. Values are shown in plaintext — put anything sensitive in Secrets instead. Variable writes require Manage env vars.

The create and edit forms also show the owning department beside the Key, for Variables and Secrets alike. It is deliberately display-only: ownership is fixed when the row is created and there is no transfer action, so an editable-looking control would promise something the server cannot do. It is shown at all because ownership is exactly what you are reasoning about when two departments hold rows under the same key name and a run gets its own department's value (§11.2).

Reading the Variables and Secrets tables

Two columns on both tables answer the questions you actually have before editing a row:

• Scope spells out global for an unscoped row instead of leaving the cell blank. The distinction matters: a global row is visible from — and injectable into — every scope, whereas a blank cell would be indistinguishable from “not loaded”.
• Used by counts the jobs and scripts that declare a binding to that row (see §11.6). Read it before you re-scope or rename anything: those are exactly the runs that will start failing closed. A — means nothing binds it, so an edit is free. Job counts only include jobs in scopes you can read.

A scope filter sits beside the search box on both tabs, with an explicit Global only option — the fastest way to find which of several same-named rows is the one you meant.

11.4 Secrets (Stored or Vault)

Each secret's Source is Stored (encrypted in Cronomicon) or Vault (a reference resolved at run time; the Vault option appears only when Vault is configured).

• Stored: paste the value (whole PEM/OpenSSH keys including BEGIN/END lines are preserved). It's AES-256-GCM envelope-encrypted and never echoed back. Expand the row and click Reveal to unmask — every reveal writes a Change Log entry with your email and the key.
• Vault: store a path like secret/data/myapp#KEY_NAME. Vault secrets cannot be revealed through Cronomicon.
• Migrate to Vault (stored secrets, when Vault is wired) is one-way and deletes the local ciphertext — no undo.

11.5 SSH Keys

The third Env Vars tab is a first-class store of SSH key credentials — a typed, envelope-encrypted entity, not an opaque secret referenced by name. Its writes are Configure app-gated (distinct from the Manage env vars gate on Variables/Secrets). Each row shows Label · Type · Fingerprint (SHA256, click to copy) · Source (Stored / Vault) · Tags · Used By (the count of hosts/bastions referencing it) · Bound By (the jobs/scripts that declare a CRONOMICON_KEY_<label> binding to it, a different question from Used By: a key can authenticate hosts without any job binding it, and vice versa).

• + Add SSH Key → Label, Description, and the Private Key — paste the whole unencrypted PEM/OpenSSH key including the BEGIN/END lines (passphrase-protected keys are not supported). It is validated on save, encrypted at rest and never echoed back; on success the dialog shows the derived Key Type · SHA256 fingerprint and a copyable public key to drop into each target account's authorized_keys.
• Edit can rotate in place: leave New Private Key (rotate) blank to change only metadata, or paste fresh material to re-key. Delete is guarded — a key still in use forces a Force Delete that detaches it from its hosts/bastions first (they fall back to no key until reassigned).

11.6 Reference bindings & run-time injection

Cronomicon never auto-injects a scope's Env Vars into a run. Instead there is an explicit, opt-in path: a job or script declares which Secrets, Variables and SSH keys it consumes as reference bindings, and at dispatch Cronomicon resolves and injects only that declared set into the run. Scope Env Vars you do not bind are not added — declaration is the whole point.

Derived reference names

Every Variables / Secrets / SSH Keys row carries a canonical derived reference name — shown in the expanded row in monospace with a copy-to-clipboard control and a one-line hint. The four reserved prefixes are a closed set:

Because these prefixes are reserved, row names must be POSIX identifiers ([A-Za-z_][A-Za-z0-9_]*) and may not start with CRONOMICON_ — a violation returns 422. SSH-key labels additionally drop - and . (they would break the derived CRONOMICON_KEY_<label> name) — use snake_case. And operator-authored env everywhere else (job env, schedule env, per-run overrides, workflow step inputs, inventories) may not define any CRONOMICON_* key — a lookup('env','CRONOMICON_…') reference is fine, but a literal CRONOMICON_*= assignment is rejected at save/ingest.

Declaring bindings on a Job or Script

Expand a Job row (§6.2) or a Script row (§8) and use the reference-bindings editor: pick a kind (Secret Variable SSH Key), type the reference name (a datalist offers your known Env Vars rows), and Add; each binding is one row carrying a coloured kind dot, the derived CRONOMICON_* reference, the verdict, the state pill, the reason in words and a remove control. A bound name with no matching Env Vars row shows a ⚠ — “the run will fail closed unless it is created.” Rows render for healthy references too, so the section stays a complete inventory of what this job or script consumes rather than a list of only its problems. Saving is a full replace of the set (Save references / Reset). On a Script, Suggest from body scans the script text to prefill likely bindings and lists any bare-name references that rely on the name-based fallback. Editing bindings needs the Manage env vars permission (without it the editor is read-only chips) and is scope-checked — a job's bindings gate on the job's scope; script bindings require an unrestricted manager.

Injecting under a different name — the alias

Beside the name box is an optional “inject as” field. Leave it empty and the value arrives under the row's own derived name. Fill it in and the value arrives under that name instead — the editor previews the key it will land on as you type.

This exists for one situation, and it is a common one: a shared job that each department must run with its own credential. If the catalogue already holds TEAMA_SUDO and TEAMB_SUDO, each department binds its own row and aliases it to the single name the script or playbook reads — one job, one body, every department's credential. (If the two departments can instead each own a row under the same name, you need no alias at all: a run resolves its own department's row automatically. See Administrator Manual §6.1g.)

The Run dialog carries the same field on its per-run reference additions (§6.5), for the one-off case: run this job, this time, with that credential, under the name the body expects. Type the alias, then pick the row.

What happens at run time

• Only the declared set is injected, from stored secrets or Vault-backed ones through the identical path — transparent to you. Values are masked/redacted in logs and are never written back to the run's stored env; they exist for the connection only.
• Fail-closed: if a declared reference is missing, out of your scope, or otherwise unresolvable, the run fails rather than running without the secret it declared (look for reasons like vault_unreachable in History §12.3).
• Run context is always available without declaring it: CRONOMICON_RUN_ID, CRONOMICON_RUN_JOB, _JOB_SOURCE, _SCOPE, _TYPE, _TRIGGERED_BY, _EXECUTOR.
• SSH-key material (CRONOMICON_KEY_*) is delivered only on runner-dispatched runs — the key is materialized to a 0600 tmpfs file, exposed as CRONOMICON_KEY_<name>=<path>, and wiped at run end. On the in-app SSH executor a key binding is refused: the executor connects from Cronomicon and cannot place a key file on the target, so a run that resolves to it is rejected rather than started without the key — a manual run gets a 422 naming the key, a scheduled fire records a skipped run, a workflow step fails the step, a reaction records a delivery error, a file arrival is refused. The executor is decided per run (per-run override, then the job's executor, then the global default), so the same job runs fine when overridden to a runner. To use the key on the target instead, bind it as a Secret and have the job body write the file.
• Runner trust: a runner only receives resolved secret values if an admin has enabled its Secret injection toggle (Runner detail, Configure app-gated) — grant it only to runners you trust with the blast radius.

Checking a binding before you run it

At dispatch, a bad binding produces a failed run whose message says just “reference X is unavailable for this run”. That vagueness is deliberate — a run must not become a way to probe for secret names in scopes you cannot see — but on its own it would leave you with no way to tell a typo apart from a scope mismatch. So Cronomicon answers that question where you declare the binding, before any run exists.

Each saved row in the reference-bindings editor carries a verdict and, next to it, the scope the row actually resolved from:

The reason is written out in words on the row itself rather than being hover-only, and it is attached to the row for screen readers as well as sighted readers. An unresolved reference names the thing you configure — “no SSH key named …”, not the database table behind it. On a Script, which has no scope of its own, references are checked against the global scope — the answer that holds for every job; a reference reported as living only in a named scope still resolves for jobs in that scope.

The Run dialog repeats the check against the scope this run will actually target, inside the Targets section. This is the only place that can be right when a job's own scope is All and you pick a specific scope with the override: references resolve against the run's scope, not the job's. If anything will not resolve, the count appears in the collapsed panel summary and the panel opens itself, the same way an incompatible scope does — so a fold can never hide a run that is going to fail closed.

12 View Reference: Activity & History

Two “what happened” surfaces. Activity is a live, color-coded event stream; History is five tabbed records, including the Executions log where you diagnose failures.

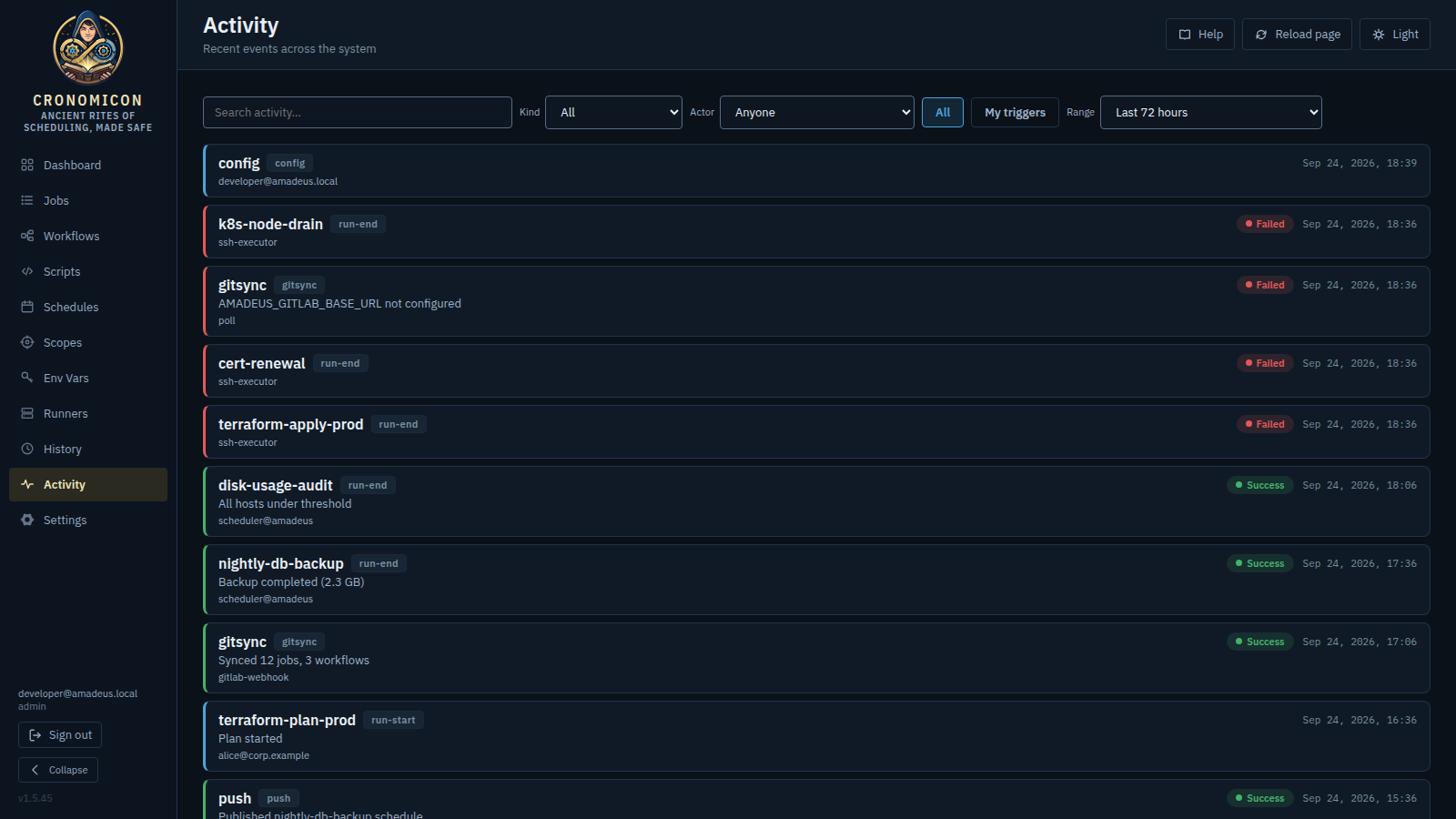

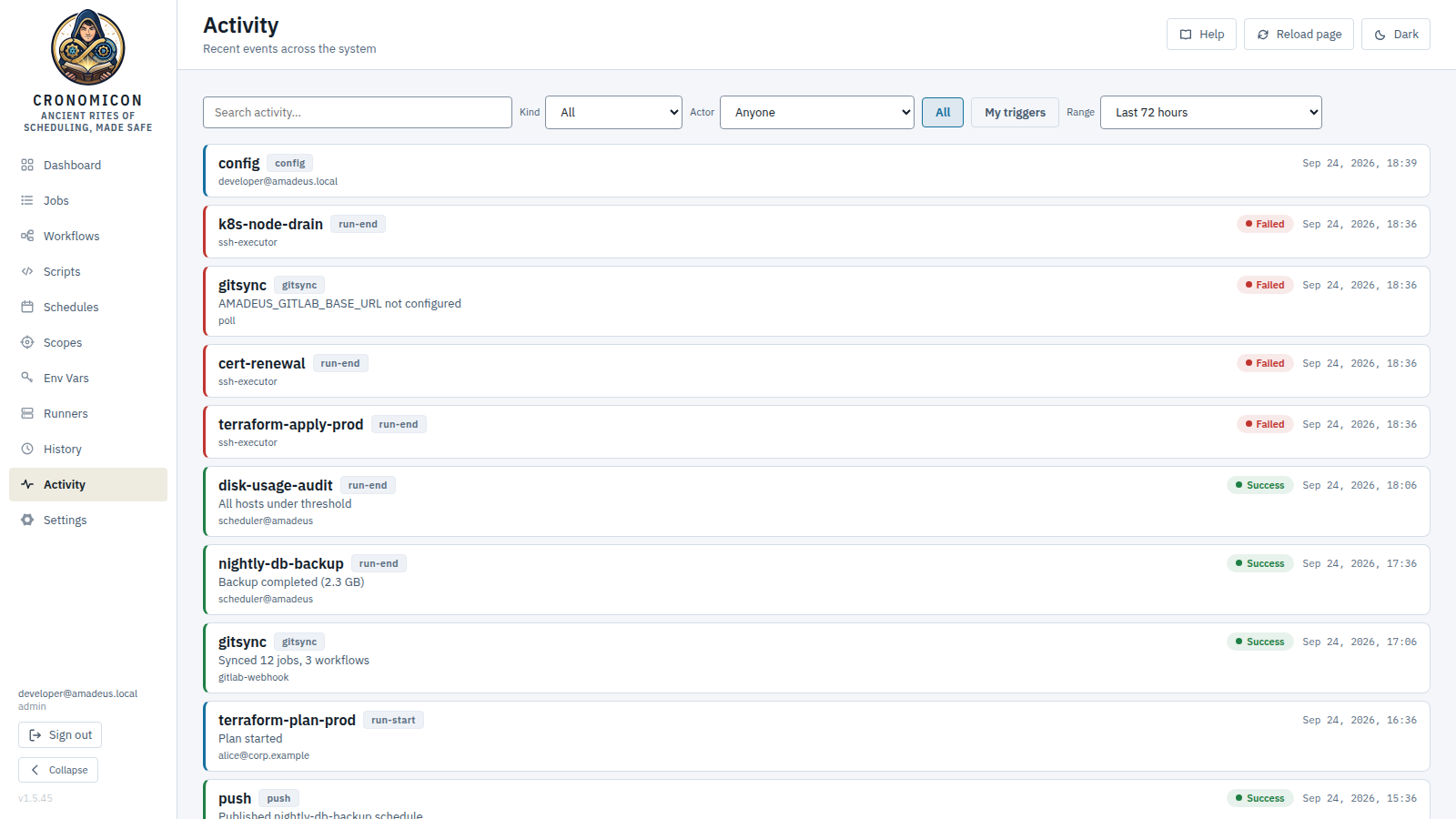

12.1 Activity feed

Reverse-chronological cards, each tagged with a kind — run-start, run-end, config, push, gitsync, ssh-test — and color-coded by outcome on a 3px left border (green success / red failure / orange warning / blue neutral). Every control is a server-side filter over the whole window, not over the page on screen: the search box (job, workflow, actor, kind, summary), a Kind select, an Actor select grouped Users / Runners / System (it lists whoever appears in the current window), and a Range select — Last 72 hours by default, then 7, 30 or 90 days, or Custom range… for absolute From/To instants (either end may be blank; the inputs take your browser's clock and say so). The My triggers chip is the Actor filter pointed at you, so setting one clears the other. A pager under the feed counts the filtered total (1–25 of 312 events), and a filtered empty state names what it searched for, with a Clear filters reset and a jump to the full 90-day retention.

Cards that involve a runner carry a chip with the runner's name; on a run an operator stopped, both the person and the runner show. Drain, key-scan and resync events name the operator who requested them.

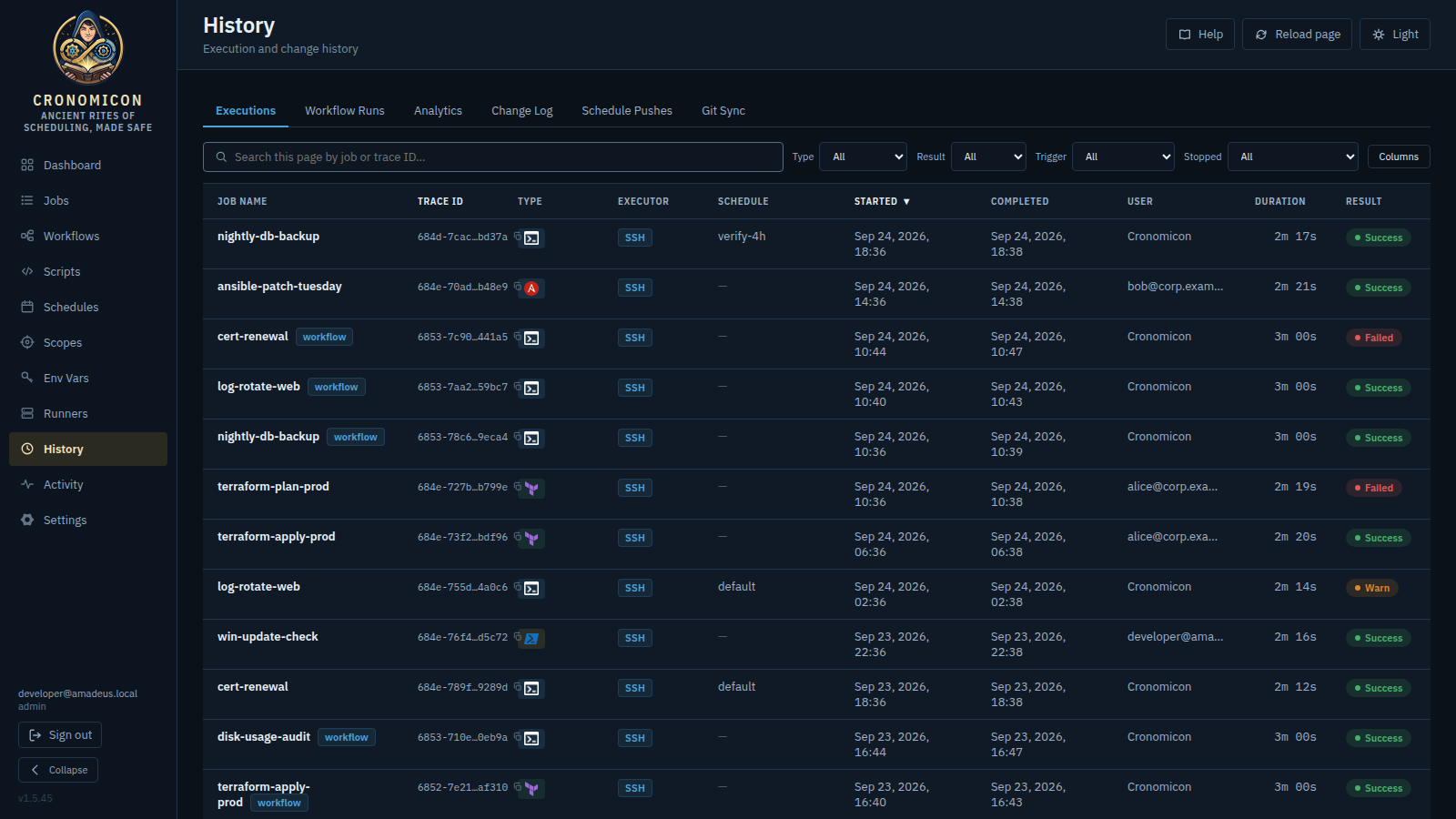

12.2 History — five tabs

Deep-linked via ?tab=; each tab keeps independent search/filter and does server-side pagination — it fetches one page at a time as a {page, pageSize, totalItems, totalPages, items} envelope, so the whole retained history is reachable. The page-size selector offers 25 / 50 / 100 (default 25); the server clamps any request to a maximum of 200 rows.

12.3 Diagnosing a failed run

1. Open History → Executions and set Result = Failed (or click the Dashboard “Failed (24h)” tile, which deep-links here).
2. Search by job name or paste the full trace ID. A red Failed badge marks it; an amber Lost badge means the runner agent vanished mid-run (runner_lost) — a runner problem, not a script error.
3. Click the row. Read Exit Code, the status reason in parentheses (e.g. failure (runner_lost), killed, drain_timeout, vault_unreachable, orchestrator_lost — a workflow child run reclaimed because the orchestrating workflow was lost to a server restart or the 24h stale limit; plain Failed badge, not the amber Lost badge), and Killed By if present.
4. Read the “Log Output (redacted)” pane — secret/env values are masked as [REDACTED] but error text is intact. “No log output recorded” means the process produced no captured output.
5. If the run is still running (or queued), the pane tails itself: a ● Tailing marker appears beside the heading and new output lands every few seconds, transferring only what was appended — not the whole log again. The view sticks to the tail; scroll up to read something and it holds your position, with a ↓ Resume following control to jump back. When the run finishes, one final read collects the last lines and the polling stops. The same behaviour applies wherever a live run's log is open — a workflow step's drill-in, or Recent runs on Jobs and Runners. Logs are masked when they are written, so a partial read shows exactly what a full read would.

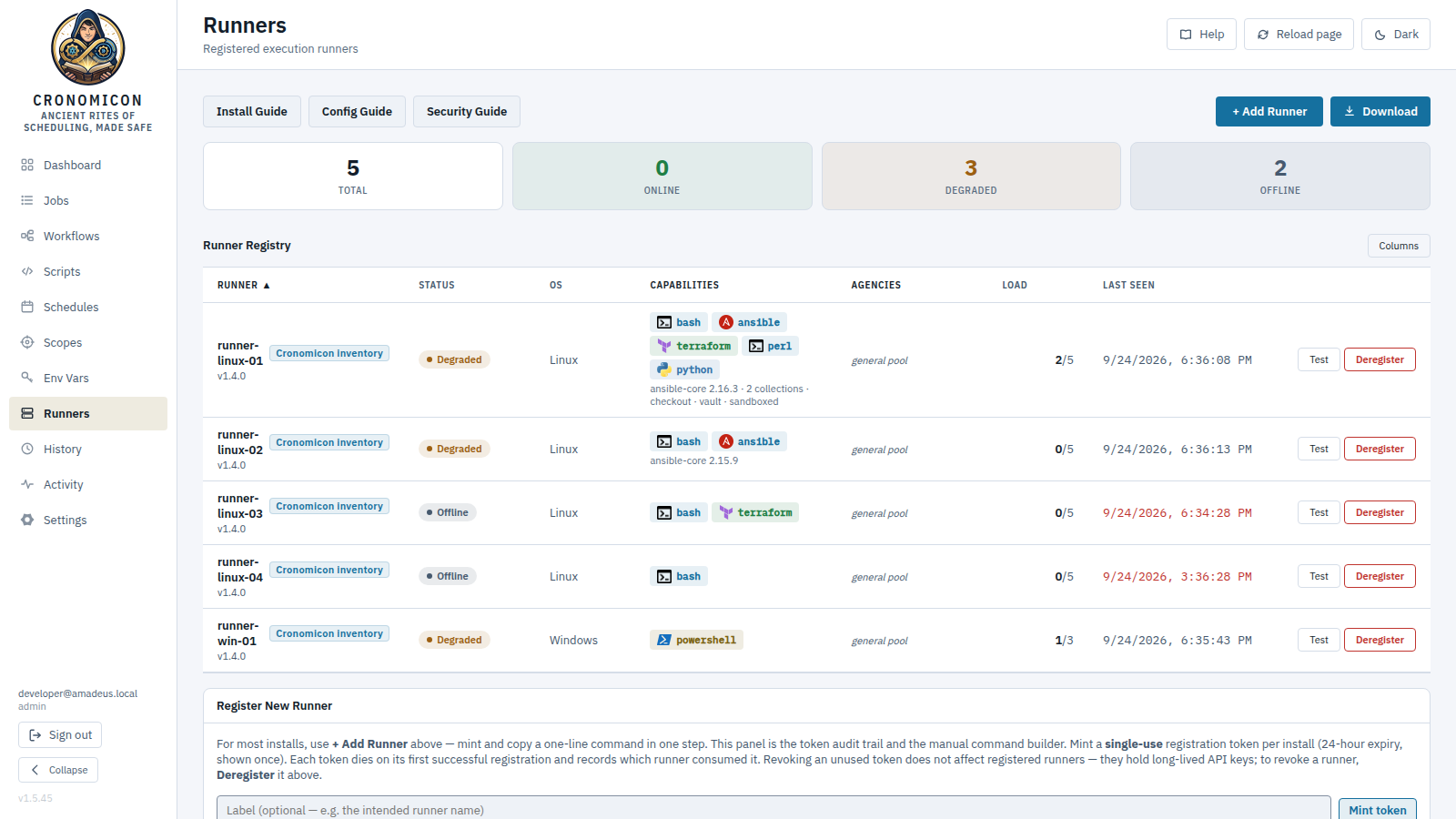

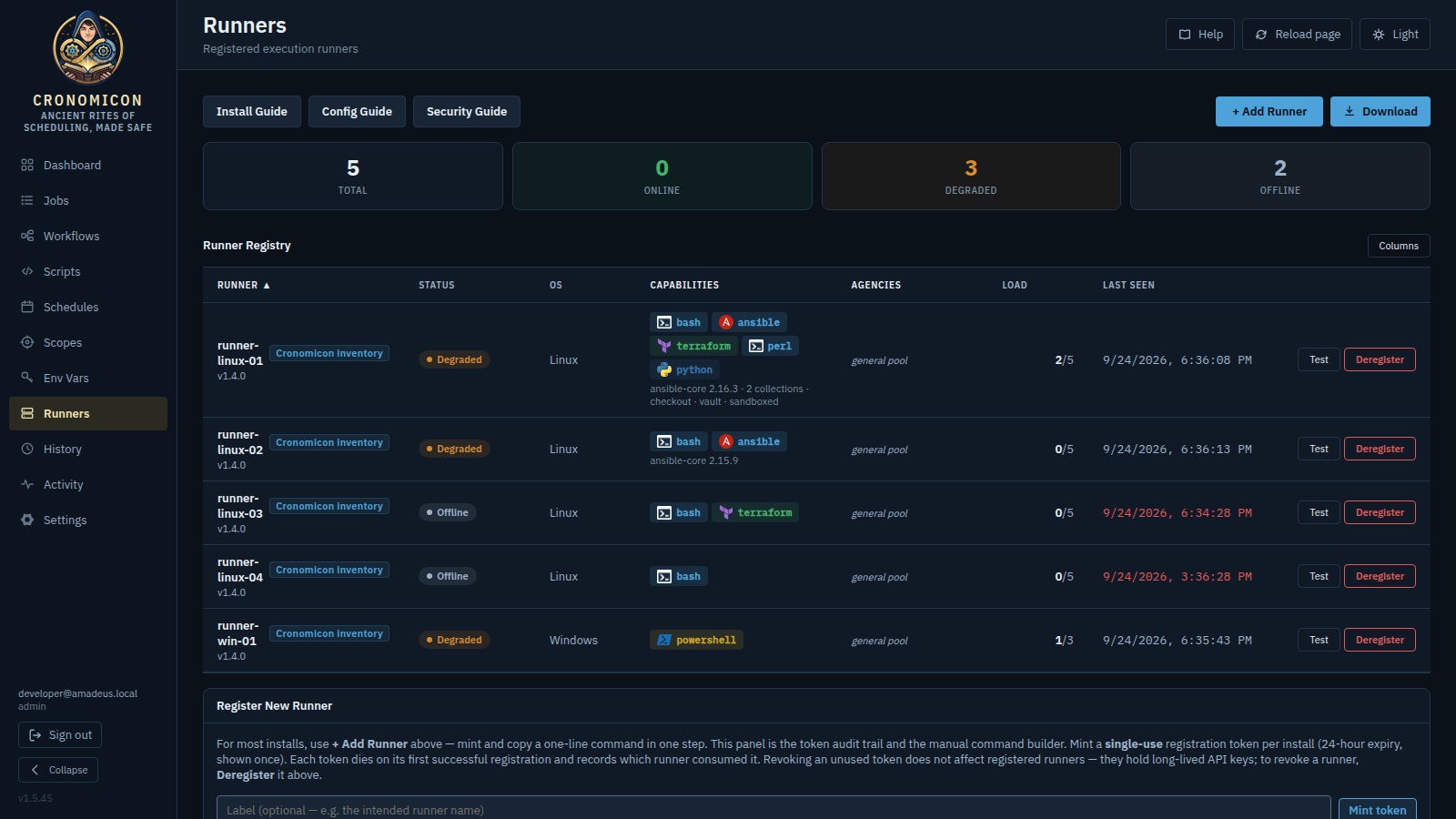

13 View Reference: Runners

The fleet console for your distributed execution agents. (Despite living next to “Settings” conceptually, Runners is its own top-level sidebar item.) Deep operational detail — installing, the two-token model, security — is in Runner Fleet Management (Administrator Manual); this is the screen reference.

13.1 Status tiles & the registry

Tiles summarize the fleet: Total, Online, Degraded, Draining (only when >0), Offline. The Runner Registry table shows each runner's name + version, status, OS, capability chips, an Agencies column of network-isolation membership chips (a runner in no agency reads general pool, not a dash — it serves every department's unscoped and system work, which is more reach than a departmental runner, and — read as missing data), load (active/maxConcurrent, red when saturated), last-seen, and an inventory chip beside the name:

Status: Online Draining (N active) Degraded Offline  ·  Capabilities: bash ansible terraform powershell perl python  ·  Inventory: cronomicon inv local inv

Beyond the run types, a runner may advertise feature capabilities, and each carries a hover hint naming what it permits — a chip you cannot interpret is no help when it is the reason a run is stuck queued. become-file can accept a privilege-escalation password delivered as a wiped file; vault can decrypt Ansible Vault content; checkout can materialise a Git checkout project; collection:name has a specific Ansible collection installed. A job that requires one of these waits for a runner that has it rather than running without it (§16).

Actions. The compact row carries only Test and Deregister (which removes the runner and revokes its key immediately). Everything else lives at the top right of the expanded detail — one action home, matching Jobs and Workflows:

• Resync — forces the runner to re-declare its current config in place on its next poll: same id and key, active jobs unaffected. Config changes usually propagate automatically after a restart, so this is the don't-wait lever.
• Scan keys — scans a target's SSH host key so you can approve it.
• Neither carries a protocol-version requirement. The server's protocol floor tracks the current wire protocol, so an agent old enough to ignore one of these buttons cannot register, redeclare or even poll — it is refused outright rather than accepting a click that does nothing. The house rule elsewhere in the app: a precondition disables with an explanation; only irrelevance hides.
• Drain — finishes active jobs, then goes offline.
• Copy upgrade command — copies the one-line root command that upgrades (or reinstalls) the agent on that host. It is always offered whatever the version badge says: it is also the reinstall command, and “up to date” compares version strings, so a locally-built agent can read current while speaking an older protocol.
• ⚙ Settings sits on the Managed settings section header — the thing it edits — and carries the pending-change dot.

Resync, Scan keys and Drain are offered while the runner is reachable — online or degraded. A degraded runner is still heartbeating and still holding work, so it is the one state where you most need them. offline hides them — there is nobody there to ask.

Below the registry, admins (the ConfigureApp permission) get an Agency Membership grid — runners as rows, agencies as columns, one checkbox per cell, and a single bulk Save Membership — assigning each runner to zero or more agencies (the network-isolation zones in the agencies catalog, §11). The saved sets are exactly what hard-isolation dispatch matches a run against (Agency-based isolation, Administrator Manual). Membership is operator-assigned only — a runner can never self-declare its agencies; with no agencies defined yet, the grid prompts you to create them first.

13.2 Adding a runner & the registration-token panel

+ Add Runner (top-right of the view) is the one-click path: it mints a token and hands you a single flagless command — curl -fsSL <server>/install/<token> | sudo bash — to paste on the host as root. The /install/<token> endpoint bakes the server URL, token, and agent-binary download into the script, and capabilities auto-detect on the host, so nothing rides the command line. A download-inspect-run variant is offered in the dialog for shops that don't pipe curl into sudo (the saved file is already personalized). The registry's empty state links to the same dialog.

The Register New Runner panel below is the token audit trail and the manual command builder. Mint token creates a single-use crn_reg_* token (24-hour expiry) for one install, with an optional label (e.g. the intended runner name). The plaintext is shown only once at mint — use Reveal/Copy immediately, or copy the install command with the token filled in. The token list below shows each token's label, expiry, and status — including which runner consumed it (the audit trail). Revoke kills an unused token; a used token stays in the list as its audit record. Installing several runners? Mint one token per host.

13.3 Runner guides & the Download button

The view's top bar carries three buttons that open the operator guides as standalone pages in a new tab, styled like this manual:

The guides are single-sourced from documentation/runner-install.html, runner-manage.html, and runner-security.html — the very fragments operators read in the repo — wrapped at build time into full styled documents, so editing the fragment updates the page. Each page carries its own table of contents, cross-links to the other guides and both manuals, and a light/dark toggle that shares this manual's theme preference.

On the right of the top bar, a blue Download button downloads the runner install script from the app itself (/runner-install.sh — the same file the Install Command fetches; no external repository access needed from the target host). (There is no in-view Refresh; the page-level Reload page in the top app bar reloads everything, and the registry refetches on its own after drain / deregister / token actions.)

13.4 Advanced: pre-authored install (the helper)

For most installs, use ＋ Add Runner (§13.2) — one click, one flagless line on the host, everything else auto-detected or tuned on the runner's row afterward. For a pre-authored install — config management, containers, or a fully-specified one-liner — the collapsed Advanced: pre-authored install panel at the bottom of the view authors the artifacts. Pick a profile to show just the relevant fields: SSH task runner surfaces key/known_hosts custody; Ansible control node surfaces the checkout/vault secret-file inputs and collapses SSH custody behind an advanced toggle; Custom shows everything. Capabilities default to auto-detect on the host (an override toggle reveals the run-type chips). It emits three copy-paste artifacts — an annotated runner.env, the matching install one-liner (with the key/known_hosts/CA and — — checkout/vault secret-file flags), and the docker run variant. Mint a token first (§13.2) and it's filled in automatically. Max jobs, sandbox caps, and checkout policy are not helper inputs — set them on the runner's row (⚙ Settings) after it registers (§13.1).

14 View Reference: Settings

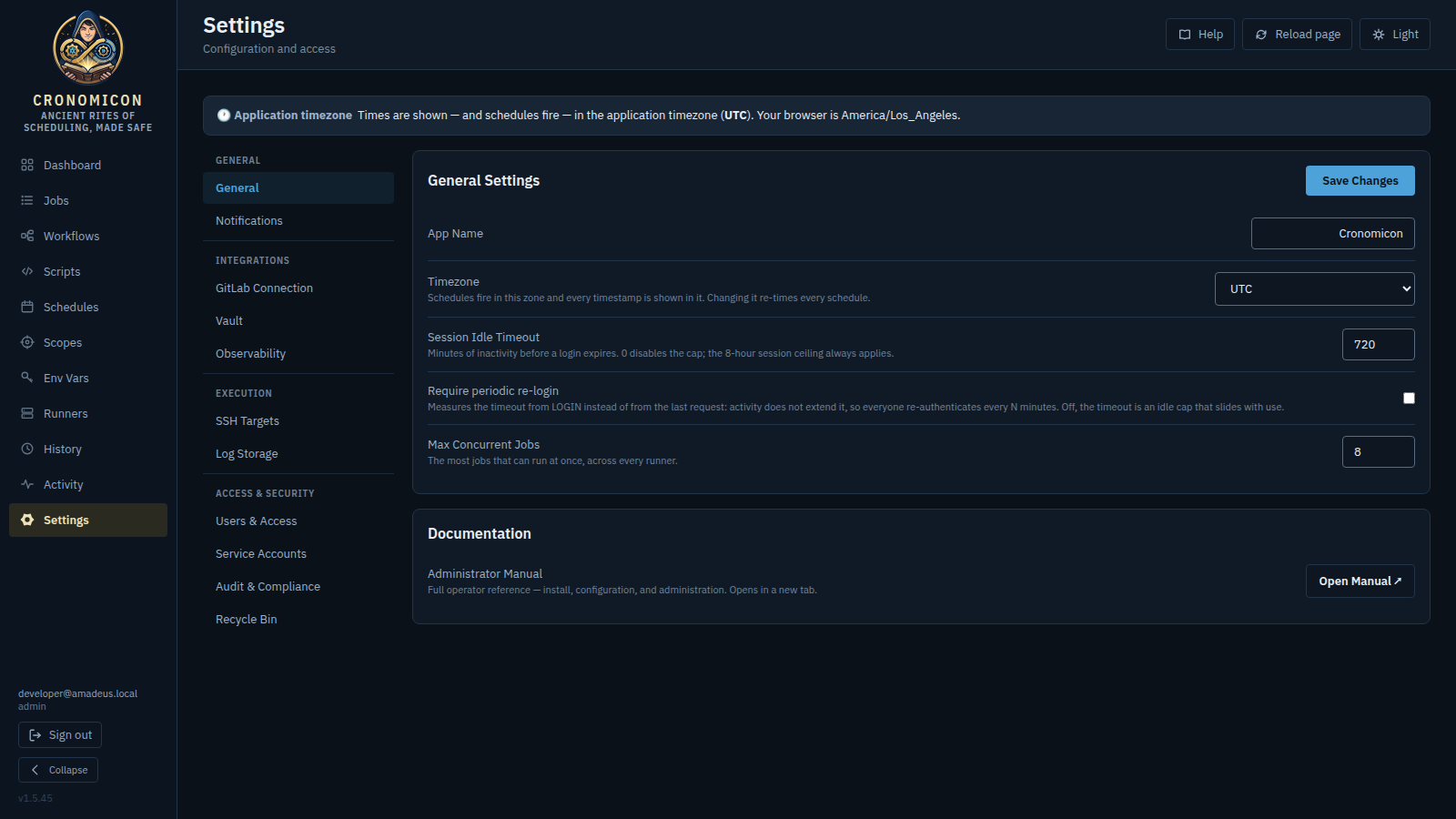

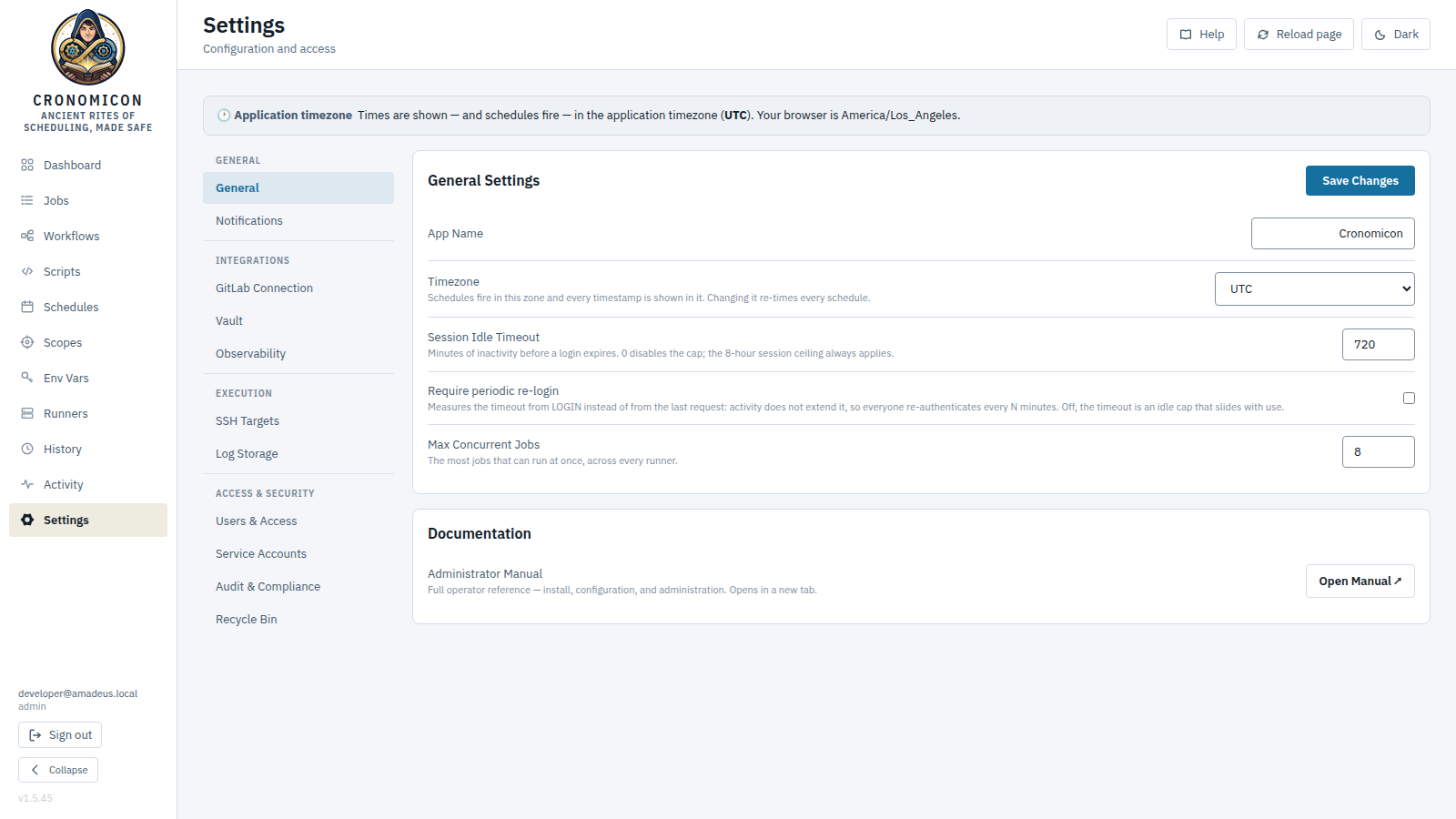

One page with a left rail of nine sections in four groups. Each card loads its current values, edits inline, and saves with a Save Changes button (it flashes “✓ Saved”). Secrets (PATs, tokens, passwords, S3 keys) are write-only — masked on read, sent only when you type a new value. The help text under each field describes what you get rather than the mechanism (“The most jobs that can run at once, across every runner”), and states the facts that matter — the GitLab branch also governs sync reads, the change-log window also prunes sign-in events, and a metrics-path change only takes effect after a restart. Security-relevant help (token validity, secret handling, host-key pinning, audit retention) is deliberately blunt: a friendlier sentence that is wrong is worse than a blunt one that is right.

15 Task Recipes (End-to-End)

Practical, multi-view walkthroughs for the things you'll actually do. Each names the views involved so you can follow along.

15.1 Create and run your first job

Views: Scripts → Scopes → Compose → Jobs → Dashboard → History

1. Decide the origin. The fastest first job is an in-app (cronomicon-source) job — but you must be an Admin (Compose). The Git path is for reviewed, version-controlled definitions.
2. Make sure a Script exists: open Scripts and confirm yours appears with its run type. If empty, commit it to the repo's scripts/ folder and sync first (Scripts are Git-only).
3. Confirm a real Scope: open the Scopes page (or rely on a Git inventory). Note the exact name — a bad scope is caught only at run time.
4. Open Jobs → + Create. Enter a unique Name, pick the Script (executor “auto” derives from it), choose the Scope, optionally a Target host, tick any Schedules (or none for manual-only), leave Enabled on, and Create job.
5. Back in Jobs, click the blue ▶ Run. Accept the default scope or override it (heed the amber warning), pick SSH or Runner, then Run now.
6. Watch it land on the Dashboard — the Running now tile ticks up and a filled mark appears at the playhead on the Score; the Jobs row tints green while running.
7. Inspect the result: expand the job row's recent-runs table, or open History → Executions and expand the run to read its redacted log, exit code and duration.

15.2 Build a multi-step workflow that passes a variable

Views: Jobs/Scripts → Workflow Editor → Workflows → History

1. In the producing job's script, print the value exactly: ::cronomicon-output name=VERSION::1.4.2 (KEY must be env-var-style).
2. Ensure both producing and consuming jobs exist (confirm in Jobs).
3. Author the chain: Workflows → + Create (Admin), add the producing step, then the consuming step, in order.
4. Wire the input in-app: open the consuming step's Advanced ▼ and add an Inputs (A12) row — DEPLOY_VERSION ← step build · output VERSION. (In the Graph editor you can instead drag the producer's handle onto the consumer.) Prefer GitOps? The YAML equivalent is inputs: { DEPLOY_VERSION: { fromStep: build, fromOutput: VERSION } } — commit & sync.
5. Reference $DEPLOY_VERSION in the consuming job's script — the engine injects it at run time (a missing upstream output resolves to empty, deterministically).
6. Trigger from Workflows (▶ Run); expand the row to watch the step chain, then open the run's Execution Timeline.
7. Verify in History → Executions: the consuming child run (carrying a “workflow” chip) shows the value in its log.

15.3 Author and publish a reusable schedule

Views: Schedules → Schedule Builder · or Jobs → Publish to GitLab → History

1. For an in-app reusable schedule: Schedules → Catalog → + New schedule (Admin). Enter a Name and Cron (type or pick a preset); verify the human preview and Next times.
2. Optionally add Env rows — but remember they're plaintext; never put credentials there. Create schedule.
3. Bind jobs/workflows via their scheduleRefs (tick it in Compose, or list it in Git YAML). Confirm the binding in Schedules → Inventory and a future fire in Upcoming.
4. For a Git-published schedule on a specific job instead: Jobs → + Publish to GitLab, set Schedule mode = Scheduled, add named cron entries, review the YAML and resolved base_sha, then Publish → Confirm & Publish.
5. On 201 the definition appears in Jobs after the next sync (≤ 5 min, instant via webhook). On 412, click “Reload latest base_sha & retry on top.”
6. Review the push in History → Schedule Pushes. Remember: editing an cronomicon schedule's cron later propagates to every referencer — check the Used-by count first.

15.4 Connect a GitLab repo and sync definitions

Views: Settings → GitLab Connection · GitLab · Scripts · History → Git Sync

1. Create the job-definitions repo with jobs/ scripts/ schedules/ workflows/ inventory/ directories. Add apiVersion: cronomicon.io/v1 and a kind: to every YAML.
2. Create a bot PAT (repo read/write). In Settings → GitLab Connection enter Repository URL, Bot PAT, Bot name/email, Working branch, then Save.
3. Copy the read-only Webhook URL (always <host>/api/v1/webhooks/gitlab). If the secret isn't env-pinned, Rotate secret and copy it.
4. In GitLab → Settings → Webhooks, paste the URL + secret token and enable Push events. Back in Cronomicon, toggle Webhook Enabled on, tick push, Save.
5. Trigger the first sync: push a commit, or click ↻ Git Pull on Scripts, or ↻ Sync now on History → Git Sync.
6. Confirm a green Pulled row with counts. A warning (partial) means some files had validation errors — open Details, fix the YAML, re-sync. A red failure means clone/auth failed (check PAT + URL).
7. Recommended: add the cronomicon validate CI template so broken YAML is rejected at merge time. See GitOps & GitLab Sync (Administrator Manual).

15.5 Onboard a new runner agent

Views: Runners · target host

1. Choose the image: slim (bash/perl/powershell/python over SSH or an isolated segment) or fat (ansible/terraform local toolchain).
2. In Runners → Register New Runner, Mint a single-use token (optionally labeled with the runner's name) and Reveal/Copy it immediately (shown only once).
3. Install on the host (systemd): sudo ./runner-install.sh -s https://cronomicon.example.com -t <token> -n runner-dc1-01 -c bash,perl,powershell — or run the container (see Runner Fleet Management in the Administrator Manual).
4. Provision the runner's own SSH keys and a known_hosts file it can read — the agent refuses to connect to a target with no known_hosts (no trust-on-first-use for runner targets).
5. Keep --name stable and the identity file on durable storage so restarts resume the same registry row.
6. Verify with systemctl status / journalctl -u cronomicon-runner, then click Reload page — it should appear Online with its capability chips.
7. To retire later: Drain, then Deregister and delete the identity file. (Regenerating the token does not revoke it.)

15.6 Manage secrets safely

Views: Env Vars → Secrets · SSH Keys · Settings → SSH Targets · History → Change Log

1. Confirm a KEK is configured (CRONOMICON_KEK_FILE) — without it, stored-secret operations fail with “no KEK configured.”
2. Env Vars → Secrets → + Add Secret. Enter a Key (respect the A13 rule — unique per scope across vars and secrets), keep Source = Stored, pick a Scope, paste the value (whole PEM/OpenSSH keys preserved), Save.
3. To use a key for SSH you have two coequal options. (a) First-class credential: add it in Env Vars → SSH Keys (paste the unencrypted private key — it validates on save and returns a copyable public key + SHA256 fingerprint), then attach it to the host/bastion with the credential picker (writes authCredentialId) in Settings → SSH Targets. (b) Key by name: set the host's Auth Key (authKeyEnvVar) to a stored secret's name — the permanent path for runner-executed and inventory-imported hosts, which resolve keys by name locally. Either way the key must be unencrypted (no passphrase).
4. To view a stored value later, expand the row → Reveal — every reveal writes a Change Log entry. Vault secrets can't be revealed in Cronomicon.
5. Keep real secrets out of schedule env and out of Git. Note redaction skips values under 5 chars and common literals (see Secrets & Security, Administrator Manual).
6. Optionally Migrate to Vault once Vault is wired — one-way; deletes the local ciphertext.

15.7 Run a job over a bastion (jump host)

Views: Settings → SSH Targets · Jobs

1. In Settings → SSH Targets → Bastion Configuration, add a bastion (Name, Address, Port, User, Auth Key). Click Test connection → Verified.
2. Edit the target host and set its Connect Via to the bastion's name.
3. Test the host — Cronomicon dials the bastion, tunnels to the target, and verifies the target's host key over the tunnel.
4. Trigger/schedule the job against that host or its scope. (Bastion-hop host-key pinning is a future refinement; the target hop is fully verified today.)

15.8 Make one job run when another one finishes

Views: Compose → Schedules → Reactions → History

1. Decide which definition runs — a reaction is authored on the reacting side, not on the one being watched. Open it in Compose (or the Workflow Editor) in edit mode; a definition that has not been saved yet has nothing to attach a reaction to, and the editor says so instead of collecting input it would throw away.
2. In Reactions (run this job when another one finishes), click + Add reaction and fill four fields: a Name for the entry, When this finishes (the watched job or workflow), With outcome (success · failure · stopped · any — a run that ended with warnings counts as success), and a Delay (s) if the downstream needs breathing room.
3. Optionally set Min interval (s) to cap how often this one reaction may fire — useful when the upstream is on a short cron. Events it blocks are dropped, not queued. Leave incl. workflow steps off unless you really do want the reaction to fire when the watched job runs as a step inside a workflow.
4. Save. The definition and its reactions are saved in two steps, so if the second fails you are told plainly that the job was saved but its reactions were not — reopen and retry rather than assuming it took.
5. Confirm the edge in Schedules → Reactions. It will not appear in Upcoming: a reaction has no clock, so there is no instant to project.
6. Trigger the upstream (or wait for its own schedule). Within about half a minute the downstream run appears in History with Trigger = Reaction and a “Triggered by run:” link back to the run that caused it. Remember it fires on the next matching completion — never retroactively on one that already happened.
7. For a Git-defined job or workflow, do all of this in its YAML instead, under spec.reactions (onKind, onName, onOutcome, and onSource when the watched definition lives in the other namespace). The in-app editor refuses, because a sync replaces that definition's reactions wholesale and an in-app row would vanish at the next one.

16 Troubleshooting & FAQ

The issues testers hit most, grouped by area. Click any question to expand the cause and fix.

Authentication & access

Jobs that don't run

Git sync & publishing

Secrets & runners

General

17 Glossary

Consolidated definitions of the terms used throughout Cronomicon and this manual.

Reaction

A standing instruction on one job or workflow to run when another one finishes with a chosen outcome — the fourth way something can start, and the only one with no clock. Edge-triggered: it never waits or accumulates, and a new one fires on the next matching completion rather than catching up on history (§9.3).

Disposition

What an operator says a stopped run meant — Stopped, Failed, Success or Warning. The run takes that status, while stopped by independently records that a person ended it, so a run can read Success and still show a Stopped marker (§6.6).

A12 inter-job data passing

The mechanism for a workflow step to consume an upstream step's output. The producer prints ::cronomicon-output name=KEY::VALUE on stdout; the consumer declares inputs: { VAR: { fromStep, fromOutput } } (authored per-step in the Workflow Editor — an Inputs row or an on-canvas handle drag — or in Git YAML). KEY must be env-var-style; a missing output resolves to empty, deterministically.

A13 unification rule

Variables and secrets share one key namespace per scope: a KEY may exist only once across both, in any order. Violations return 409 with an “(A13)” message.

Activity feed

The reverse-chronological event stream (/activity) of run starts/ends, config changes, pushes, Git syncs and SSH tests, color-coded by outcome.

Agency

An operator-managed network-isolation zone. A scope binds to the one agency its hosts live in; each runner is assigned to one or more agencies (operator-assigned, never self-declared by the agent). Dispatch is hard-isolated: a job dispatches only to a runner in its agency, and an untagged job only to an untagged runner (the general pool). Operator-owned and never synced — a binding survives Git re-sync. Catalog + per-scope binding live on the Scopes page; runner membership on Runners.

Cronomicon-source

A definition authored in-app (no Git round-trip) and stored in the database. Editable/deletable in the UI by admins; never touched by Git sync.

Ansible inventory / projection

An inventory/*.ini (git-synced or authored in-app) attached to a scope. The raw inventory ships unchanged to ansible-playbook -i and is authoritative for execution; a parsed projection (groups, [group:children], [group:vars], host_vars) is surfaced read-only as advisory — not authoritative, and degrades loudly to “preview unavailable” on the first out-of-subset construct. Inline secret values are rejected fail-closed at ingest (env-var-NAME indirection is the remediation); inventory hosts are imported into ssh_hosts on sync. See §11.

apiVersion / kind

Required top-level fields on every Cronomicon YAML. apiVersion must be cronomicon.io/v1; kind is one of Job, Script, Schedule, Playbook, Terraform, Workflow, InventorySidecar. Unknown values are line-numbered errors.

Application timezone / effective zone

The one zone that governs both cron scheduling and UI display: the stored Settings → General → Timezone if set and loadable, else the host TZ. The scheduler evaluates cron in it and the SPA renders every timestamp in it, so “2 a.m.” means the same thing in the schedule editor, Upcoming, History and reality. Surfaced read-only as appTimezone on GET /settings/general; an invalid zone is rejected with 422, an unloadable stored value degrades to the host zone with a warning. (Without it, cron would fire in the container OS zone and each viewer would see their own browser zone.)

Apprise

A URL/DSN-based notification fan-out gateway delivering one event to many services (email, Slack, Discord). Configured in Settings → Notifications or via CRONOMICON_APPRISE_URL.

authKeyEnvVar

The name of the env var or stored secret holding the unencrypted SSH private key for a host or bastion. The server ships only this name to runners; key bytes never cross the wire. Coequal with authCredentialId (the first-class SSH key credential) and fully supported: the name path is permanent for runner-executed and inventory-imported hosts, which resolve keys by name locally and never receive credential material.

Bastion (jump host / ProxyJump)

An intermediate SSH host named in a target's “via” field. Cronomicon dials the bastion, tunnels to the target through it, and verifies the target's host key over the tunnel.

base_sha / If-Match

The Git commit a publish edit was based on, sent as an If-Match precondition. If the file changed since then, the server returns 412 with a diff for rebase-and-retry.

bash floor

A scope's supported run types always include bash, which can't be removed — preventing an empty type set.

Body-lint

A sync-time scan of each Script body (computed on the same read as the content hash) that surfaces advisory findings — crlf, non_utf8, no_shebang, shebang_mismatch, oversized — as warning chips in the Scripts catalog. Purely advisory: never blocks a sync, drops a script, or enters the content hash. See §8.3.

Bootstrap admin

A first-run env var (CRONOMICON_BOOTSTRAP_ADMIN_GROUP) granting admin to any member of a named AD group regardless of grants, so the first admin can seed real access grants. Logs a loud warning; remove afterward. Trusted-header mode only — the OIDC login path never applies it; lockout recovery on any deployment is the offline cronomicon grant-admin subcommand (see the Administrator Manual, §8.7).

Calendar (working calendar)

A named set of wall-clock dates — holidays, a change freeze, month-end — each optionally labelled, authored under Schedules → Calendars and matched in the application timezone, never UTC. A schedule entry binds calendars in two roles: skipCalendars vetoes a fire landing on one of their days, onlyCalendars makes their days the only days it may fire; both together are legal and skip wins. A calendar marked global is skipped by every schedule at once (the change-freeze case) and may never be used in the run-only role. Gates scheduled fires only — never Run now, a workflow step, or a webhook. Suppressed fires are recorded as skipped runs, filterable in History by calendar. Cronomicon ships no dates; a calendar that runs out of days silently stops suppressing. See §9.2.

Change Log

The audited record of in-app configuration changes (Timestamp, User, Category, Action, Target, Details). Viewed in History → Change Log; CSV-exportable; retention is the Change Log window under Settings → Audit & Compliance (default 1 year).

Compose capability

An Admin-only feature flag (GET /capabilities → compose) gating all in-app authoring (Compose, Workflow Editor, Schedule Builder). One of the role gates enforced server-side via requirePerm — alongside Manage env vars, Configure app, Manage roles and Publish. The run-lifecycle actions (trigger/kill/pause/resume, workflow trigger/pause/cancel) are role-gated too, via triggerJobs/killJobs on the run's scope.

Concurrency cap (maxConcurrent)

The global limit on simultaneous queued+running runs (Settings → General; scheduler falls back to 5 when unset). A cron fire over the cap is skipped; a manual run is rejected with 409.

concurrency_key / concurrency_policy

A grouping key (default source/jobname) and a policy — Allow (default), Forbid, or Skip — gating concurrent runs. A Forbid-suppressed fire is recorded once per episode as a skipped run.

Control plane

Cronomicon's role: it schedules and tracks jobs but does not execute them itself. With no runner registered (and the SSH executor off), runs queue but never execute — expected, not an outage.

CSRF double-submit

State-changing operator requests must echo the cronomicon_csrf cookie in an X-CSRF-Token header; a mismatch is rejected with 403. Runner bearer requests are exempt.

DEK (Data Encryption Key)

A random per-secret key that encrypts the secret value (AES-256-GCM); stored only in KEK-wrapped form. The heart of the envelope-encryption scheme.

Deregister

Permanent removal of a runner from the registry, revoking its API key immediately. Done manually or by the reaper after the deregister window (default 14 days offline).

Developer login bypass

A non-production button (CRONOMICON_DEV_AUTH=true) that mints a synthetic admin session with no scope restrictions, for local UI preview. Returns 404 in production.

Dirty schema

A half-applied (failed) migration. /readyz returns 503 and the container stays unhealthy. Recovery is restore-from-snapshot + image rollback + fix-forward — never migrate down.

Drain

Graceful retirement of a runner: it stops claiming new work, finishes active runs, then goes offline (immediately if it had none). Server-side deadline defaults to 1 hour; systemd's TimeoutStopSec=300 is the separate SIGTERM grace window.

Dual-source model

Each Job/Workflow/Schedule/Scope can live in Git (version-controlled, read-only over the API, prunable) or be authored in-app (its own source of truth, never pruned). Both run through the same engine, keyed by (source, name).

Envelope encryption

The scheme where a value is encrypted by a per-secret DEK and the DEK is encrypted by the KEK, so the database never holds plaintext or an unwrapped key.

Event kind

The category tag on an Activity card: run-start, run-end, config, push, gitsync, ssh-test.

Executor

The attribute deciding where a run executes: ssh (the in-app SSH executor) or runner (a distributed agent). “Auto” means no fixed per-job executor; ansible/terraform are runner-only.

Folder browsing

Sub-folders in the GitOps repo (under jobs/, scripts/, schedules/, workflows/) rendered as a navigable breadcrumb + drill-in tree in each catalog; searching flattens to full-path results. A definition's folder location (its file path) is separate from its identity (metadata.name/id), so moving it never changes references or routes. See §8.1.

Forward-only migrations

Cronomicon applies up-migrations automatically on every boot. Down-migrations are dev/test only; production recovery from a bad migration is restore-from-backup.

GitOps pruning

During sync, any source='git' row not seen in the repo this pass is deleted — how removing a YAML file in Git removes the definition. Cronomicon-source rows are never pruned.

Honest View / Recent Logins

The Settings → Users & Access list of users who have actually signed in at least once. Cronomicon never enumerates the directory.

Identity file

A 0600 JSON file ({id, apiKey}) a runner writes on first registration and reads on restart to resume its registry row instead of orphaning it. Default /var/lib/cronomicon-runner/identity.json.

Inventory mode (cronomicon vs local)

Per-runner. cronomicon (default): the server resolves scope hosts and ships fully-resolved targets. local: the manifest carries only the scope name; the agent resolves it against its own inventory (for isolated segments).

Job-definitions repo

The GitLab repository that is the source of truth for all job/script/schedule/workflow/inventory definitions. Cronomicon keeps a local clone and re-parses it on each sync.

Job-level env

A plaintext env map declared on a Job (Composer → Environment (job-level)) and injected into every run, independent of the firing schedule. It is the base layer of the effective run env: job-level env → firing schedule's env → per-run override (later wins). Plaintext, not redacted — keep credentials in the secrets system.

KEK (Key Encryption Key)

A 32-byte base64 master key that envelope-encrypts stored secrets and the SMTP password. Supplied via CRONOMICON_KEK_FILE. Back it up separately from the DB backup — losing it makes stored secrets unrecoverable.

Manifest

The execution payload a runner fetches after claiming a run: trace id, job, run type, interpreter+body, an env snapshot (no secrets), and target references with authKeyEnvVar names (never key bytes).

Orphan

A script or schedule that no job or workflow references (Used-by 0). An unreferenced schedule never fires.

Per-run override (override envelope)

Ad-hoc scope/executor/targetHosts/env supplied in the Run dialog for a single manual run. The effective values land in the run's own columns; what was overridden is also recorded as an audit envelope (runs.override_json) and shown in History as “Ad-hoc overrides (this run)”. Override env is plaintext but is fed to the per-run log redactor. See §6.5.

Per-instance Pause

The one workflow field the UI can change on any (including Git) workflow — labelled Pause / Resume, Enable / Disable before it. Stops scheduled firing and blocks manual triggers (409 workflow_disabled). The documented exception to Git-canonicality.

Reaper

A server sweep (~60s) that marks runners offline after CRONOMICON_RUNNER_OFFLINE_AFTER (default 5m) and deregisters runners offline beyond CRONOMICON_RUNNER_DEREGISTER_AFTER (default 14d). A separate workflow orphan reaper (startup + every 10 min) reclaims workflows orphaned by a restart or running past 24h to failure with reason orchestrator_lost, including their queued/running child runs.

Redacted log / [REDACTED]

Run output with scope env values, decrypted stored-secret values, and stored SSH-credential key material masked as [REDACTED] at server-side ingest (multi-line PEM keys are masked line by line). No UI toggle reveals the raw log. Values under 5 chars, common literals, Vault values and schedule env are not masked.

Reference binding (run injection)

A declaration on a Job or Script naming the Secrets, Variables and SSH keys it consumes, by their derived reference (CRONOMICON_SECRET_/VAR/KEY_<name>). At dispatch Cronomicon resolves and injects only the declared set into the run (stored or Vault-sourced), masked in logs and never persisted; a missing/out-of-scope reference fails the run (fail-closed). Edited on the Job/Script detail panels (Manage env vars, scope-checked); the injected names are shown read-only on the run detail. Runner runs also materialize CRONOMICON_KEY_* to a 0600 tmpfs path; a run that binds a key and resolves to the in-app SSH executor is refused (422 key_binding_requires_runner). See §11.6.

Registration token (crn_reg_*)

A single-use bearer token (24h expiry), minted per install from the Runners view; it dies on its first successful registration and records which runner consumed it. Stored only as a SHA-256 hash; plaintext shown once at mint. Revoking an unused token never affects registered runners.

Reveal

The explicit, audited unmask of a stored secret. A POST, because every reveal writes a Change Log entry. Vault secrets can't be revealed.

Resync

Re-aligning the server’s view of a runner with its current config in place — same id, same API key, no deregistration. Automatic (drift is detected on the first poll after a restart); the Runners-view Resync row action forces it immediately after changing declared config (capabilities, inventory, maxConcurrent…) or upgrading the agent binary.

Role

A named permission template, stored as data. The four built-ins — Admin, Approver, Operator, Viewer — ship by default and cannot be deleted; admins can create custom roles in the Roles card. A role reaches you only through an access grant naming it; a user can hold several. Display precedence admin > approver > operator > viewer.

Run / run lifecycle

A single execution of a job, with a status, trace ID, timestamps, duration and exit code. Both executors share one lifecycle (trigger → queued → running → terminal); a run row's executor column keeps them from cross-claiming.

Run input

A value declared on a Job — or, on a Script and inherited by jobs built from it — (name, label, required, default, options) that surfaces as a fillable field — text or a <select> on options — in the ad-hoc Run dialog. Answers ride the per-run env-override path. Enforcement is per job: under Warn (the default) an empty required input disables the Run button until you tick the Run without it/them escape and the server accepts it regardless; under Block the run is refused 422 prompt_required with no override, for the Run dialog and the API alike (not yet for schedule/workflow fires). the unfilled name is recorded under promptWarnings in the run's override envelope for History, alongside promptAnswers (where each value came from) and promptAcknowledged. Distinct from the inferred Script variables heuristic, which is only a Composer seed + drift lint and never part of the run path. See §6.

Runner / runner agent

The external cronomicon-runner binary on a separate host that registers, long-polls for executor='runner' runs, executes them and streams logs back. Required for ansible/terraform and isolated targets; outbound HTTP only.

Runner API key (crn_run_*)

The long-lived (365-day) per-runner key minted at registration and persisted to the identity file. Used for all later polls/manifests/logs.

runner_lost

The reason stamped on a run whose runner was reaped offline mid-run; the run is finalized as failure with an amber “Lost” badge.

Schedule (definition)

A first-class reusable named cron (+ optional plaintext env) referenced by jobs/workflows via scheduleRefs. Source git or cronomicon. Editing an cronomicon schedule propagates the new cron to every referencer.

Schedule Push

A commit published to GitLab from the publish builder, audited in History → Schedule Pushes with file, schedule change, SHA and status.

scheduleRefs / script_ref

scheduleRefs lists first-class Schedules a job/workflow binds to; script_ref points a Job at a reusable Script by name (including the extension, and the full scripts/-relative path for a sub-folder raw script). A dangling ref is a hard, line-numbered sync error that drops that definition.

Script variables

The environment variables a Script's body references, extracted at sync time per run type (bash/sh, perl, powershell, python; ansible/terraform not yet analyzed). Shown read-only as status chips — ✓ provided, ● required & missing, ○ optional (with default) — in Scripts, the Run dialog and the Composer (advisory; the scope's Env Vars are not auto-injected). See §8.4.

Scope

A named target environment = a host list plus its supported run types, optionally an Ansible inventory and a bound agency. Managed on its own top-level Scopes page (§11). Capability is advisory; a scope rename does not cascade; a job's scope is validated only at run time.

Score

The Dashboard's single timeline, 24 hours back and 12 hours ahead: one mark per run — filled if it ran, hollow if it is scheduled — with the stem's height showing duration on a log scale and a gold playhead at now. Past runs, running runs and upcoming fires are one dataset on one axis rather than separate lists split by tense. Runs within about 18½ minutes of each other share one mark, drawn as a chord — one pip per run, each in its own outcome's colour. See §5.2.

Chord (Score)

How the Score draws two or more runs close enough together to share a mark: a stack of pips, one per run, severity-sorted with the worst lowest, on one shared stem sized by the longest run. Each pip keeps its own outcome's colour, so a mixed cluster is legible rather than painted the worst colour throughout. Capped at 8 with a +k overflow that folds from the mildest end, so an overflow can never hide a failure.

Current status (Dashboard)

The section beneath the Score carrying the detail behind the verdict: Up next names the next three scheduled runs, and Recent errors folds the last 24 hours of failures and warnings per job (appearing only when there are any). See §5.3.

Verdict strip (Dashboard)

The one-line answer to “is everything okay?” at the top of the Dashboard, above the stat tiles: a quiet “All 14 jobs healthy.” when nothing is wrong, a red, clickable “N jobs need attention.” when something is (it scrolls to Recent errors), or an invitation to create the first job. Its counts come from the server's exact totals, not the page of runs the browser fetched. The attention state can be dismissed (✕), which silences only the situation you acknowledged — it returns as soon as anything new fails or warns, and never hides Recent errors. See §5.3.

Degraded (runner)

A runner whose heartbeat is more than two minutes old, or which registered and never polled. Derived at read time, not stored — the stored status is the runner's lifecycle, and this is a freshness reading over it, so only online degrades. It names the window in which a dead runner would otherwise still read Online, since offline is only declared after the reaper's 5-minute threshold. A degraded runner counts as reachable: its recovery actions stay offered. See §13.1.

Source-of-truth rule

Git is truth for definitions; the database is truth for state and operator config. When they overlap, Git wins on read. The one exception is the per-instance workflow Pause toggle.

SSH executor (in-app)

The opt-in in-process worker pool that runs bash/perl/powershell/python over SSH, direct or via a bastion. Off by default; enabled with CRONOMICON_SSH_EXECUTOR_ENABLED; default concurrency 4.

SSH key credential

A first-class, typed credential (the ssh_credentials entity) for the private keys Cronomicon uses for automated SSH — envelope-encrypted with the same scheme as stored secrets, and validated on save (deriving key type, SHA256 fingerprint and a copyable authorized_keys public line; passphrase-protected keys are rejected). Managed in Env Vars → SSH Keys and attached to a host/bastion with a picker that writes authCredentialId. Coequal with — not a replacement for — the authKeyEnvVar name path. Private material is never returned by the API and is added to the log-redaction dictionary.

Stored / Vault secret

Stored: value encrypted at rest via envelope encryption; revealable (audited). Vault: only a path#field reference is stored; the value lives in HashiCorp Vault, fetched live using the configured Vault auth method (AppRole or a token), and cannot be revealed in Cronomicon.

Target host (job pin)

The optional single host a job definition pins itself to (targetHost, set in Compose). Left empty, the run fans out across every host in its scope. The pin is honored on all four run paths — manual trigger, cron fire, workflow step and ansible run. It wins outright over a per-run host subset, and folds into an ansible --limit unless a raw passthrough is supplied. A pin containing an ansible pattern metacharacter is refused (422 at authoring and trigger, 409 at run) rather than dropped, since dropping it would silently widen the run.

Target group / --limit

Inventory targeting in the Run dialog. targetGroups[] selects parsed inventory groups — one resolver expands members for the SSH executor and passes the group NAMES to a runner as ansible --limit, so both executors hit the identical set (no drift). ansibleLimit is a raw --limit passthrough for patterns the projection can't model (ansible/runner only; 422 on the SSH executor; lives in the dialog’s Advanced section). Group targeting is rejected when the scope's projection is unavailable. See §11.

Trace ID

A backend-minted UUIDv7 uniquely identifying a run or workflow run, shown in middle-ellipsis form (3c4d-74f7…d5474); full value on hover and in the drill-down.

Trusted Header SSO

The default auth mode: a reverse proxy runs forward-auth against your identity provider and injects Remote-User/-Email/-Name/-Groups headers Cronomicon trusts per request. No app session cookie.

CRONOMICON_TRUSTED_PROXIES

The CIDR/IP allowlist of the reverse-proxy peer whose Remote-* headers Cronomicon will trust — the entire trusted-header model. Fail-closed: empty ⇒ won't boot. Must be the IP Cronomicon sees as the connecting peer.

Used by / blast radius

The reverse index on Scripts and Schedules showing how many (and which) jobs/workflows reference them, so you can gauge the impact of a change or delete.

VACUUM INTO

The SQLite command used for nightly backups; a consistent, fully-openable snapshot taken without locking out live traffic (WAL mode), optionally uploaded to S3.

18 Appendices

Appendix A — Cron reference

5-field order: minute(0-59) hour(0-23) day-of-month(1-31) month(1-12) day-of-week(0-6, 0=Sun). The backend also accepts 6-field seconds-first cron (sec min hour dom month dow). Supported tokens: *, */n, a-b, single values, comma lists. All cron evaluates in the effective application timezone — the stored Timezone setting if set and loadable, else the host TZ — the same zone the UI renders every timestamp in (GET /settings/general → appTimezone).

Appendix B — API & endpoint map (for reference)

Unauthenticated surface: /healthz, /readyz, /version, /metrics (internal-only), /auth/providers — plus (oidc mode) /login & /callback, and the token-gated /webhooks/gitlab.

Appendix C — Key environment variables

Precedence: an CRONOMICON_* env var, when set, overrides the matching DB-backed Setting. Most settings resolve once at startup. Build-time args (VERSION, COMMIT, BUILD_DATE) are surfaced at /version.

Appendix D — Status & color vocabulary

Status reasons you may see next to a failed run: killed (an operator stop, left unclassified), runner_lost (runner reaped mid-run → amber “Lost” badge), executor_lost (an in-app SSH run left running by a crash/restart, reconciled by the startup sweep or age reaper — shows a plain Failed badge with the reason, not the amber Lost badge), drain_timeout (force-killed at drain deadline), vault_unreachable, log_stream_lost, cronomicon: job timed out, and unbound_references (a scheduled run that needed a department-owned credential but had no scope — see below).

A run stuck on queued tells you why. A queued run is waiting for a runner that can take it, and several different things can prevent that — the run records which one in its status reason, so you can hand the sentence to whoever manages the fleet instead of describing a symptom:

• no runner is online — nothing is up at all.
• no online runner can run bash / ansible jobs — nothing online has that toolchain.
• no online runner belongs to <department> — your department's runner is down.
• no eligible runner is flagged for secret injection — the job uses stored credentials and no runner in your department is permitted to receive them.
• no eligible runner advertises <capability> — the job needs something (an Ansible version, a Vault password file, a collection) the available runners don't have.
• only a runner with no agencies can claim it — this one you can fix yourself: the run has no scope. Re-run it and pick a scope.

The reason is recorded when the run is queued and kept afterwards, so it still explains a run you look at the next morning. It is advisory only — if a suitable runner comes online a moment later, the run starts normally.

“This job consumes department-owned credentials — bind a scope to run it”. The job uses a Secret, Variable or key that belongs to a department, and you started it without a scope. A run with no scope belongs to no department, so that credential resolves for nobody — and no department's runner could pick the run up either. Open Targets in the Run dialog and choose a scope. Jobs that use only global credentials are unaffected and still run without one.
